Starter Motor: Service and Repair

REMOVAL







1. Remove the air cleaner outlet tube.

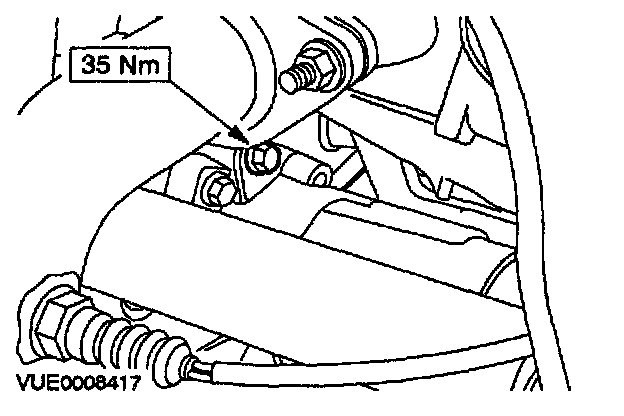

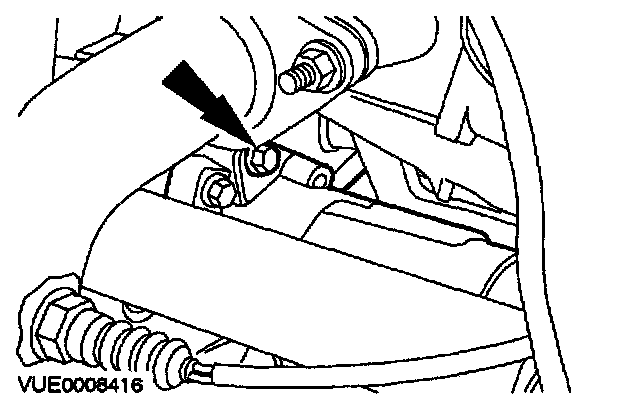

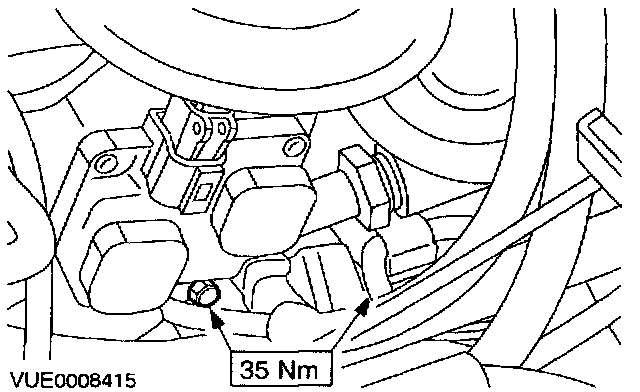

2. Remove the starter motor bolts.
3. Raise and support the vehicle. For additional information, refer to Maintenance/Service and Repair.

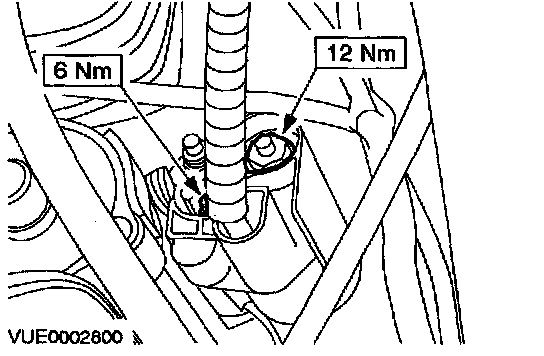

4. Disconnect the starter motor electrical connector.







5. Detach the starter motor.

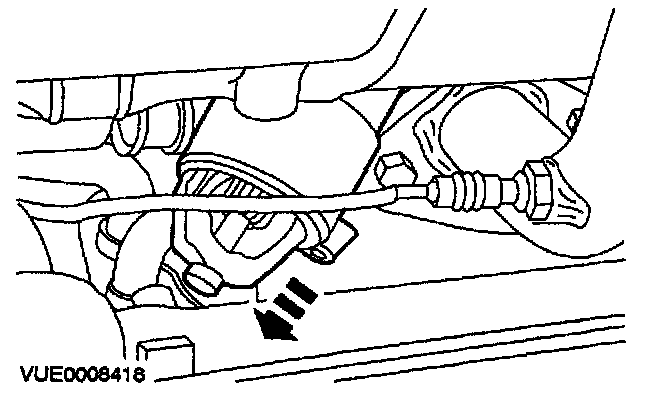

6. Remove the starter motor.

INSTALLATION

















1. To install, reverse the removal procedure.
