Knock Sensor: Service and Repair

REMOVAL
1. Remove the lower intake manifold. For additional information, refer to Engine.

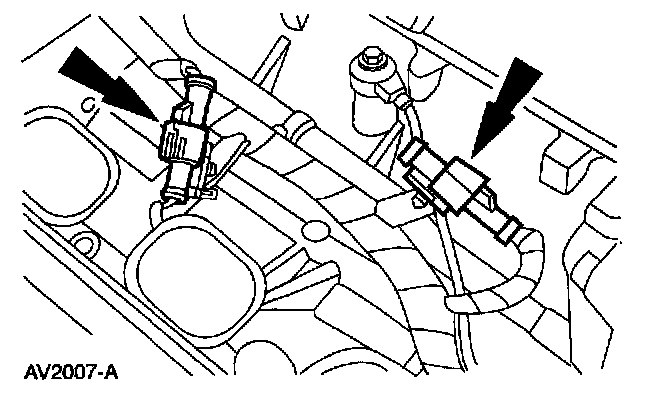

2. Disconnect the connectors.

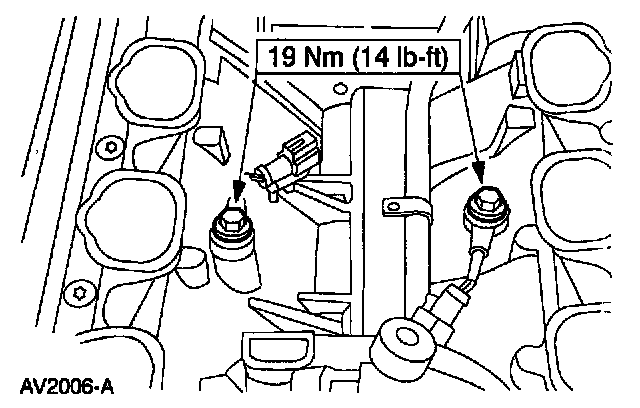

3. Remove the bolts and the knock sensors.

INSTALLATION
1. To install, reverse the removal procedure.
