Cylinder Head Assembly

ENGINE GENERAL SPECIFICATIONS

TIGHTENING SPECIFICATIONS

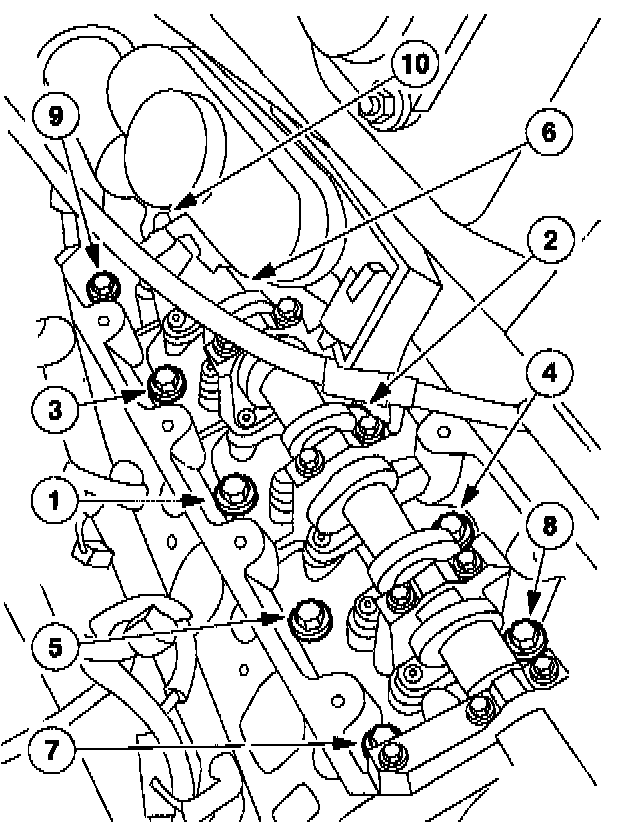

LH Cylinder Head





Tighten the bolts in sequence and six stages shown.
- Stage 1: Tighten to 40 Nm (30 ft. lbs.).
- Stage 2: Tighten an additional 90 degrees.
- Stage 3: Loosen the bolts a minimum of one full turn.
- Stage 4: Tighten to 40 Nm (30 ft. lbs.).
- Stage 5: Tighten an additional 90 degrees.
- GStage 6: Tighten an additional 90 degrees.

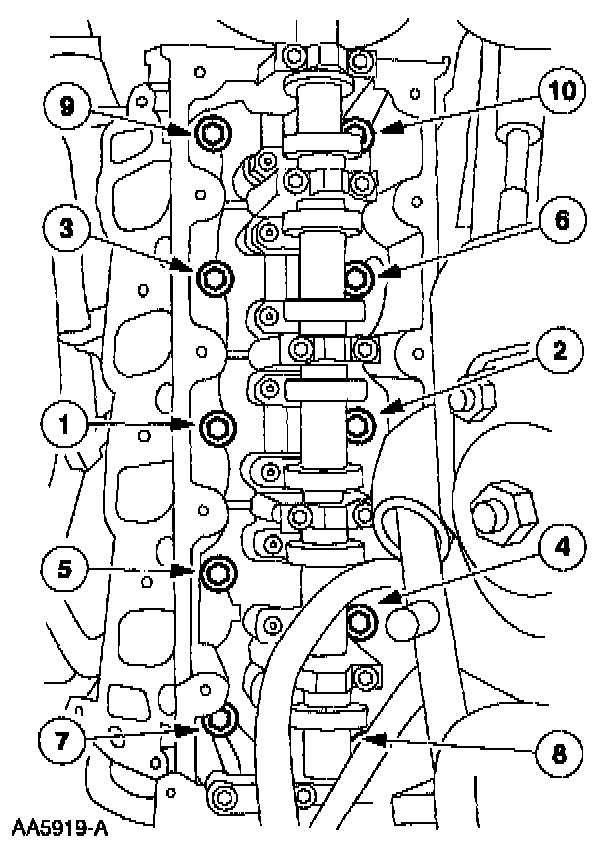

RH Cylinder Head





Tighten the bolts in sequence and six stages shown.
- Stage 1: Tighten to 40 Nm (30 ft. lbs.).
- Stage 2: Tighten an additional 90 degrees.
- Stage 3: Loosen the bolts a minimum of one full turn.
- Stage 4: Tighten to 40 Nm (30 ft. lbs.).
- Stage 5: Tighten an additional 90 degrees.
- Stage 6: Tighten an additional 90 degrees.
