Seat Track: Service and Repair

REMOVAL
1. Remove the front seat. For additional information, refer to Front Power Seat.

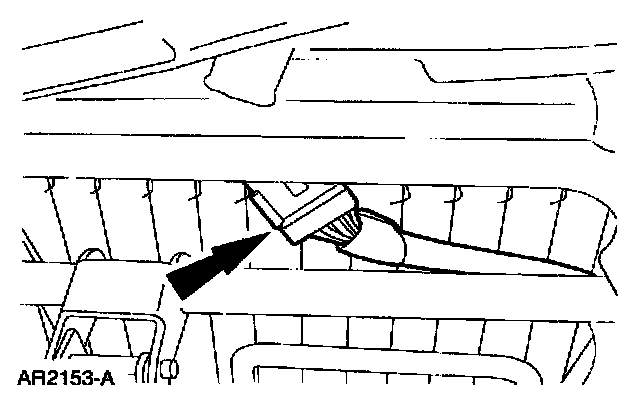

2. Disconnect the electrical connector.

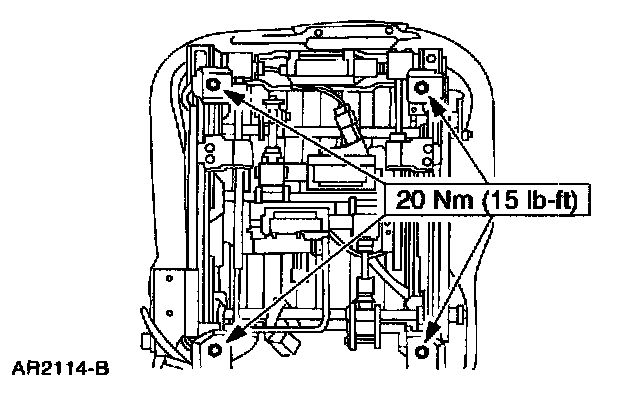

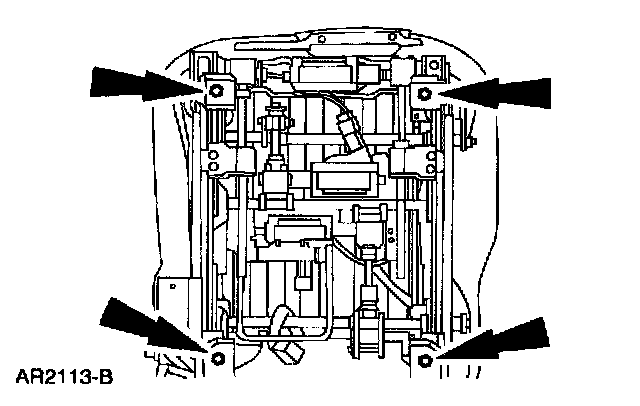

3. Remove the seat track bolts.

INSTALLATION







1. To install, reverse the removal procedure.
