Driver Side

REMOVAL

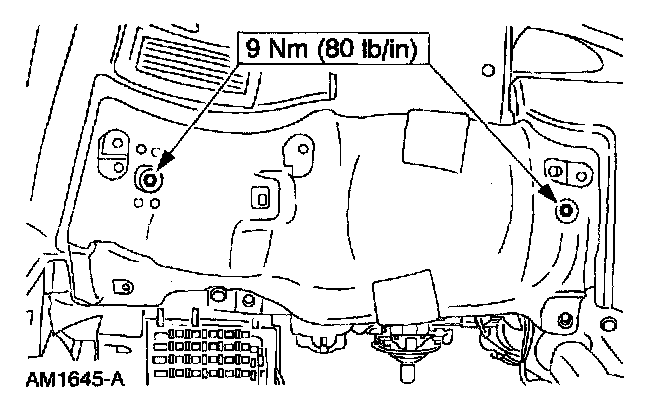

1. Remove the instrument panel steering column cover bolts.

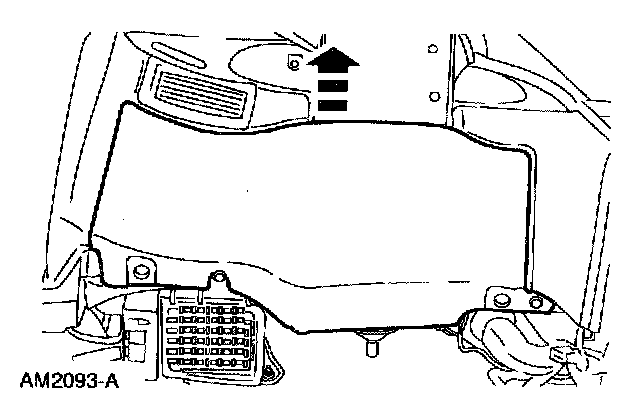

2. Unsnap and remove the instrument panel steering column cover.

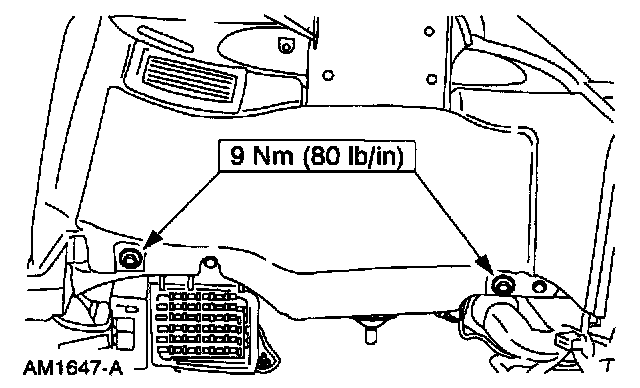

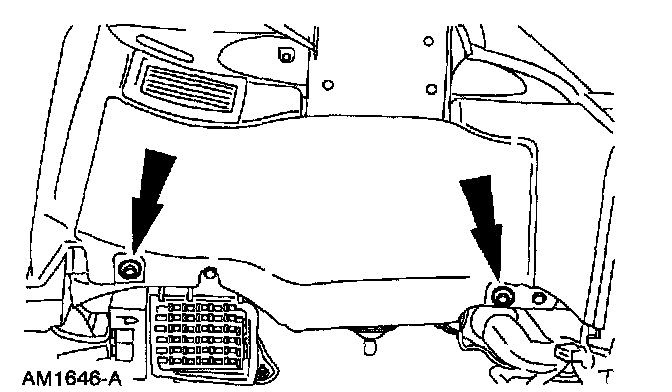

3. Remove the bolts and the steering column reinforcement.

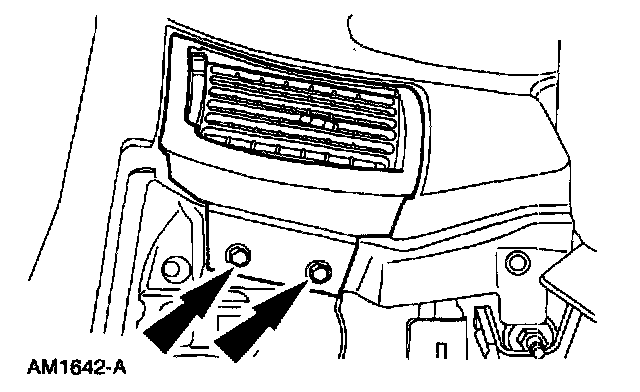

4. Remove the screws.

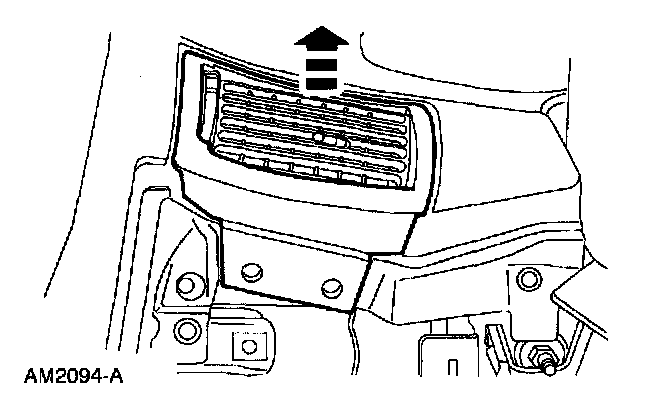

5. Remove the register.

INSTALLATION












1. To install, reverse the removal procedure.
