Driver Side

REMOVAL
1. Remove the instrument cluster finish panel. Refer to Console.

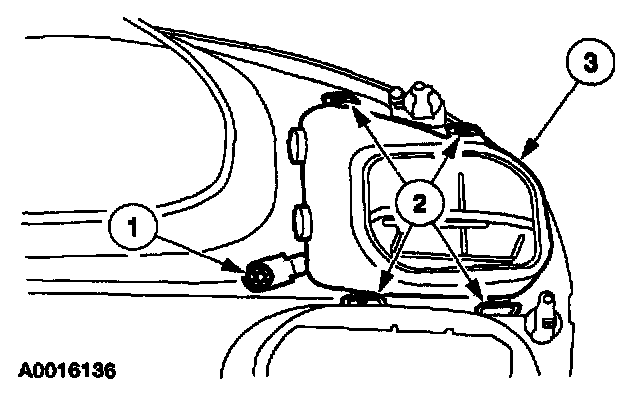

2. Remove the driver side register
1. Remove the screw.
2. Disengage the tabs.
3. Remove the driver side register.

INSTALLATION
1. To install, reverse the removal procedure.
