Floor Console

REMOVAL

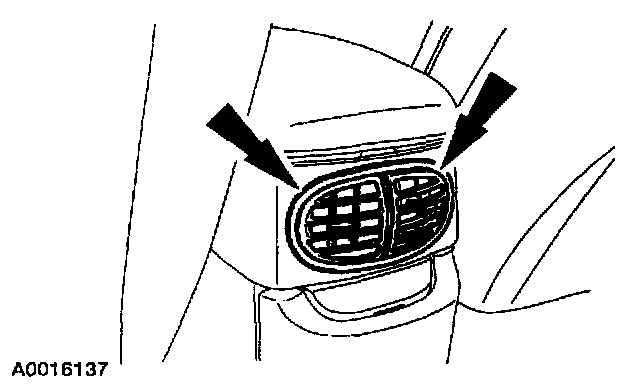

1. Carefully pry out the inside edge of the register barrels. Remove the register barrels.

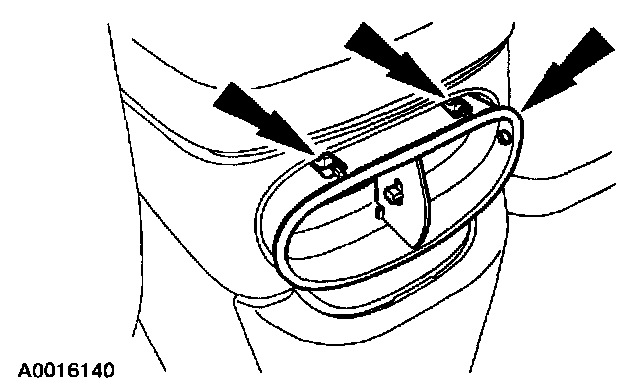

2. Disengage the four tabs. Remove the register housing.

INSTALLATION
1. To install, reverse the removal procedure.
