Home
>>
Ford
>>
2001
>>
Escort ZX2 L4-2.0L DOHC VIN 3
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Exhaust System

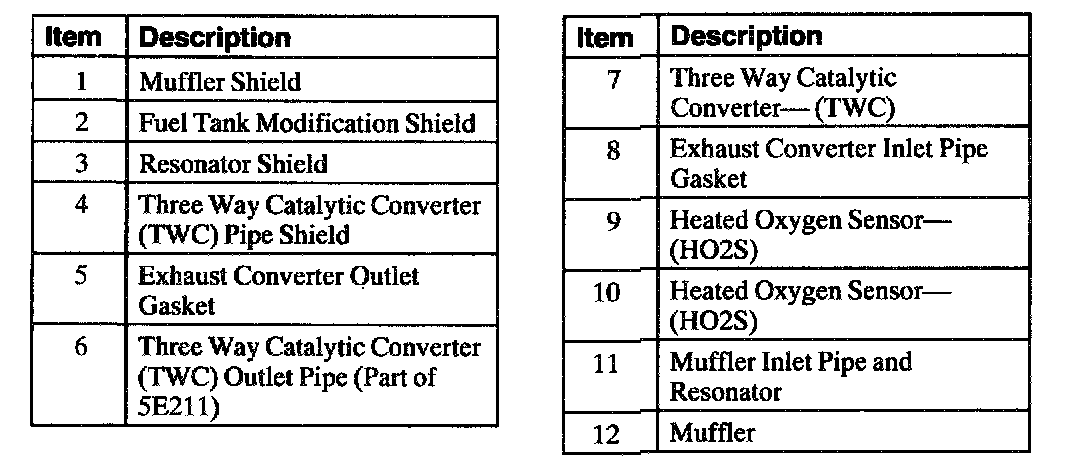

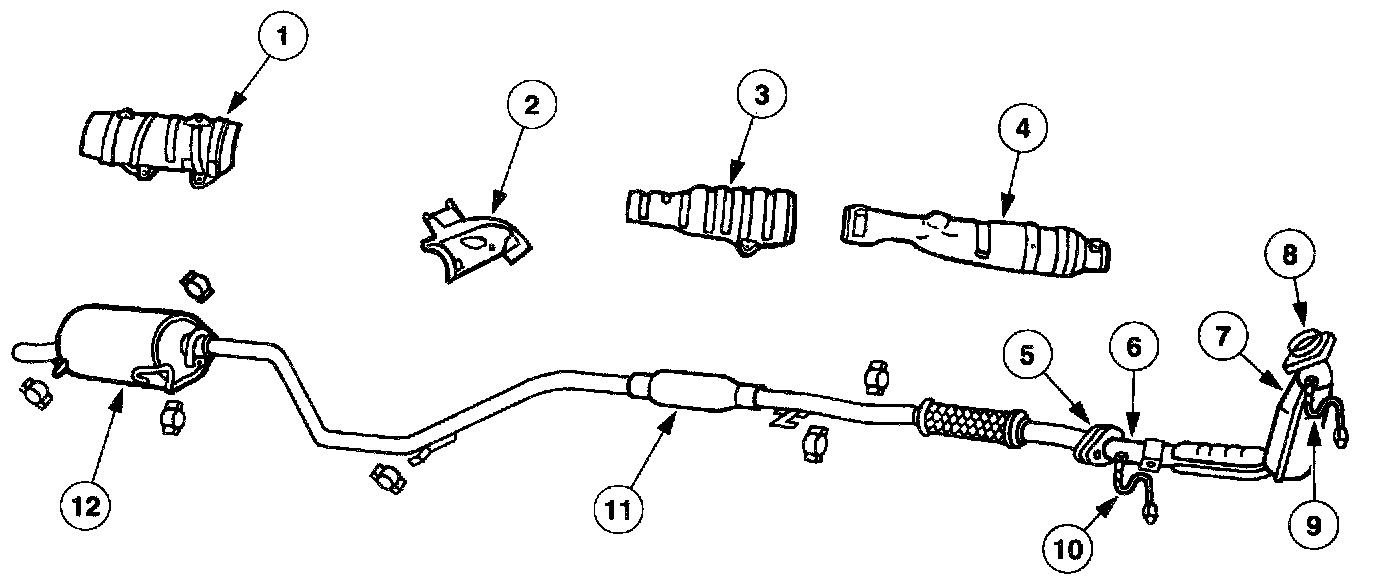

Exhaust System
Exhaust System
Part 1 of 2
Part 2 of 2
