Component Tests

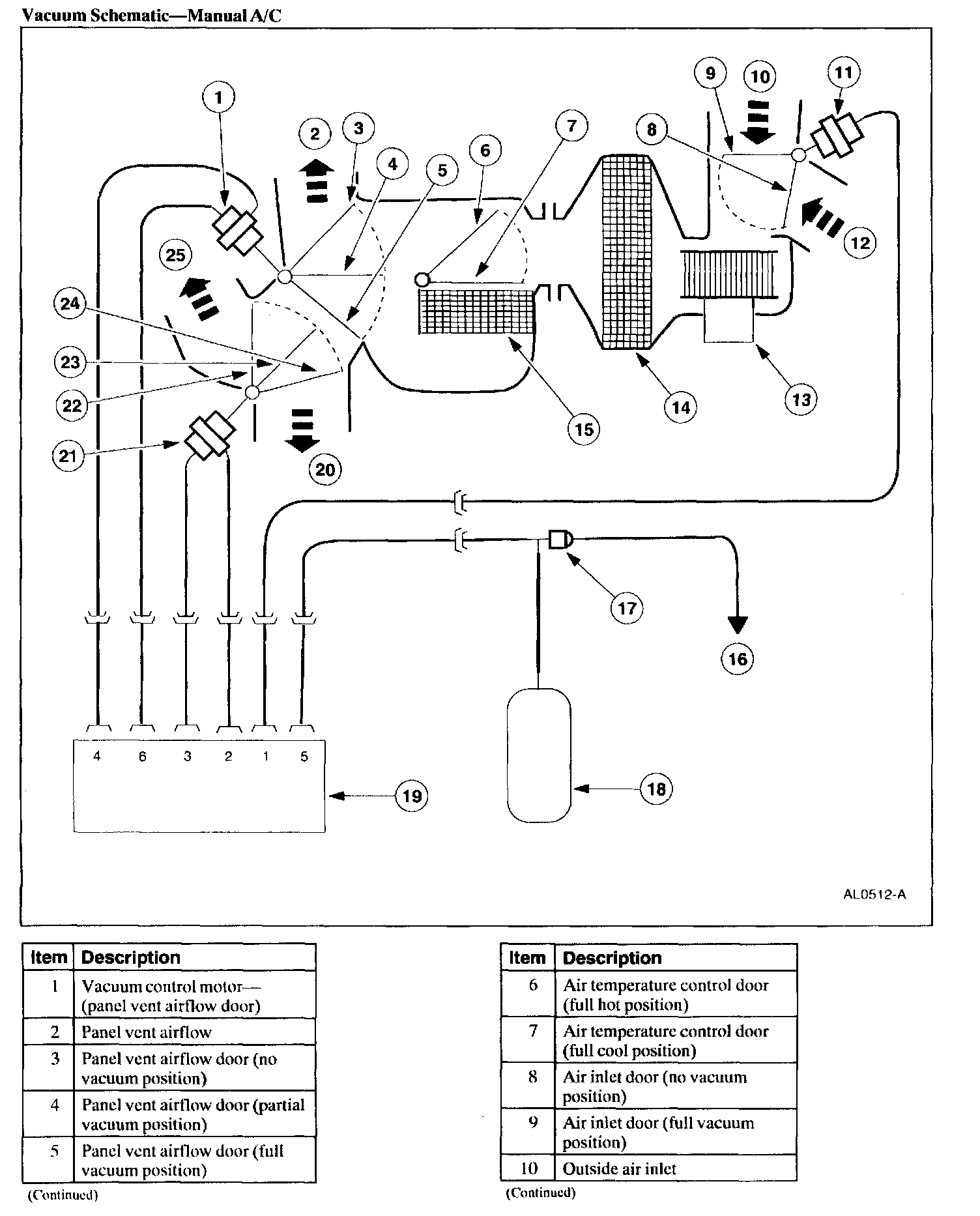

Vacuum Schematic-Manual A/C, Part 1:

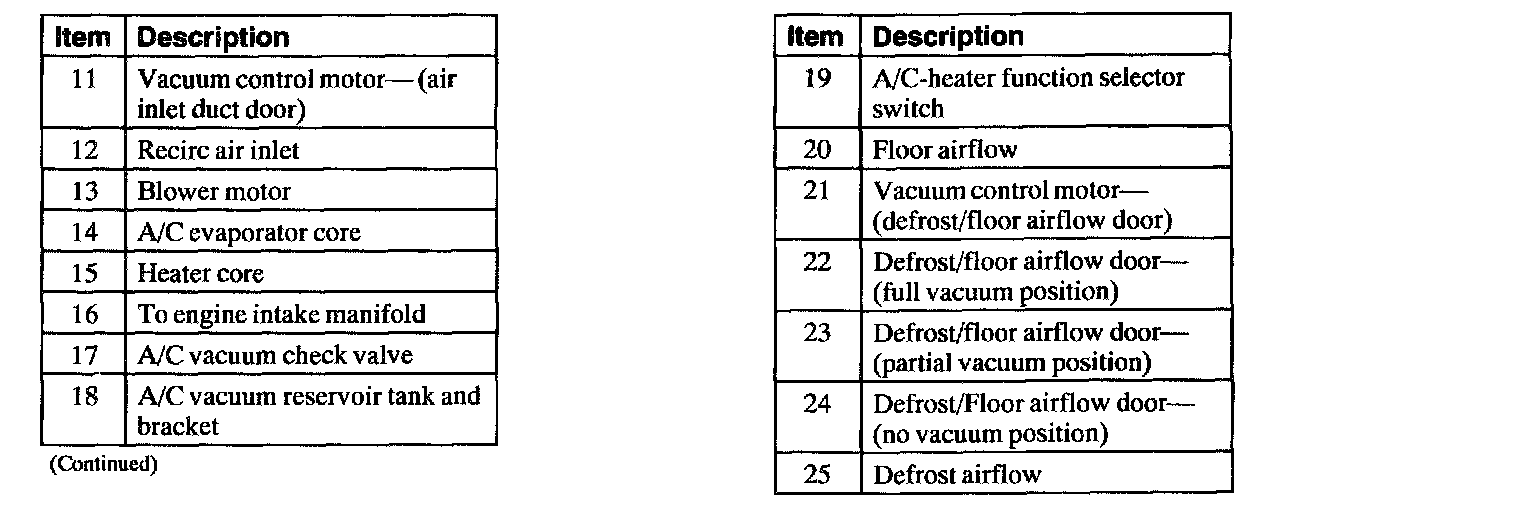

Vacuum Schematic-Manual A/C, (Legend) Part 2:

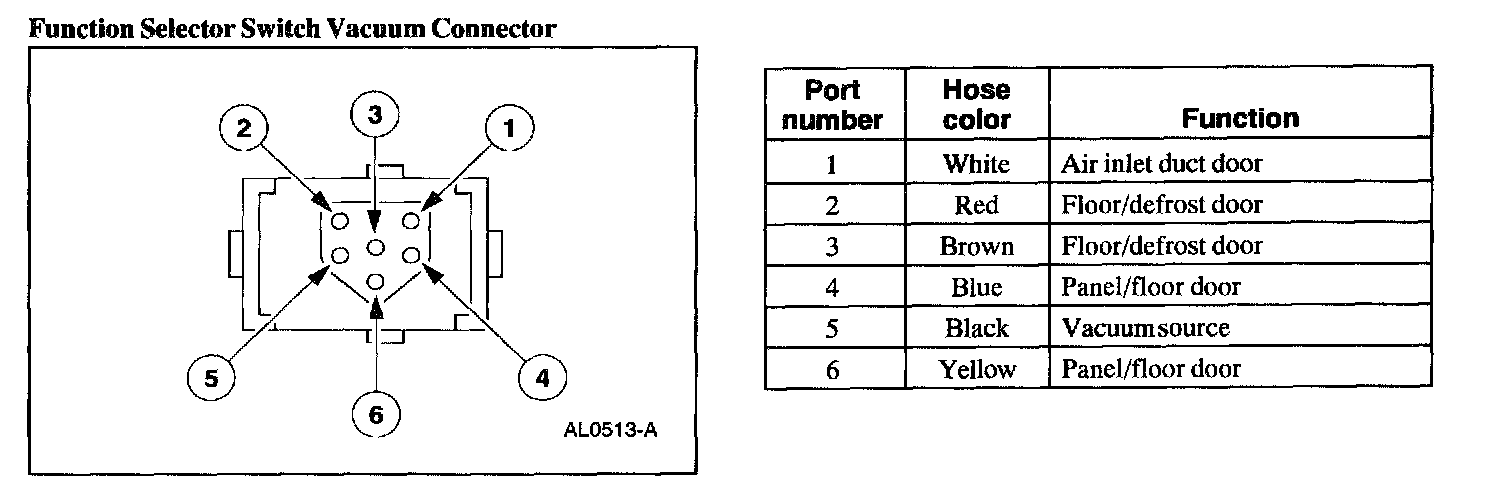

Function Selector Switch Vacuum Connector:

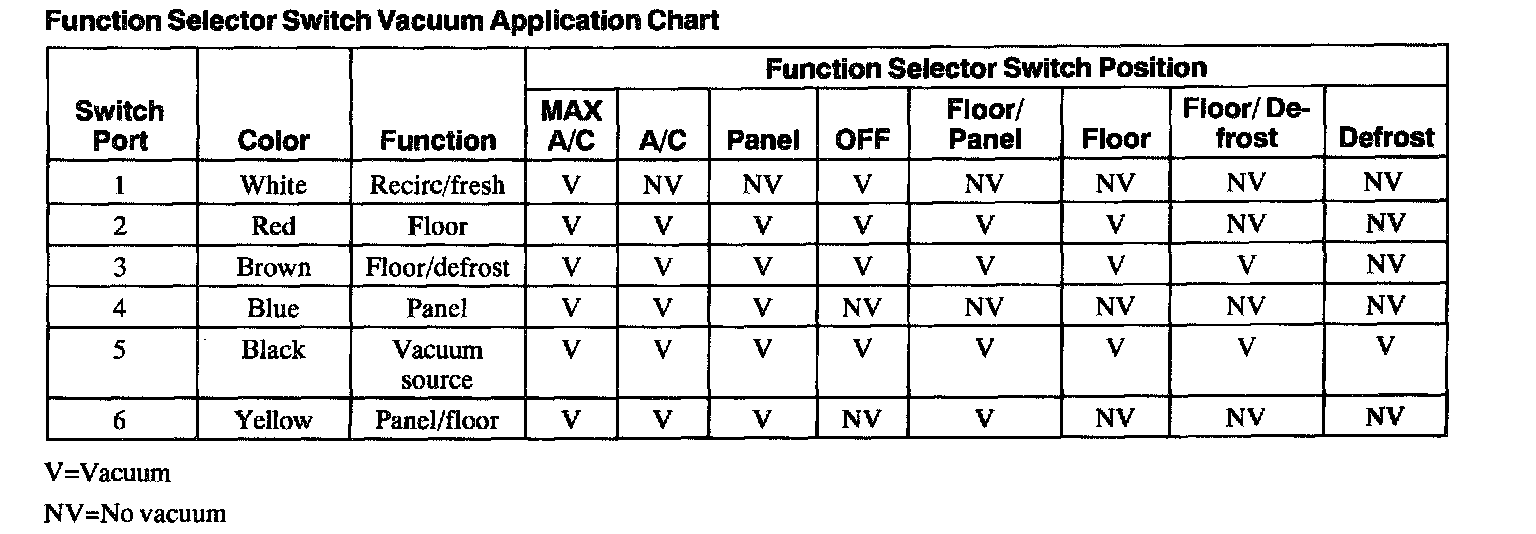

Function Selector Switch Vacuum Application Chart:
