F47

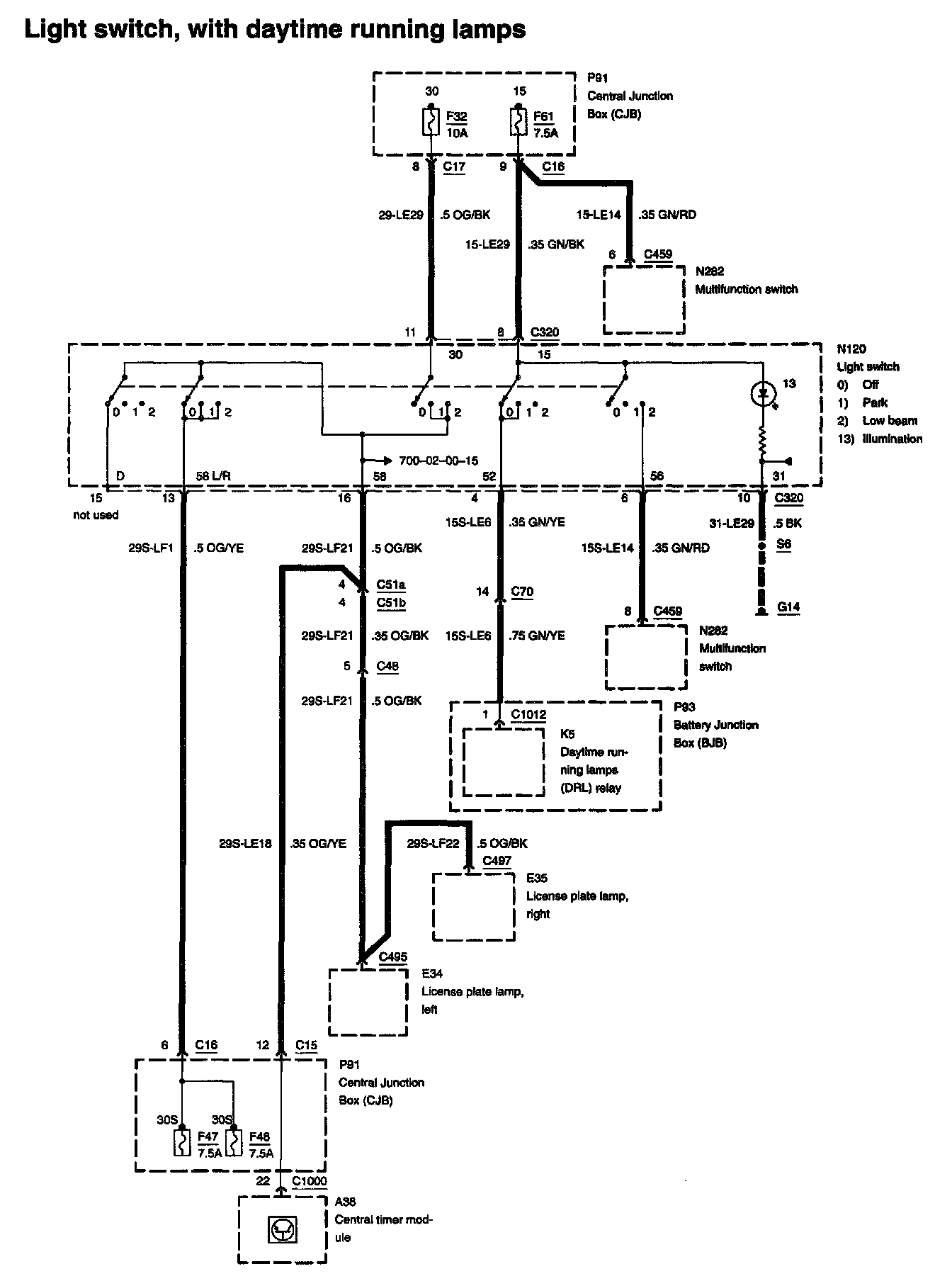

Diagram 700-03-00-14:

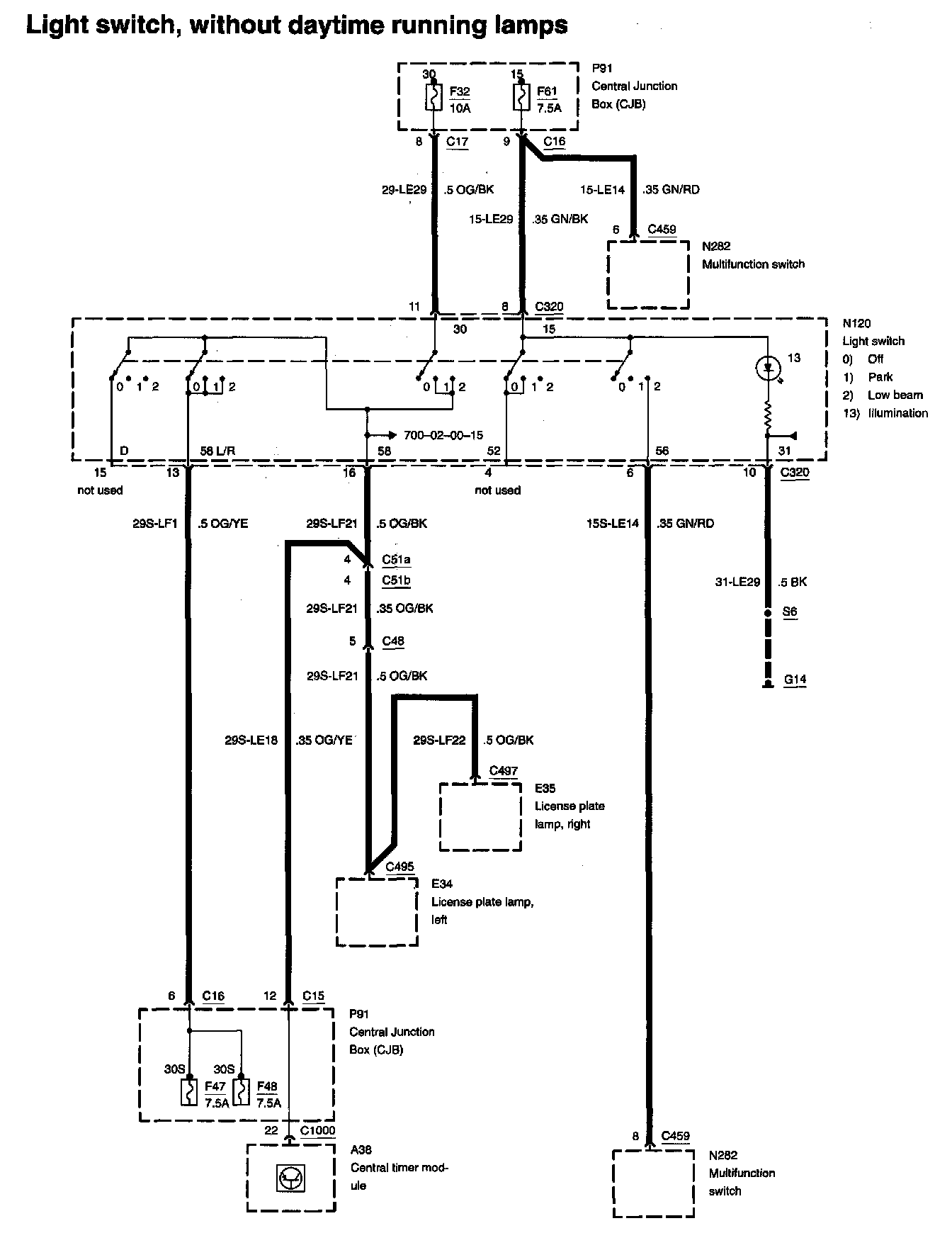

Diagram 700-02-00-14:






Diagram 700-02-00-13:






Diagram 700-02-00-1:
