Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2002
>>
Escort ZX2 L4-2.0L DOHC VIN 3
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Power Window Switch
>>

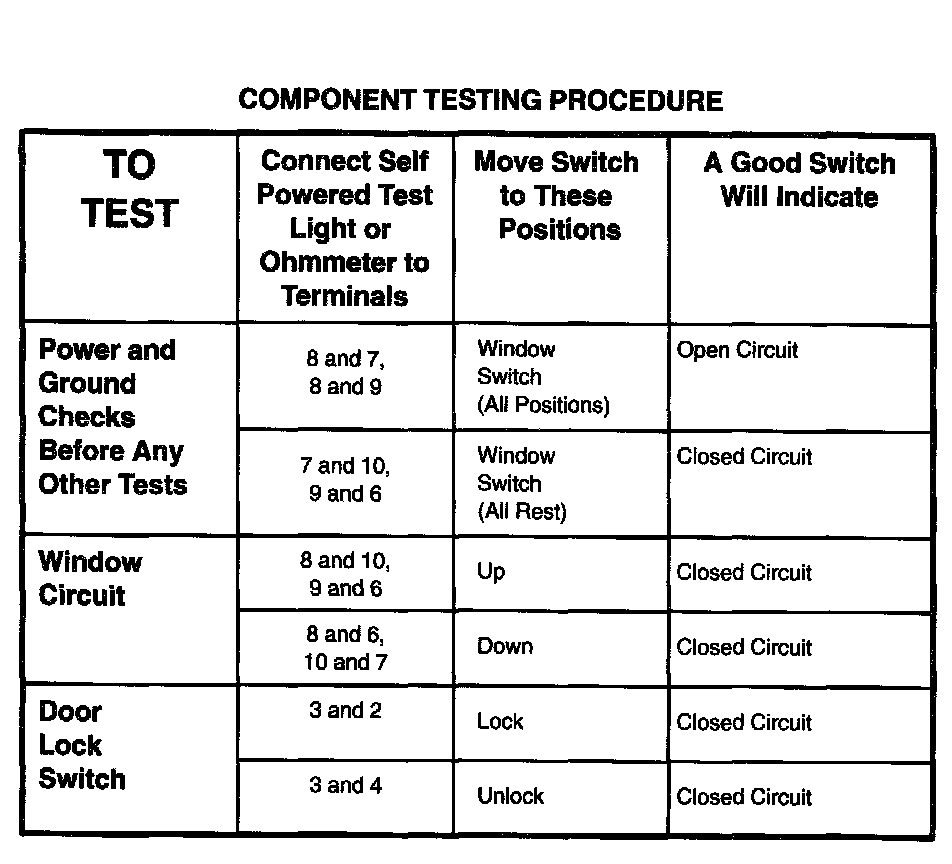

Testing and Inspection
>>

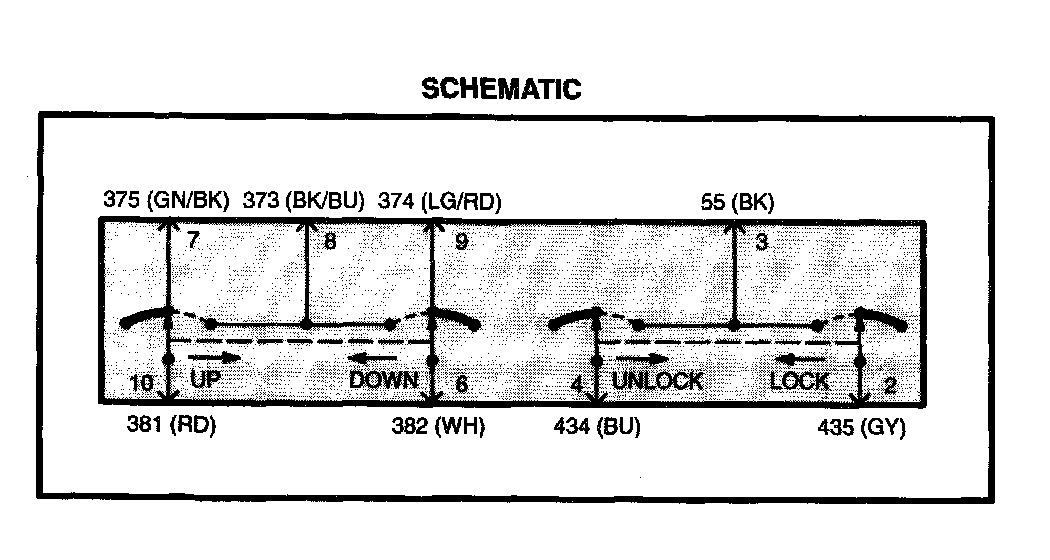

Right Window/Door Lock Control Switch
Right Window/Door Lock Control Switch
Terminals:
Terminals:
