Operation CHARM: Car repair manuals for everyone.
Home >> Ford >> 2002 >> Focus L4-2.0L DOHC VIN 3 >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> General >> Duratec

Duratec

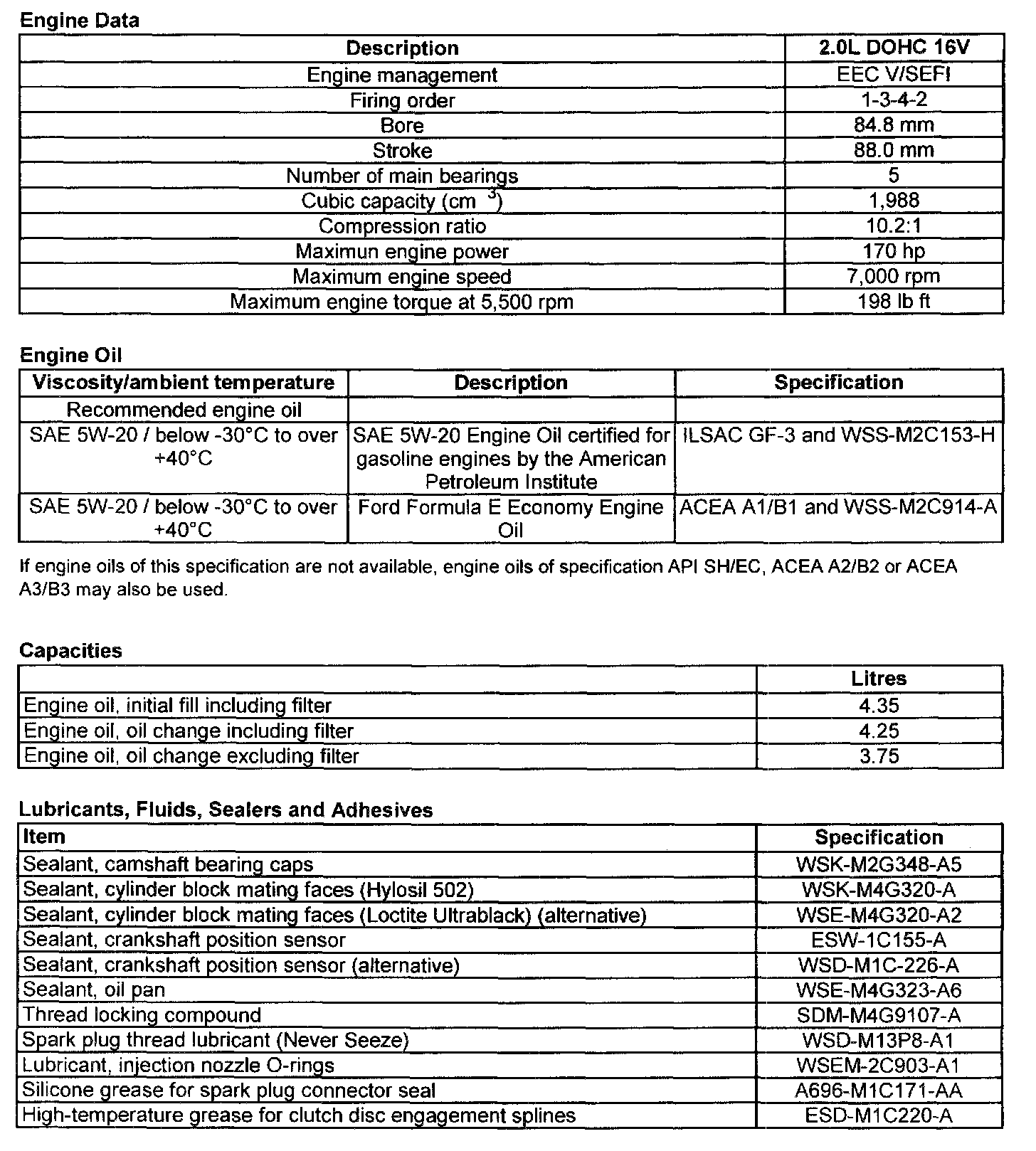

General Service Information:

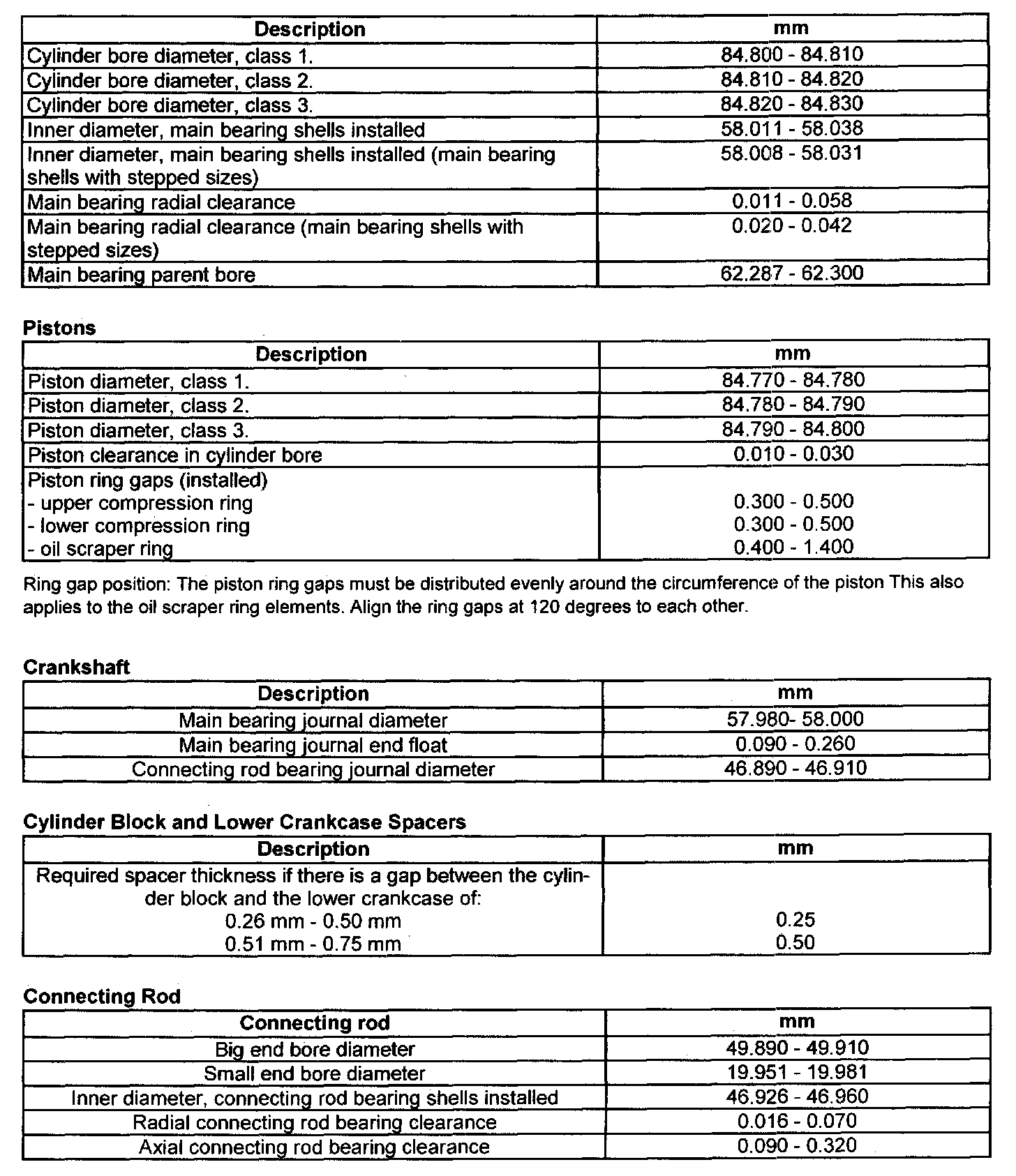

Cylinder Block, Pistons, Crankshaft & Connecting Rod Dimensions:

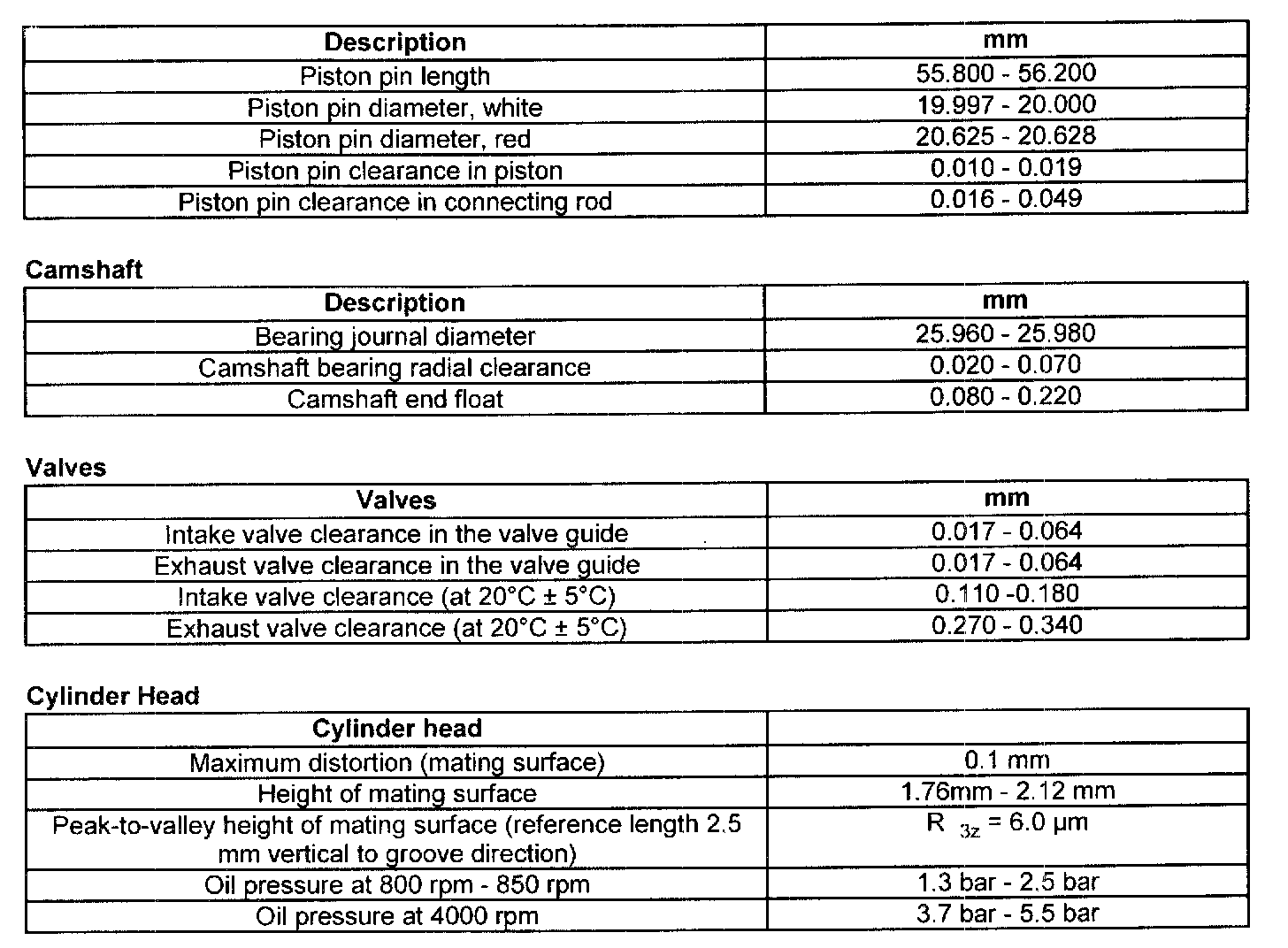

Piston Pin, Camshaft, Valves & Cylinder Head Dimensions:
