Attachment III - Technical Information

SERVICE PROCEDURE

1. Reprogram the PCM to the latest level calibration. Use one (1) of the following two (2) methods:

^ Worldwide Diagnostic System (WDS), with the latest level software.

^ New Generation STAR (NGS) Tester with Rotunda Flash Cable (007-00531) and Rotunda Flash Card (007-00532). The calibration must be downloaded to a flash card using WDS with the latest level software.

PREPARE AUTHORIZED MODIFICATIONS LABEL

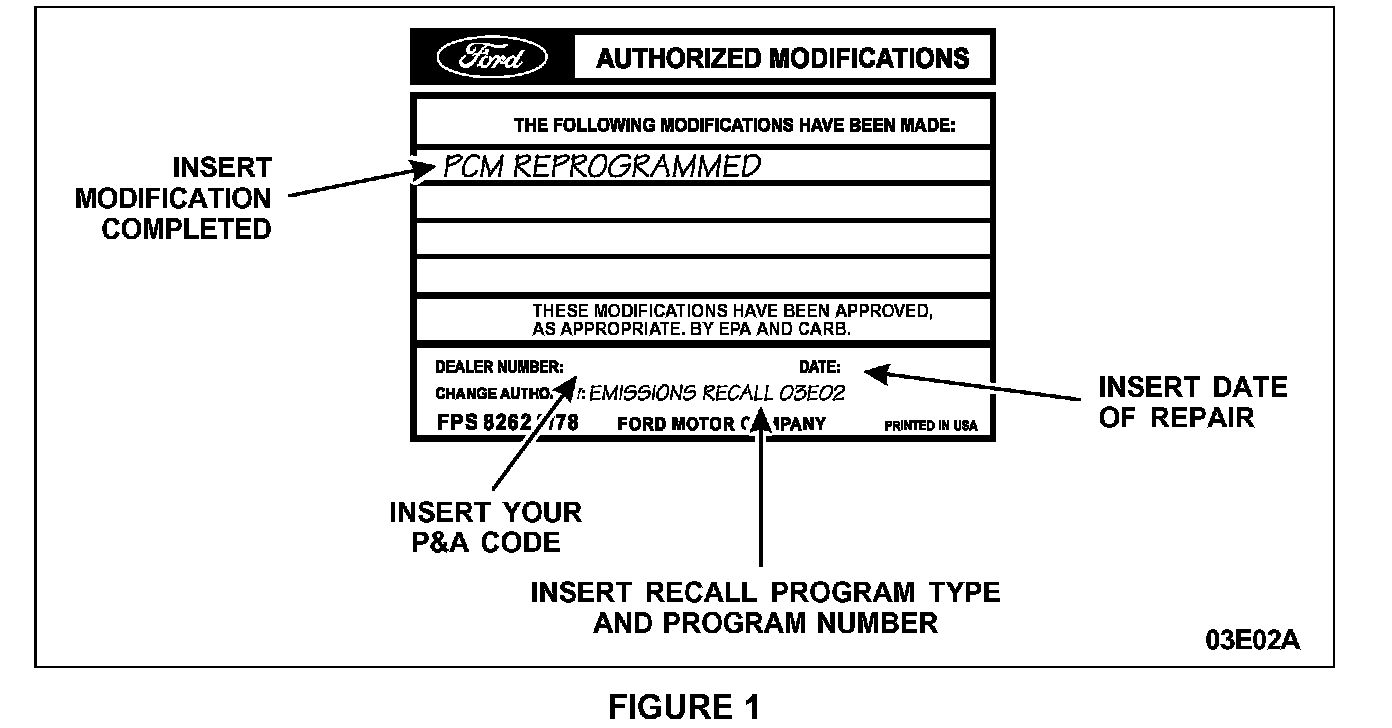

1. Obtain and prepare the Authorized Modifications Label. Write the modification completed, your P&A Code, date of repair and the recall program type and program number. See Figure 1.

2. Clean an area on the upper radiator support.

3. Apply the label to this clean area.
