Speed Control Cable

REMOVAL

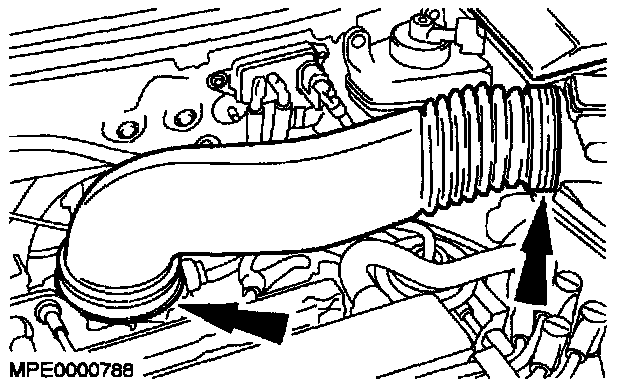

1. Remove the air cleaner outlet tube.

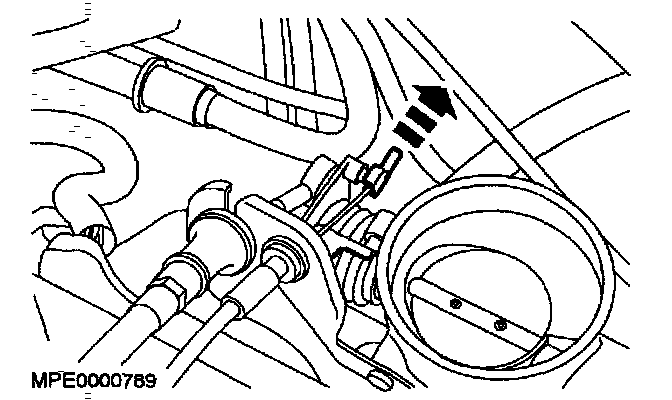

2. Disconnect the speed control cable from the throttle body.

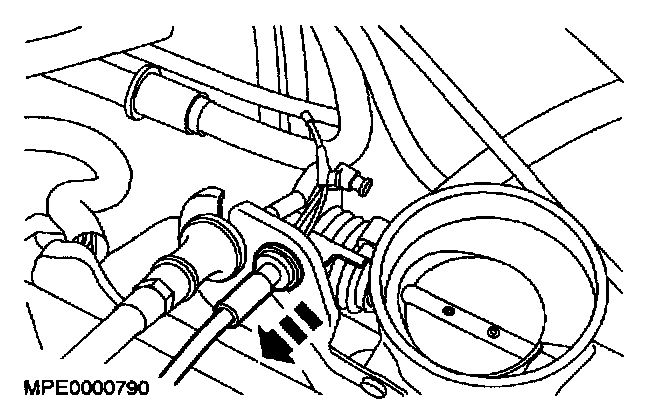

3. Detach the speed control cable form the throttle body.

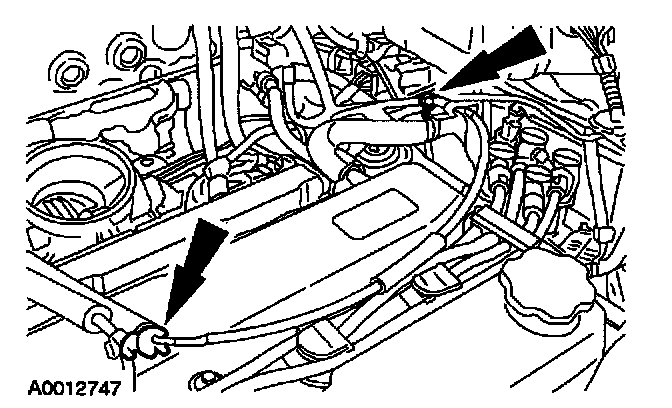

4. Detach the speed control cable from the two retaining clips.

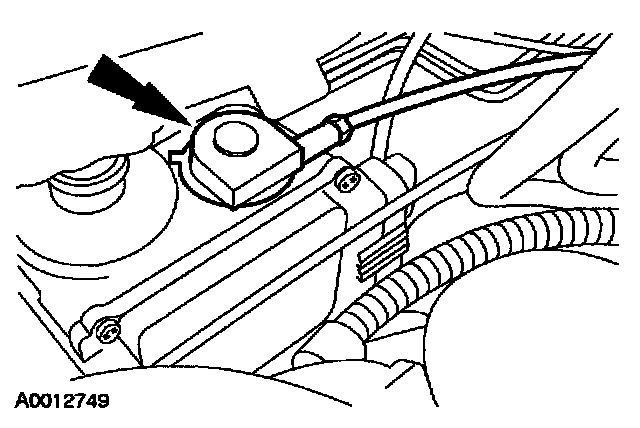

5. Detach the speed control actuator cable cover.

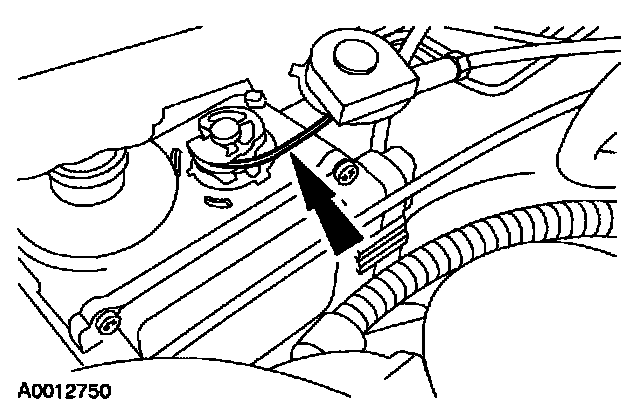

6. Remove the speed control cable from the speed control actuator pulley.

INSTALLATION
1. To install, reverse the removal procedure.
