Mustang V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
>>
Location Views
>>

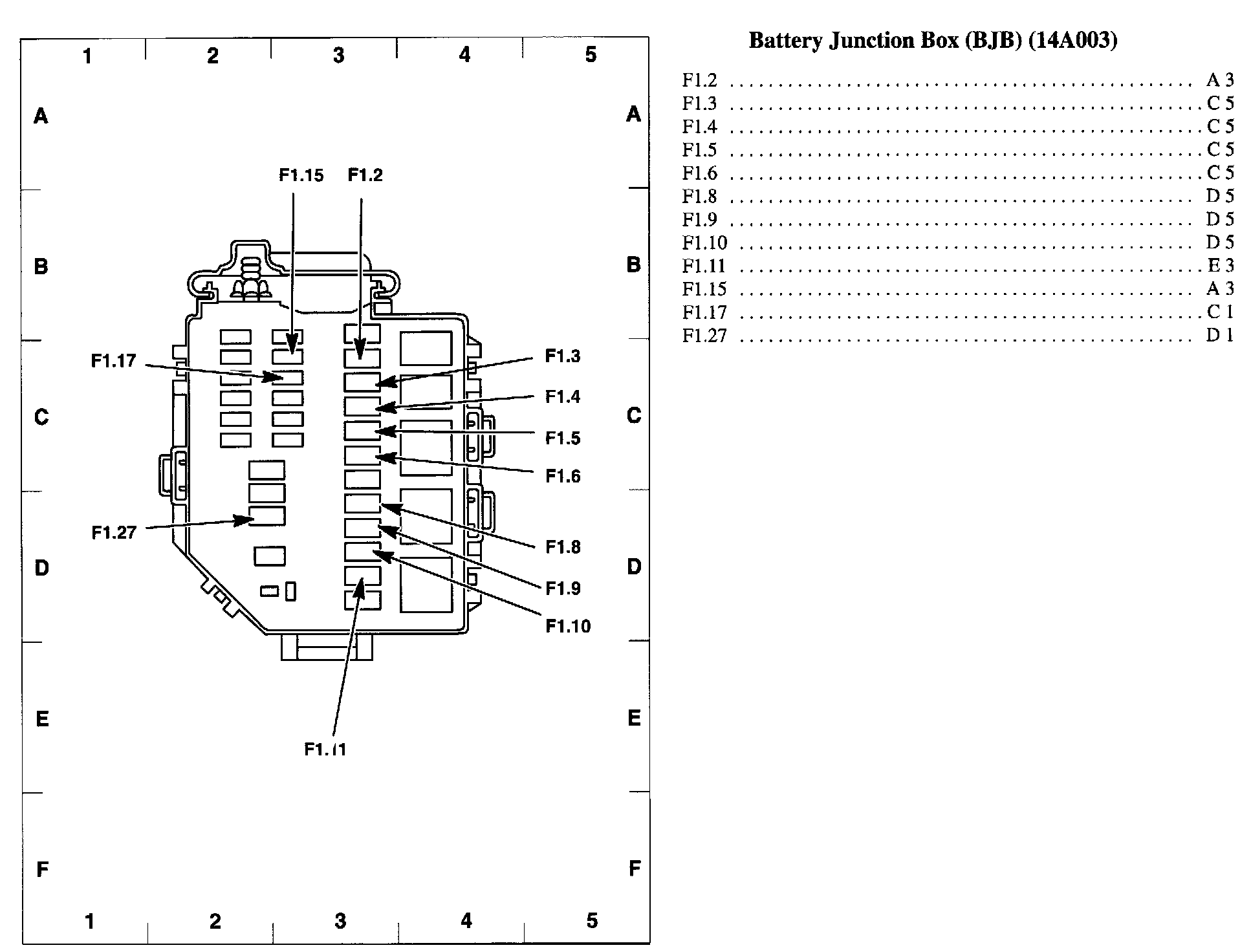

View 151-32 (Battery Junction Box)
View 151-32 (Battery Junction Box)
View 151-32:
