Cruise Control Servo: Service and Repair

REMOVAL

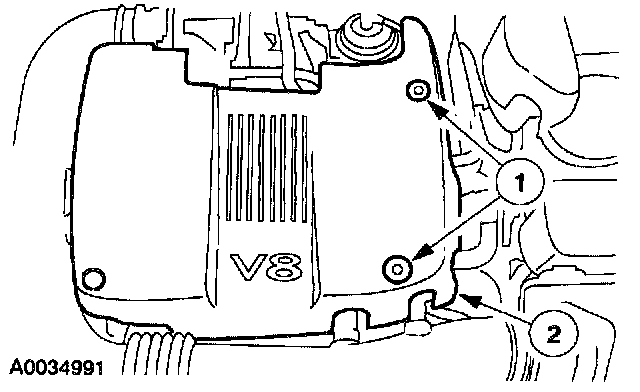

1. Remove the engine cover.
1 Remove the push-pins.
2 Remove the engine cover by pulling straight up.

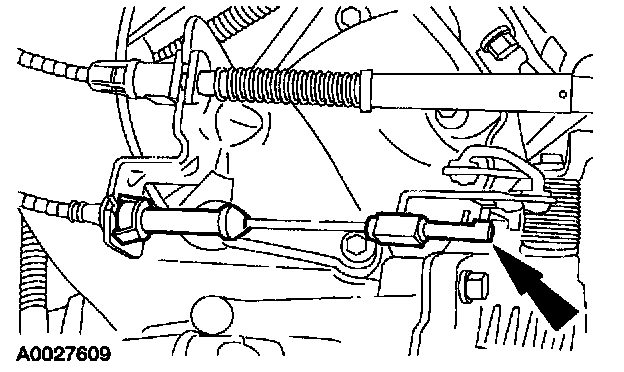

2. Detach the speed control cable end from the throttle nailhead by pushing forward.
3. Remove the LF wheel and tire.
4. Remove the LF inner splash shield.

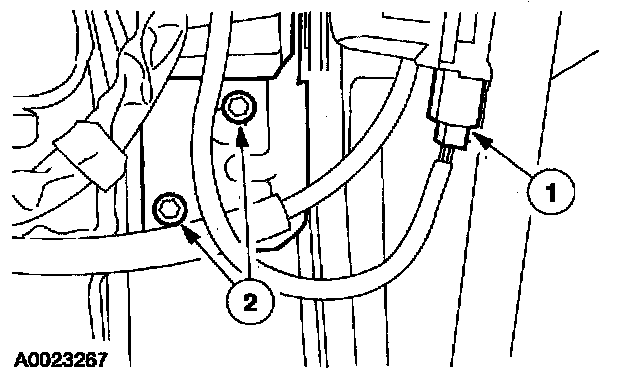

5. Position the speed control actuator bracket assembly aside.
1 Disconnect the electrical connector.
2 Remove the bolts.

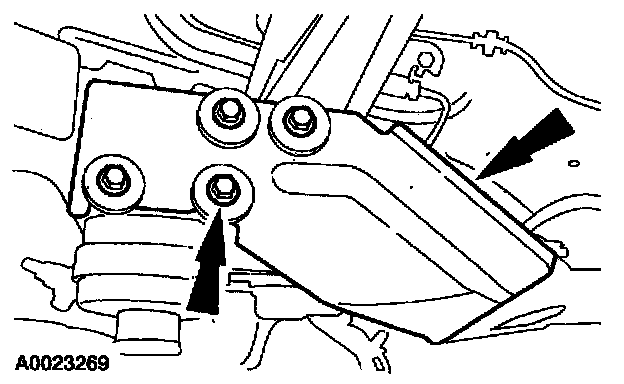

6. Remove the bolts and separate the bracket from the speed control actuator.







7. Depress the locking tab and rotate the speed control cable cap to remove.







8. Disconnect the speed control cable from the speed control actuator pulley.
1 Gently push the retaining spring.
2 Disconnect the speed control cable slug from the speed control actuator pulley.

INSTALLATION







1. Insert the speed control cable slug into the speed control actuator pulley slot.
1 Gently push the retaining spring.
2 Insert the speed control cable slug completely into the speed control actuator pulley slot.







2. Align the speed control cable cap tabs with the slots in the speed control actuator housing.

CAUTION:
^ It is necessary to squarely seat the speed control cable cap and seal around the speed control actuator pulley.
^ Incorrect wrapping of the speed control cable around the speed control actuator pulley may result in high idle conditions.

NOTE: Make sure the rubber seal is fully seated onto the speed control cable cap.







3. Rotate the speed control cable cap until the locking tab engages.

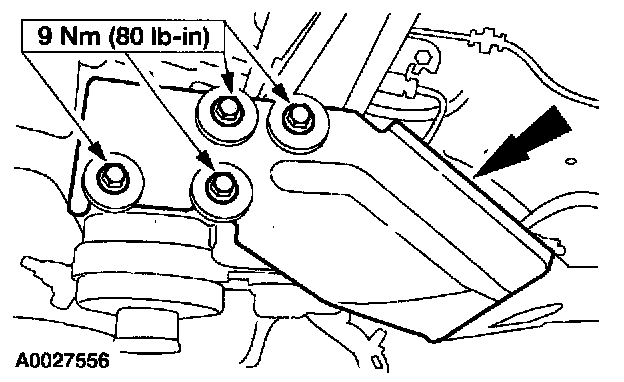

4. Attach the bracket to the speed control actuator and install the bolts.

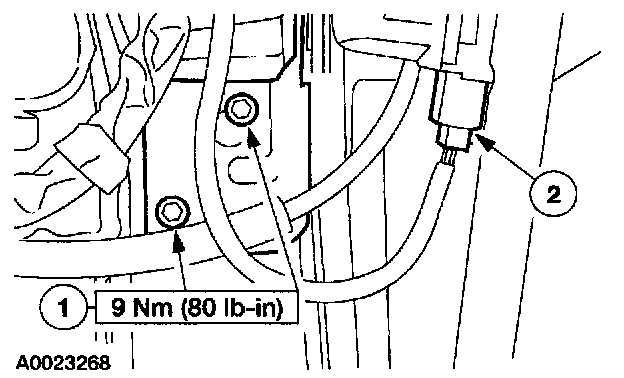

5. Install the speed control actuator bracket assembly.
1 Install the bolts.
2 Connect the electrical connector.

6. Install the LF inner splash shield.
7. Install the wheel and tire.

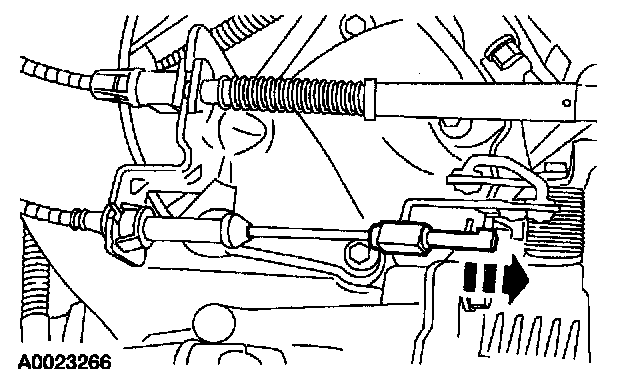

8. Attach the speed control cable end to the throttle nailhead.
9. Install the engine cover.
