Home >> Ford >> 2002 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Upper End

Upper End

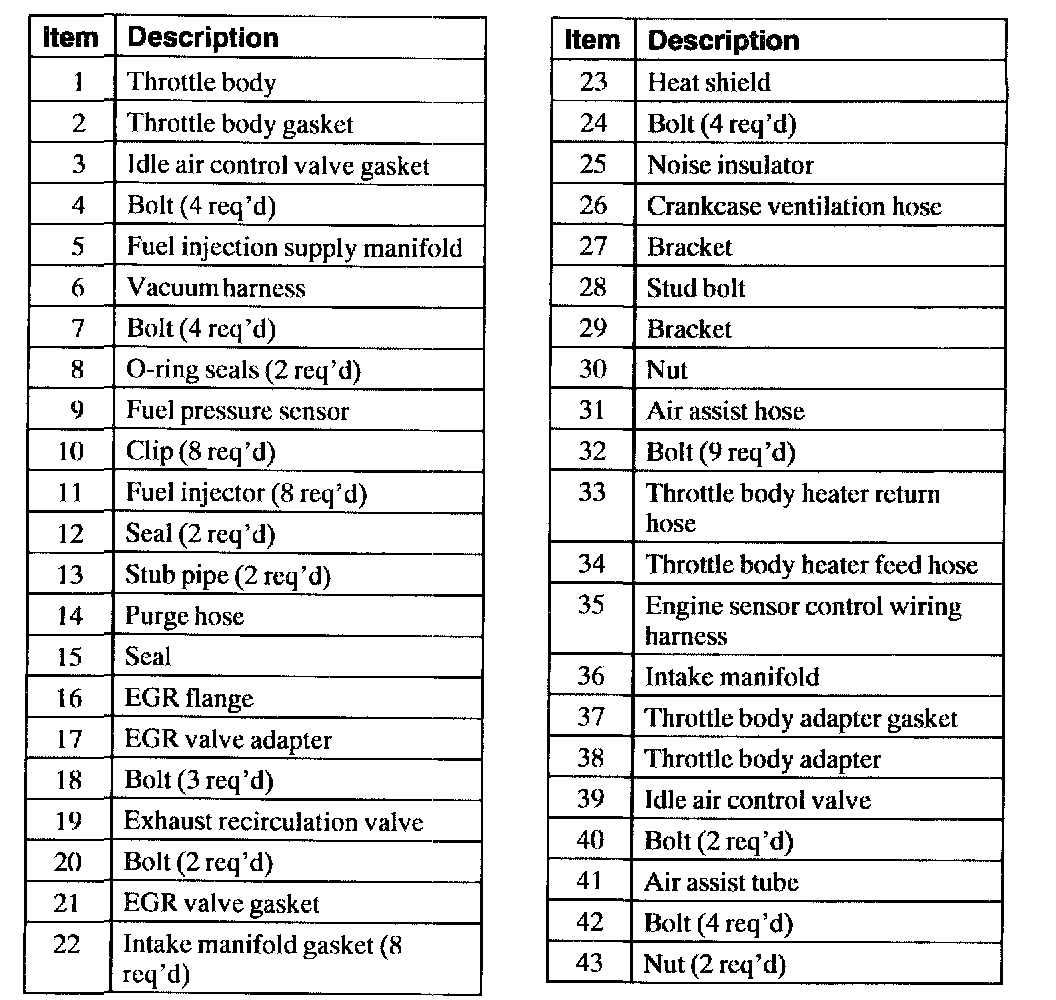

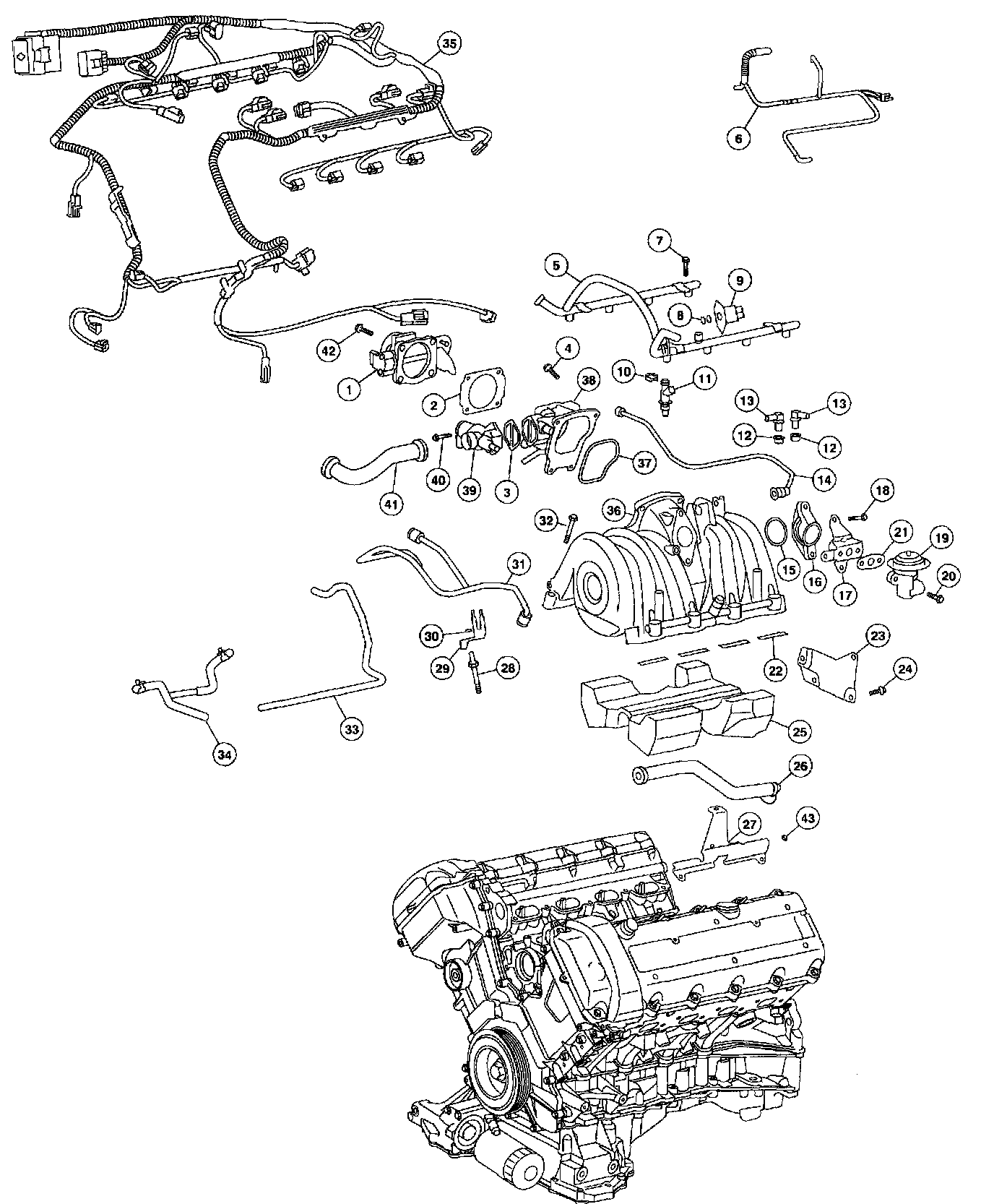

Upper End Exterior Dress
