Home >> Ford >> 2002 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Locations >> Component Locations >> Location Views >> View 151-17 (Dash Panel-Rear View, Driver Front Window Circuit)

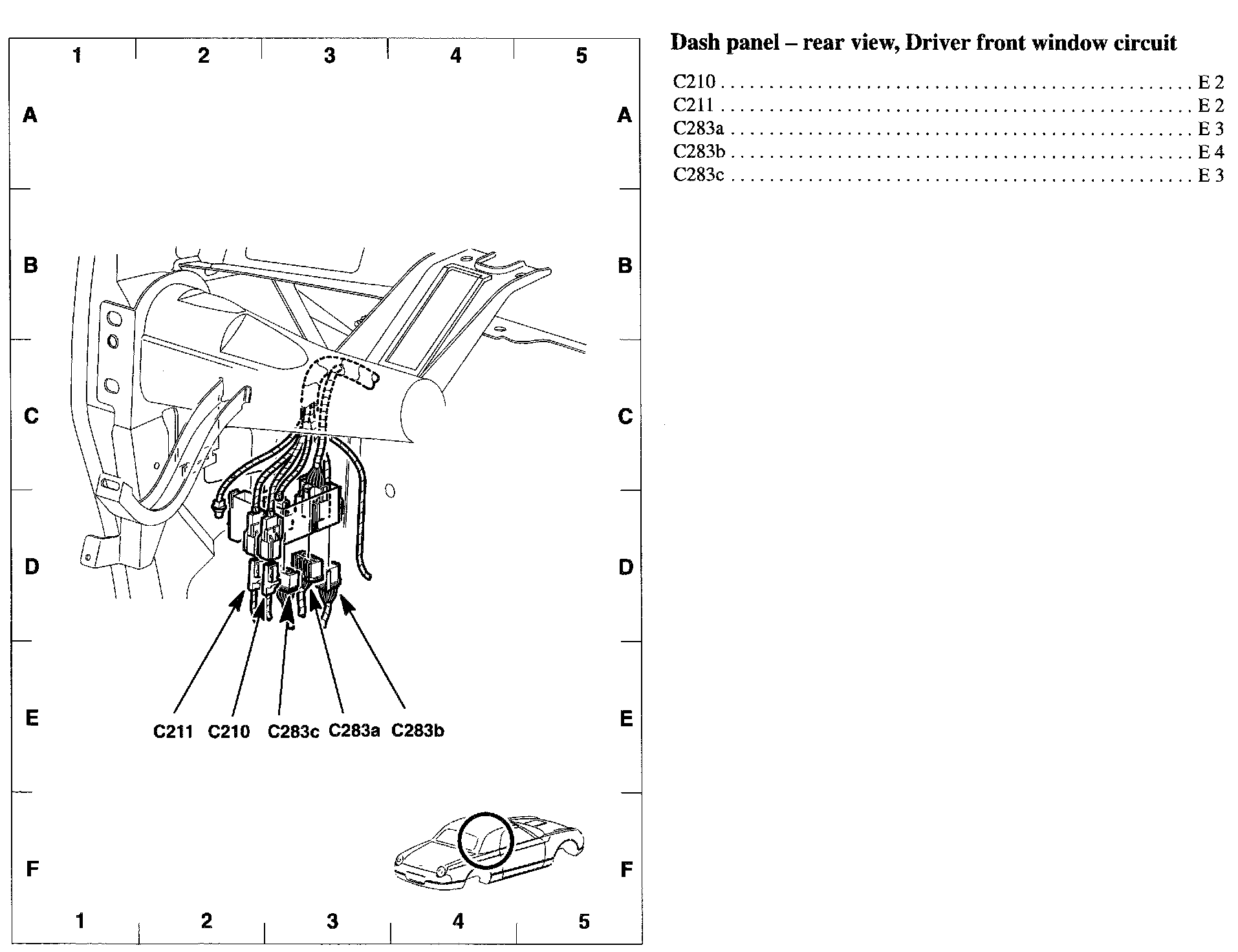

View 151-17 (Dash Panel-Rear View, Driver Front Window Circuit)

View 151-17:
