Power Window - Short Drop Glass Feature Inoperative: Overview

Article No.
02-5-7

03/01/02

ELECTRICAL - POWER WINDOW - POWER WINDOW
SHORT DROP GLASS FEATURE INOPERATIVE OR
ERRATIC OPERATION

FORD:
2002 THUNDERBIRD

ISSUE

Some vehicles may exhibit calibration loss or erratic operation of the Power Window Short Drop Glass function. This may be caused by a discharged or weak battery, presence of door glass mechanical interference, or by the software program in the Front Electronics Module (FEM) and Rear Electronics Module (REM).

Test the function and operation of the Power Window Short Drop Glass feature. Use the following Service Procedure to determine the best suited
repair action.

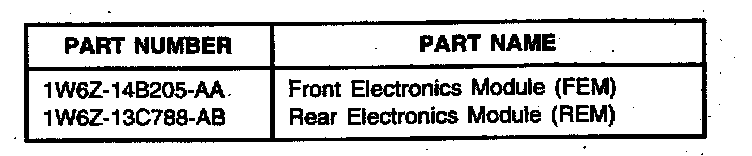

Parts Block

OTHER APPLICABLE ARTICLES: NONE

WARRANTY STATUS: Eligible Under The Provisions Of Bumper To Bumper Warranty Coverage

OPERATION DESCRIPTION TIME

020507A Verify Concern And 0.1 Hr.
Recalibrate Power
Windows (Includes Time
To Perform Procedure For
State One And Two On
Both Windows)

020507B Verify Concern And 1.4 Hrs.
Recalibrate Power
Windows (Includes Time
To Perform Procedure For
State One And Two On
Both Windows) Then
Perform Test And Replace
F.E.M And R.E.M.

DEALER CODING
CONDITION
BASIC PART NO. CODE
14B205 42

OASIS CODES: 102000
