PINPOINT TEST B: THE LIGHTING CONTROL MODULE (LCM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

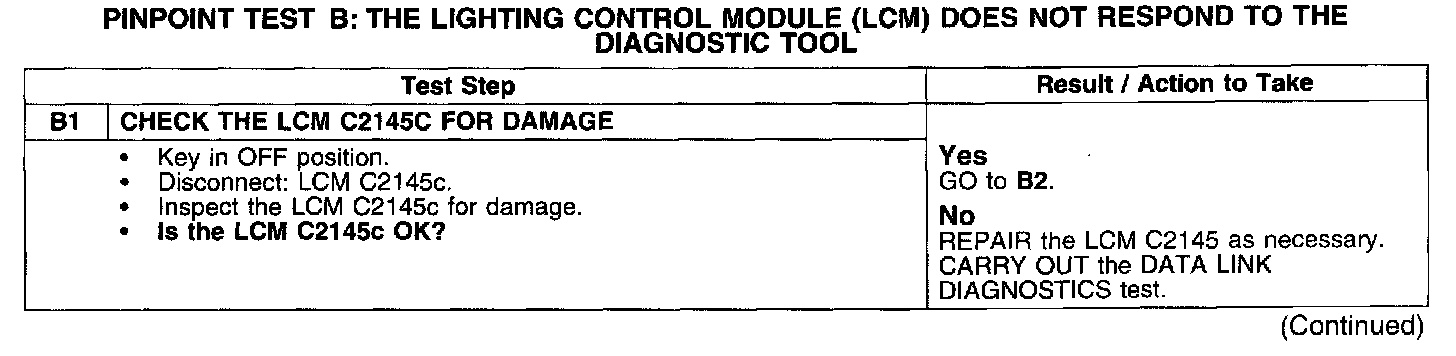

Test B1:

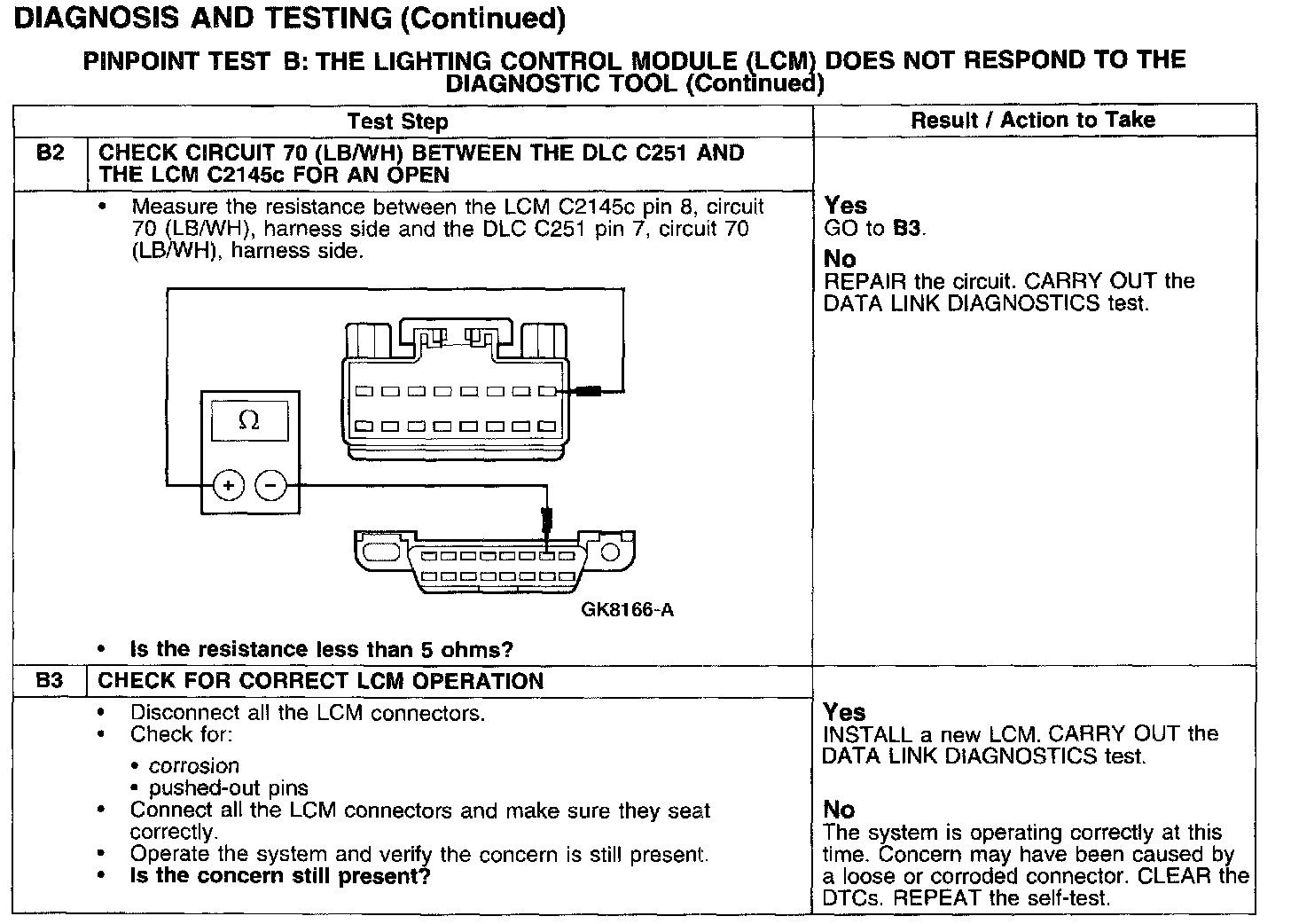

Test B2-B3:
