Test G

PINPOINT TEST G: THE POWERTRAIN CONTROL MODULE (PCM) DOES NOT RESPOND TO THE DIAGNOSTIC TOOL

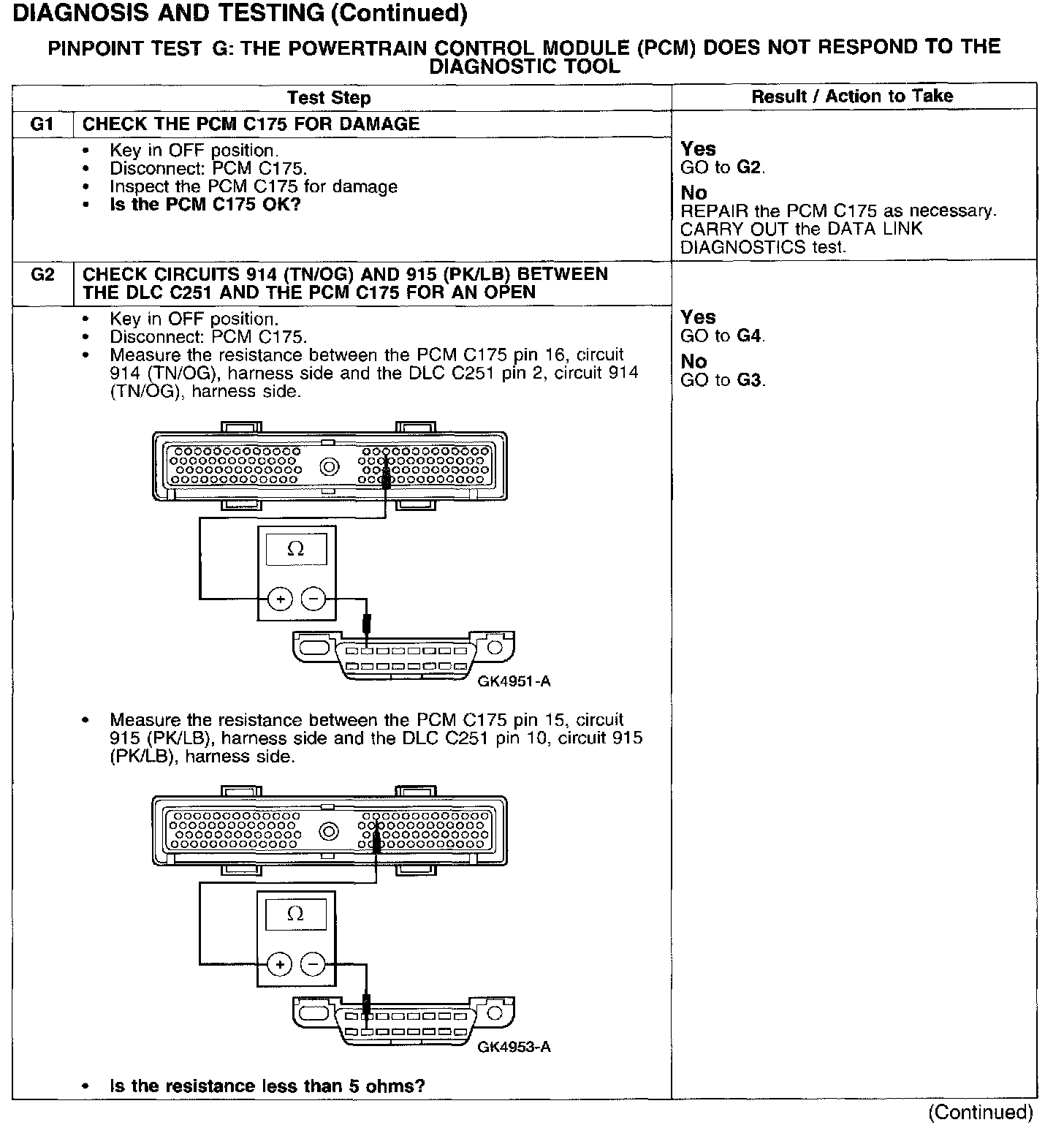

Test G1-G2:

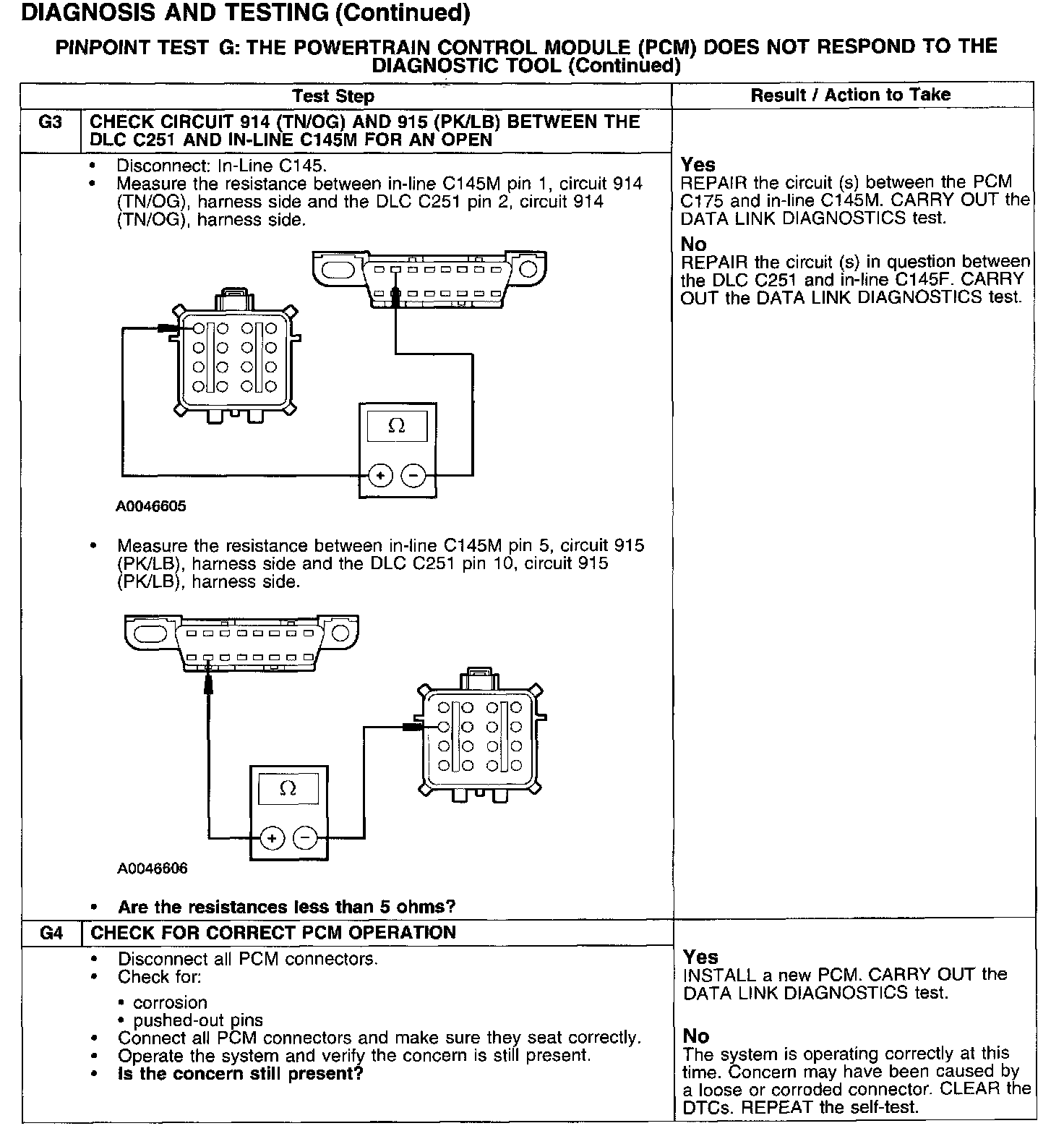

Test G3-G4:
