Test A: Speed Control Is Inoperative

PINPOINT TEST A: THE SPEED CONTROL IS INOPERATIVE

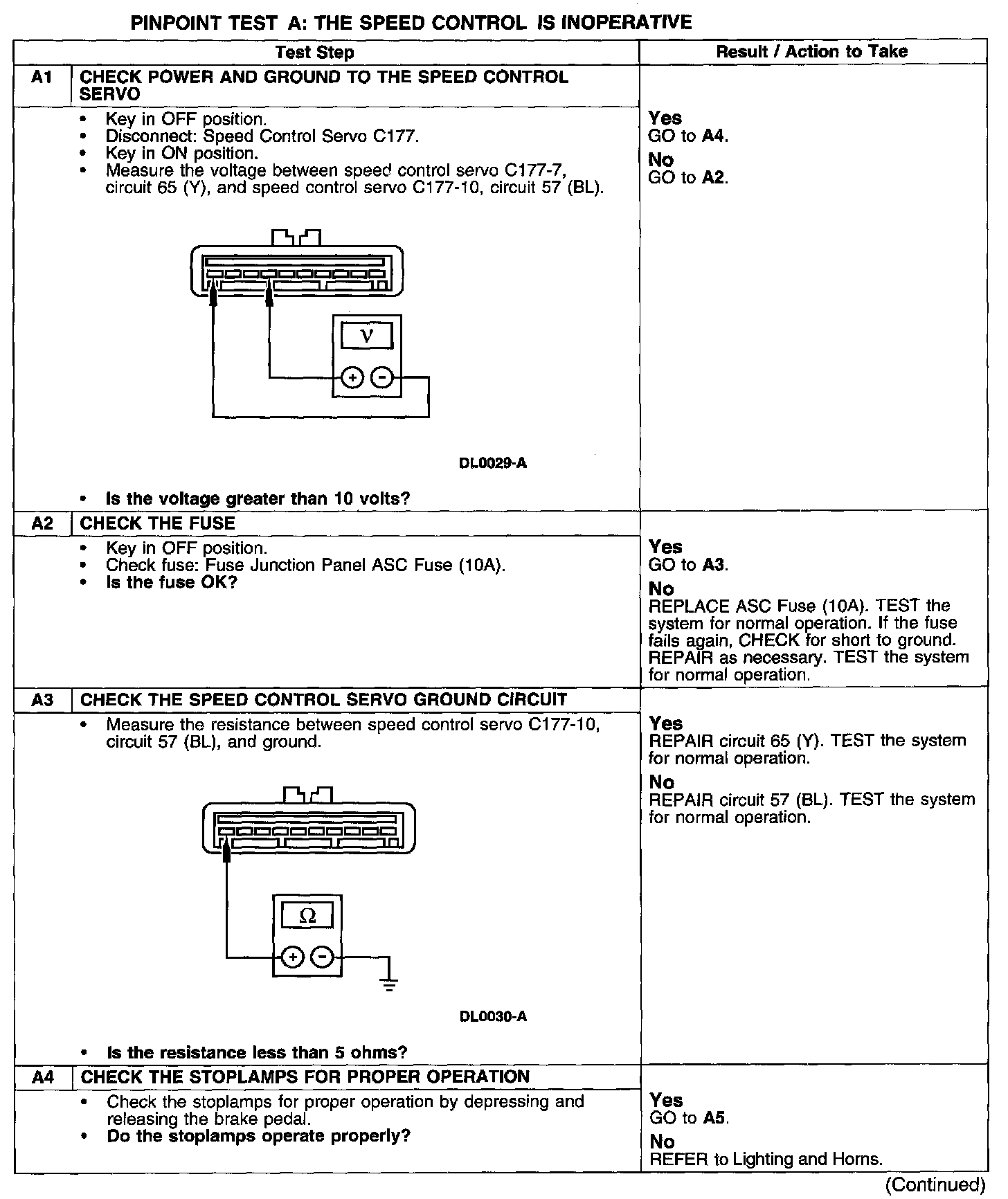

Test A1-A4:

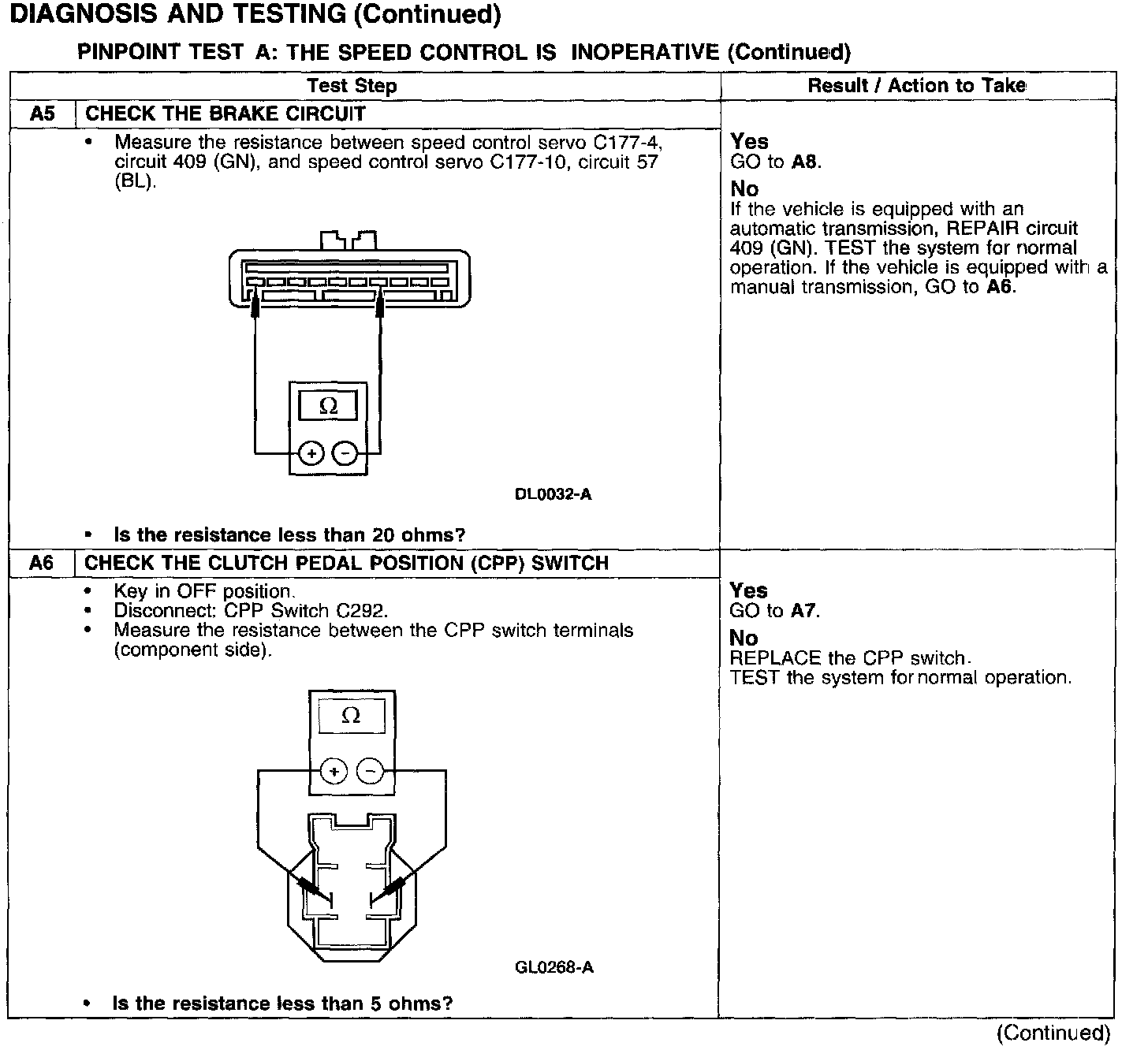

Test A5-A6:

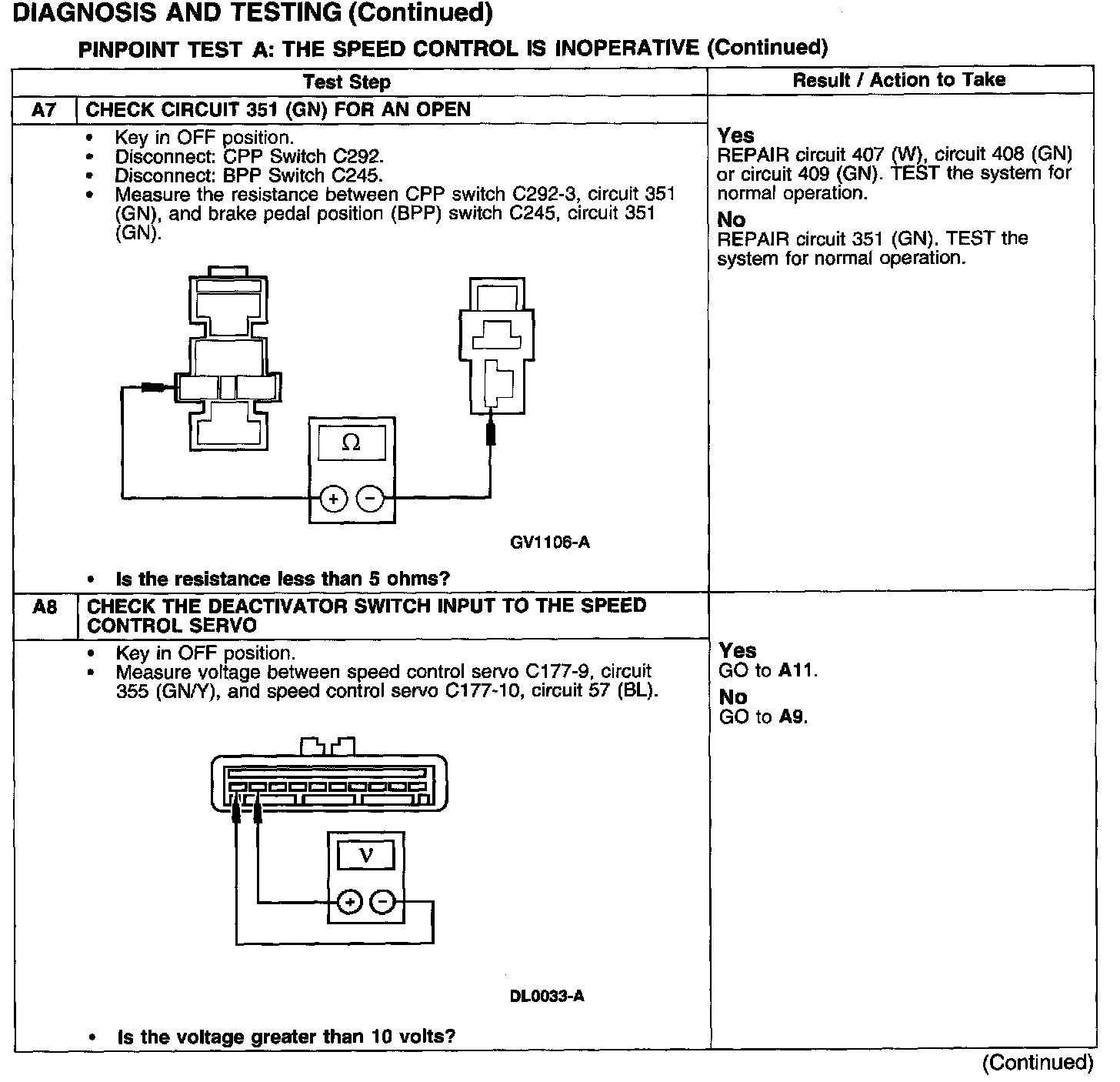

Test A7-A8:

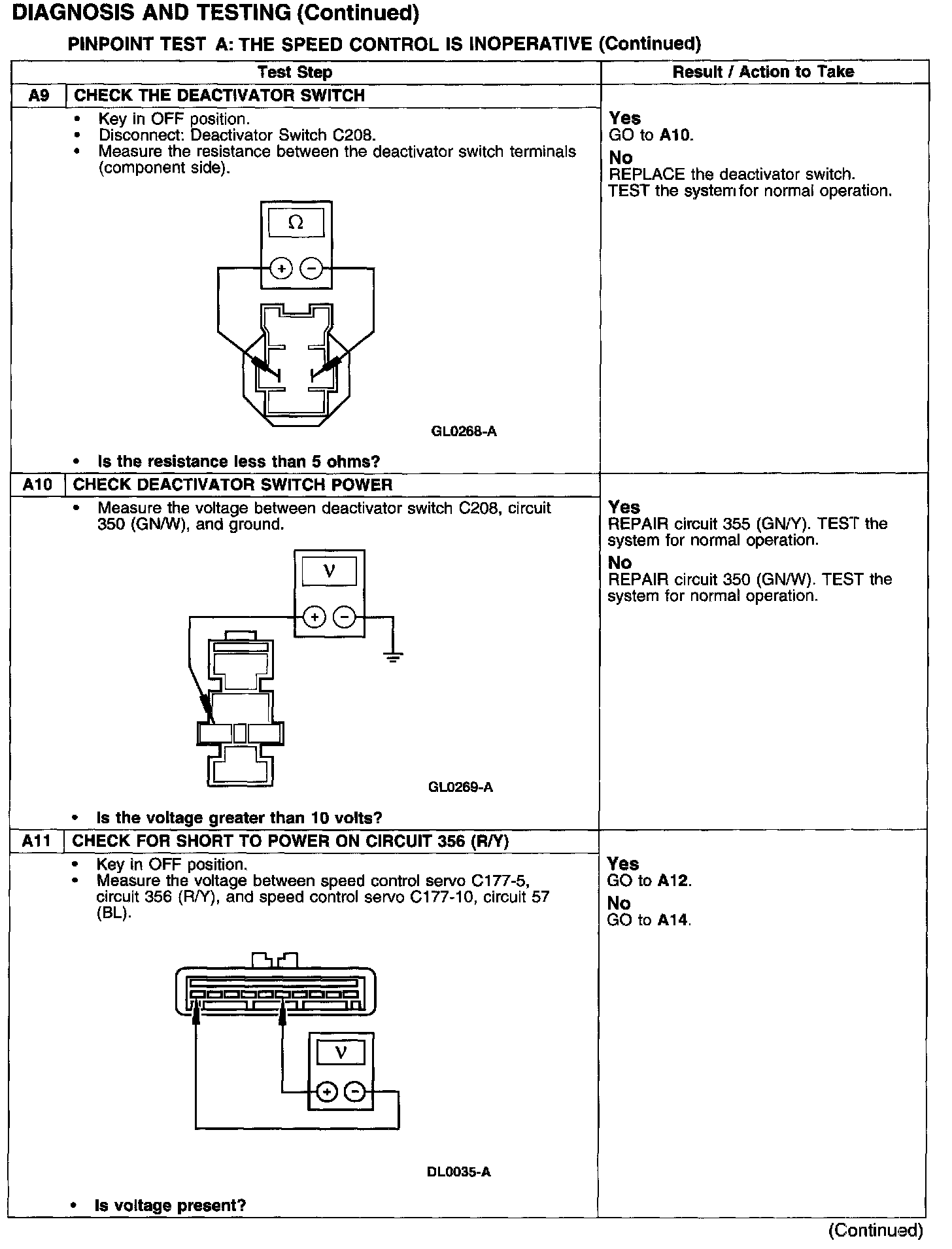

Test A9-A11:






Test A12-A13:

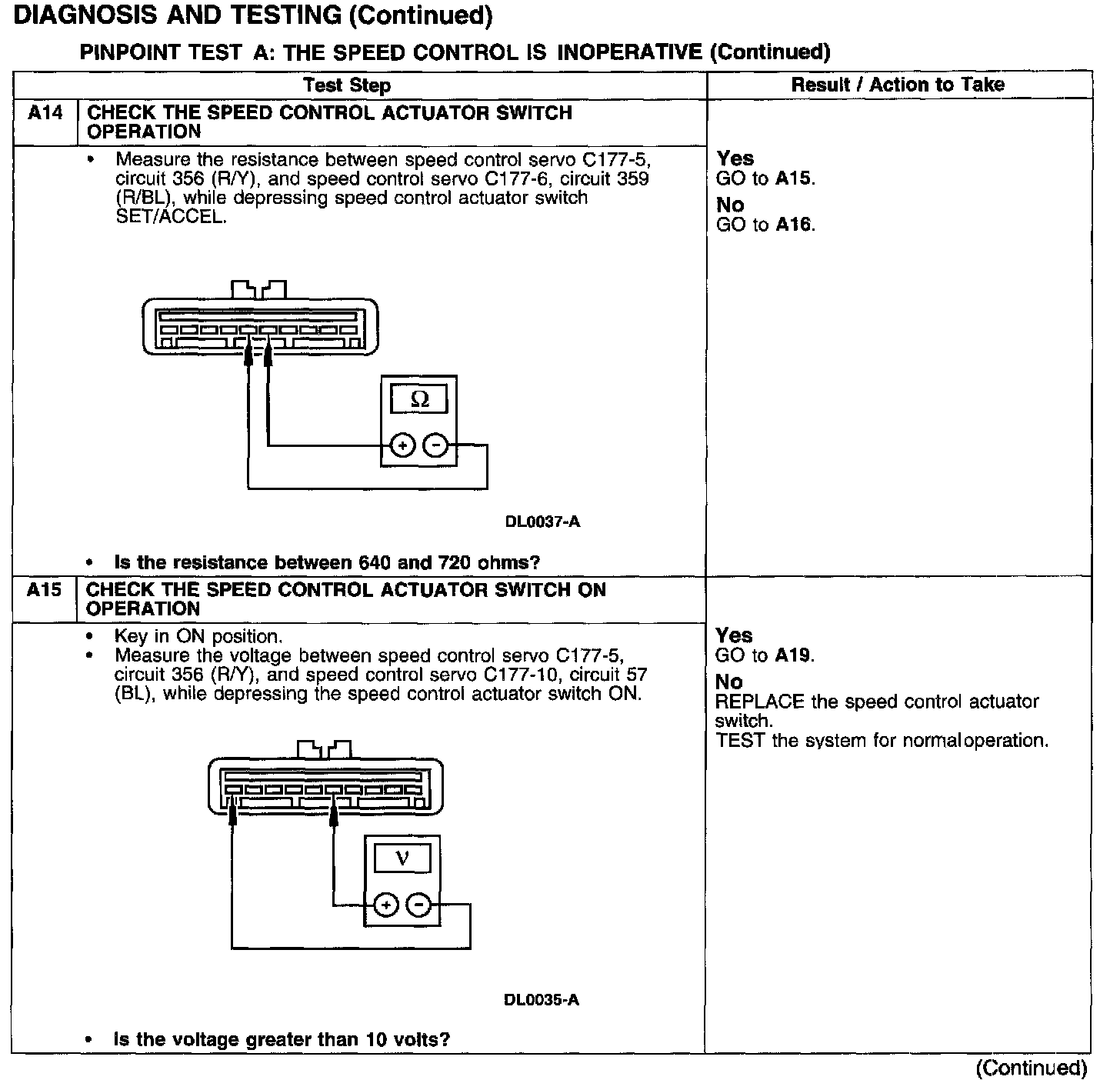

Test A14-A15:

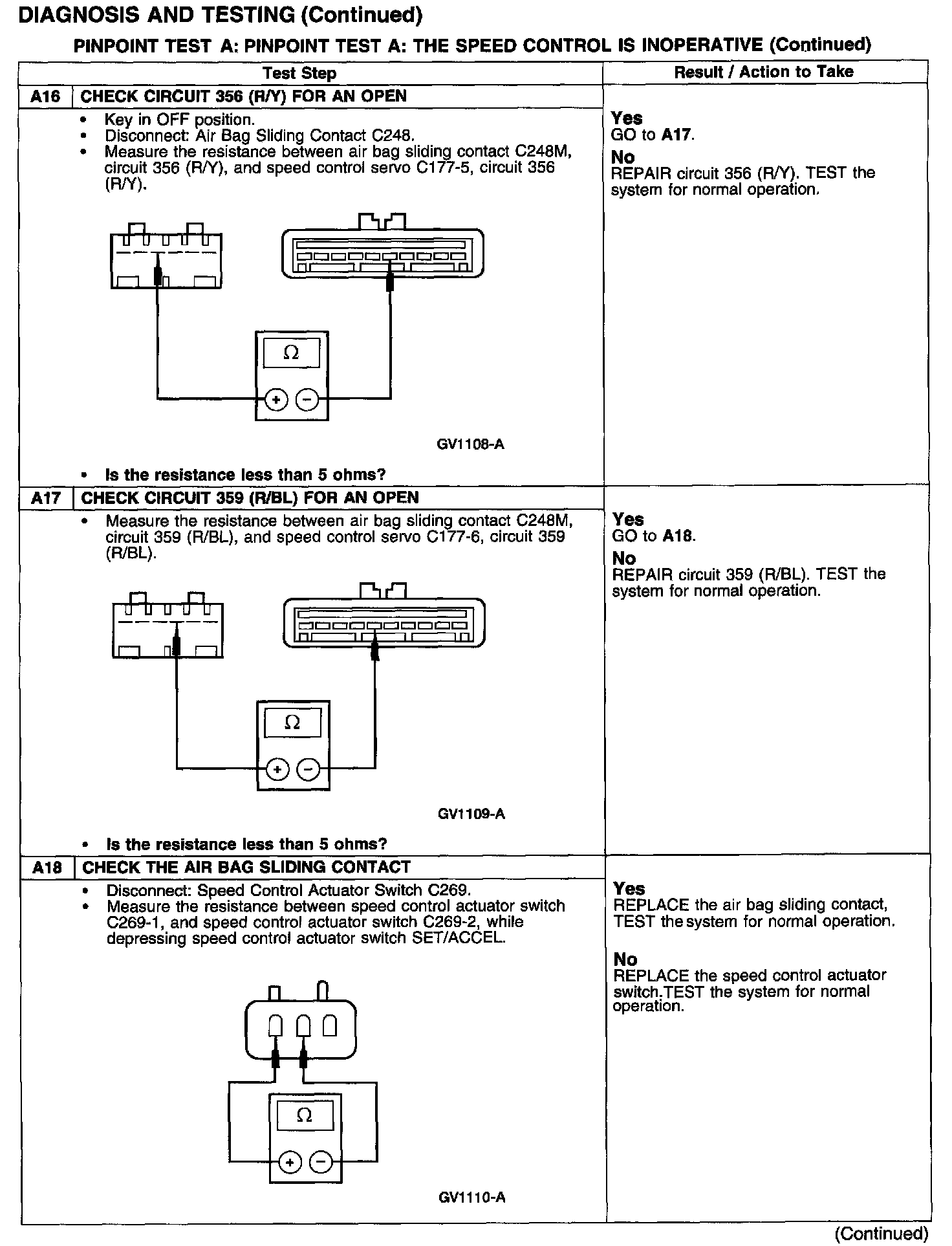

Test A16-A18:

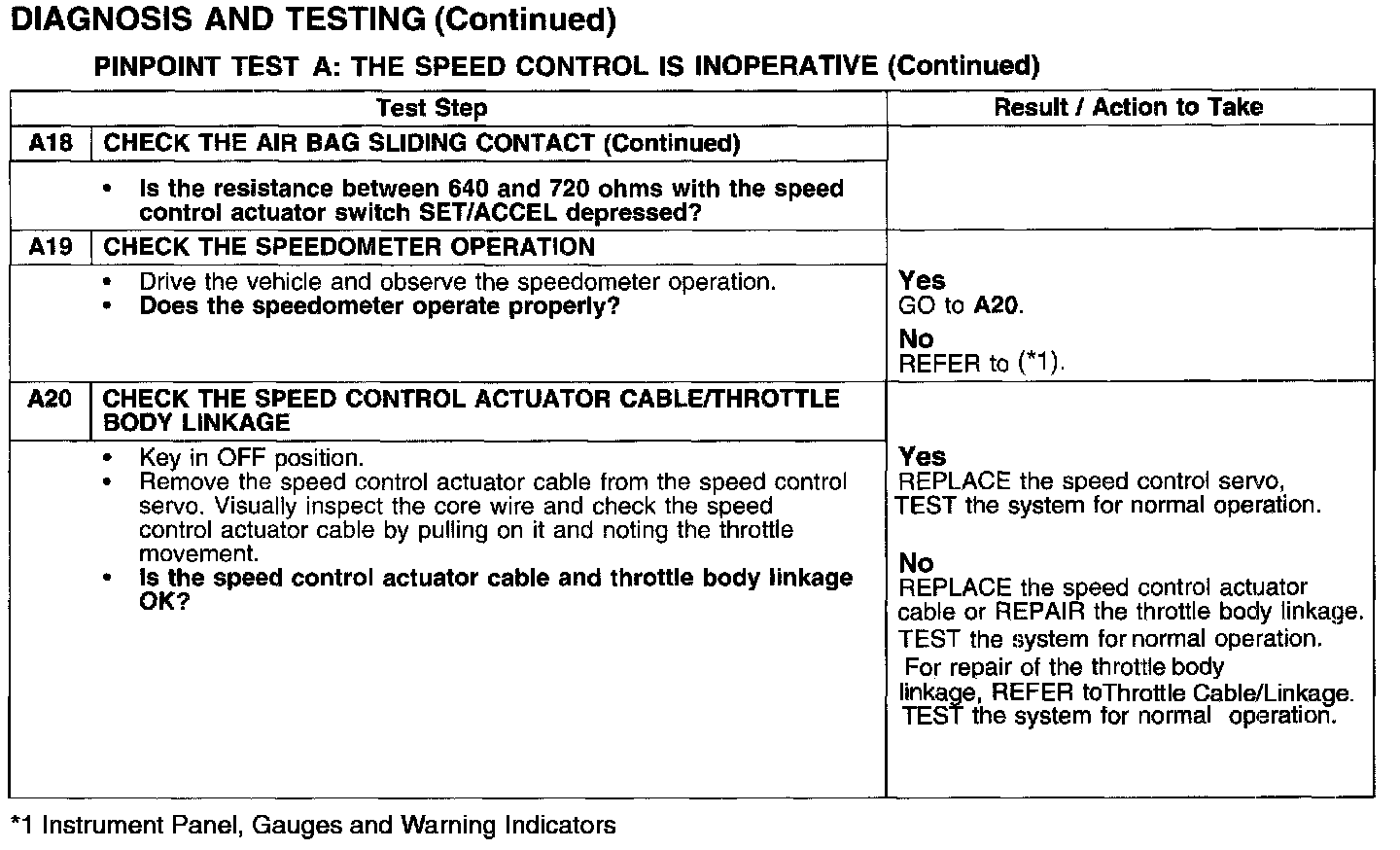

Test A18-A20:
