Locations
>>
Splice Locations
Splice Locations

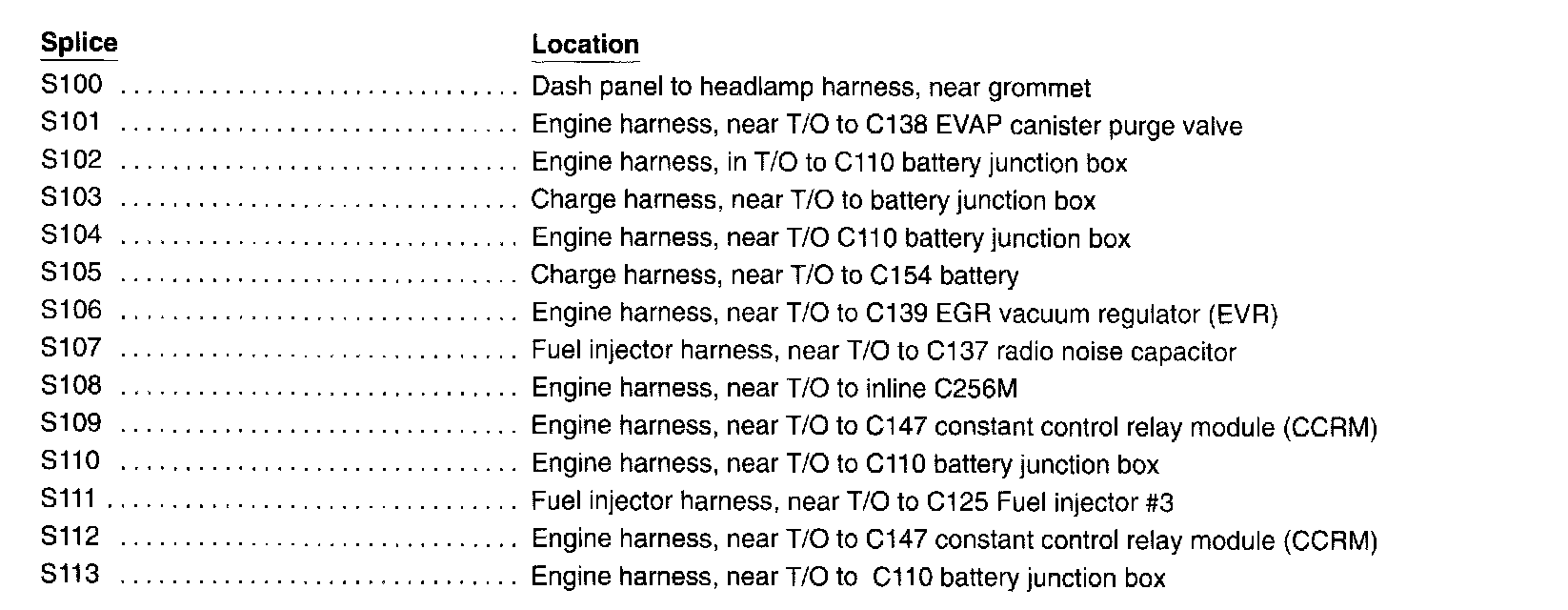

S100 - S113:

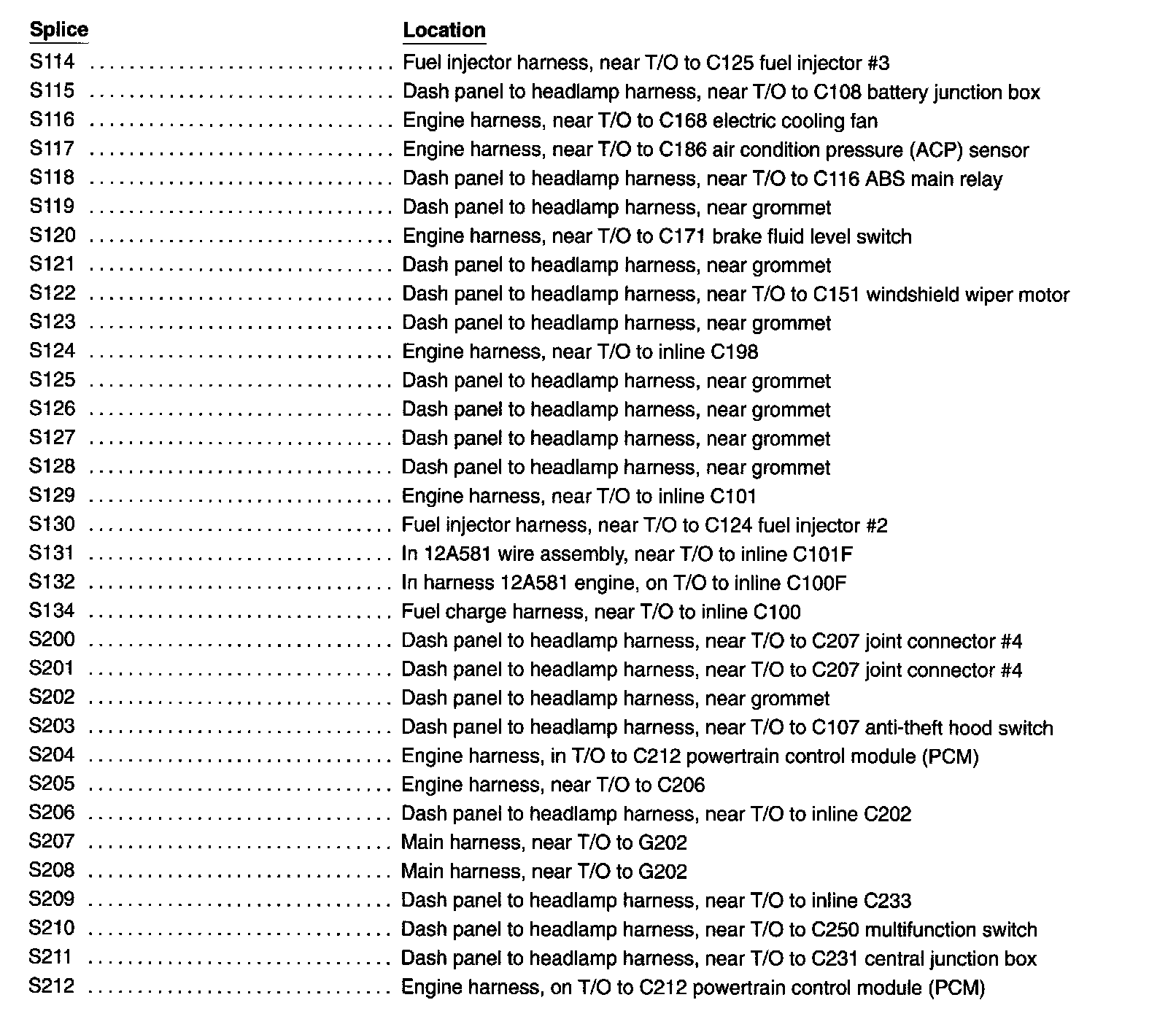

S114 - S212:

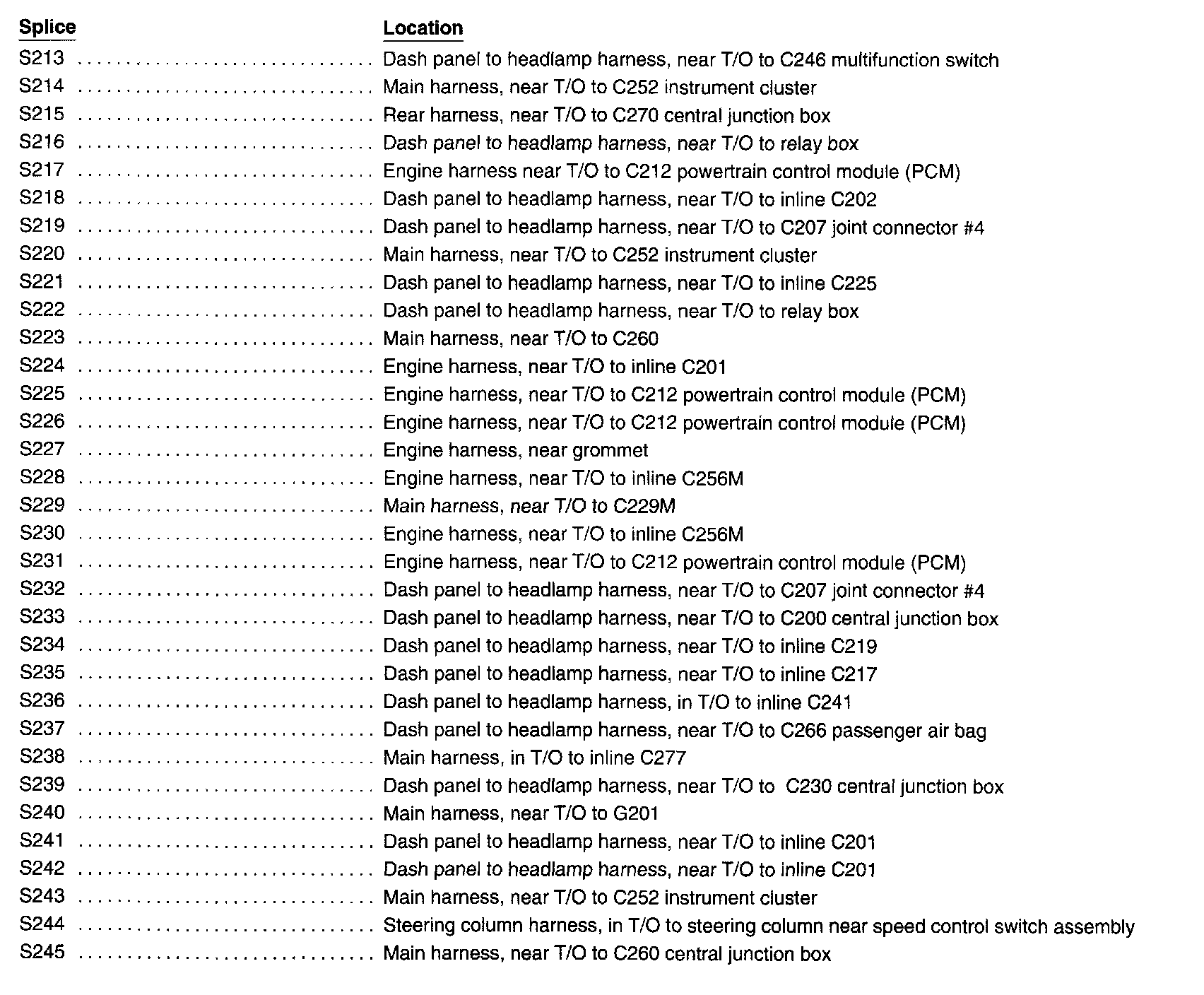

S213 - S245:

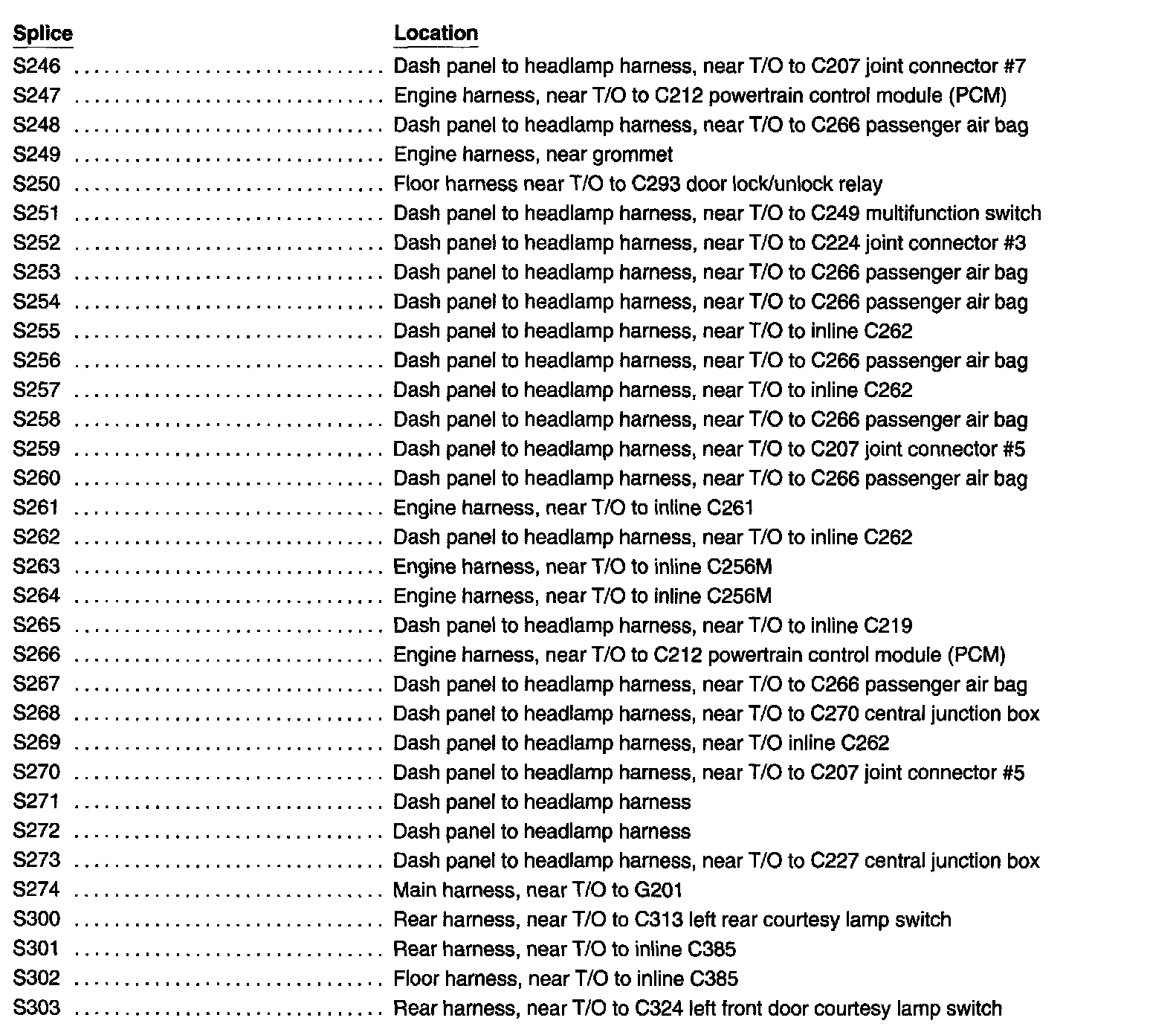

S246 - S303:

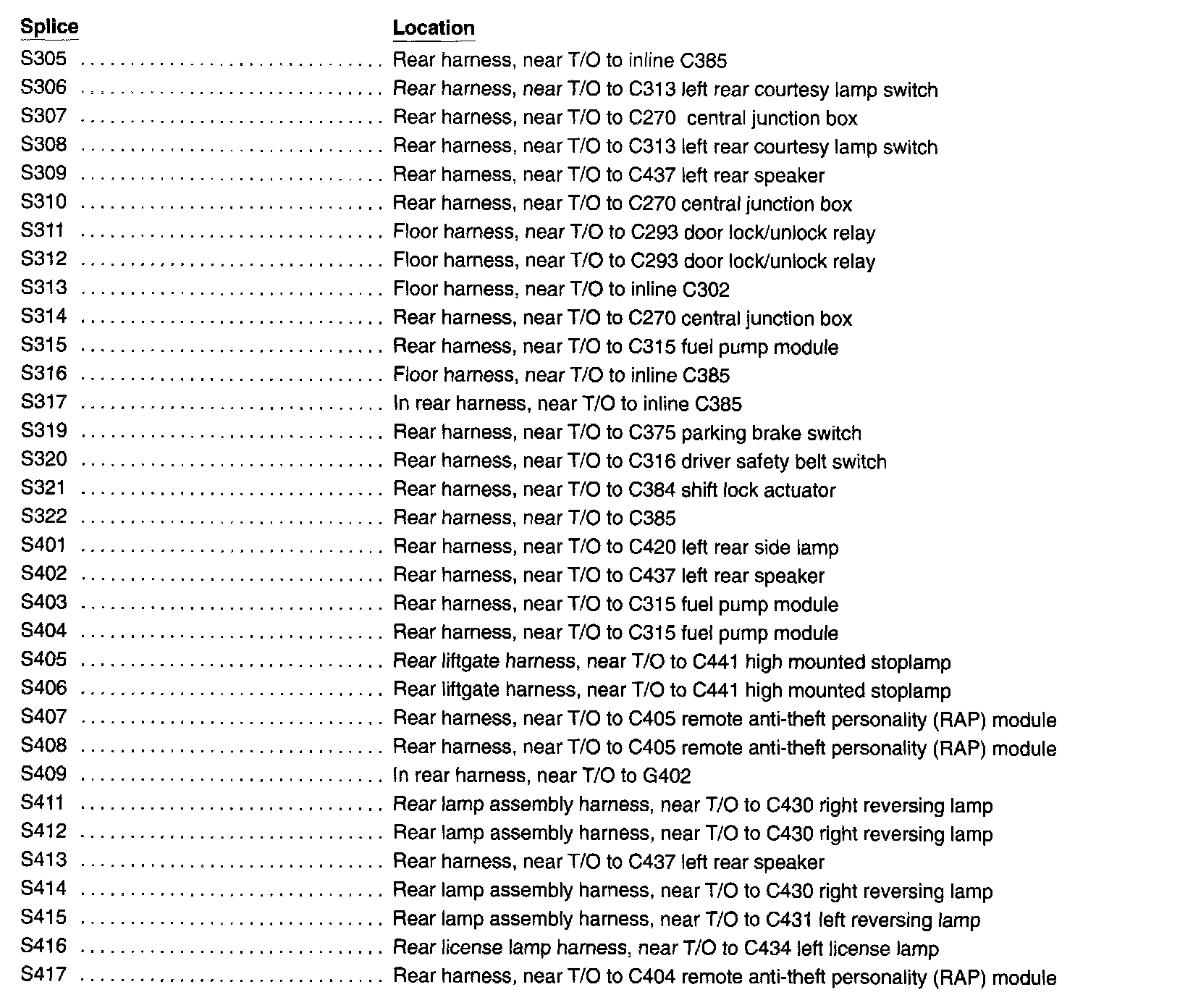

S305 - S417:
S418 - S508:
