Windows: Locations

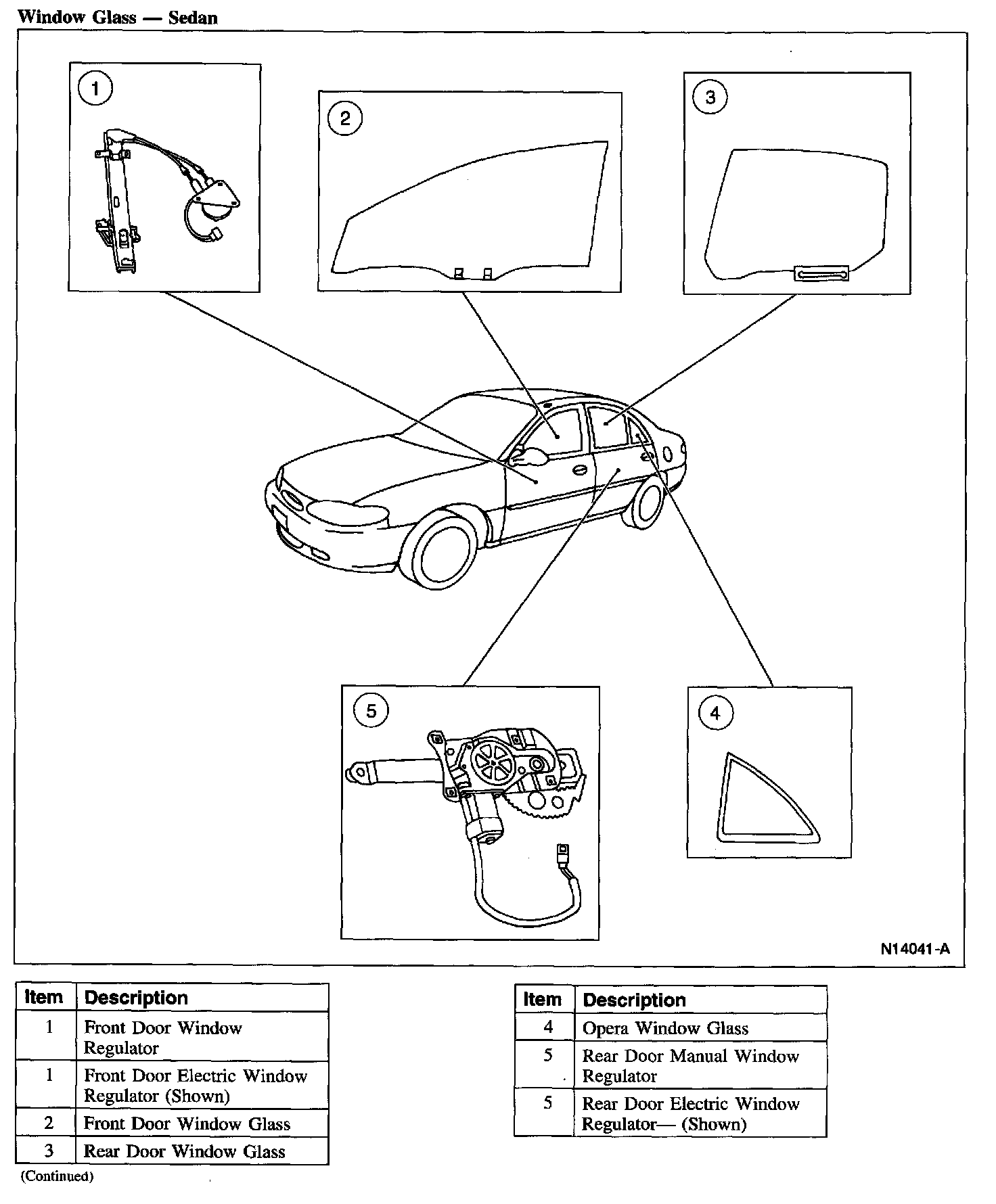

Window Glass:

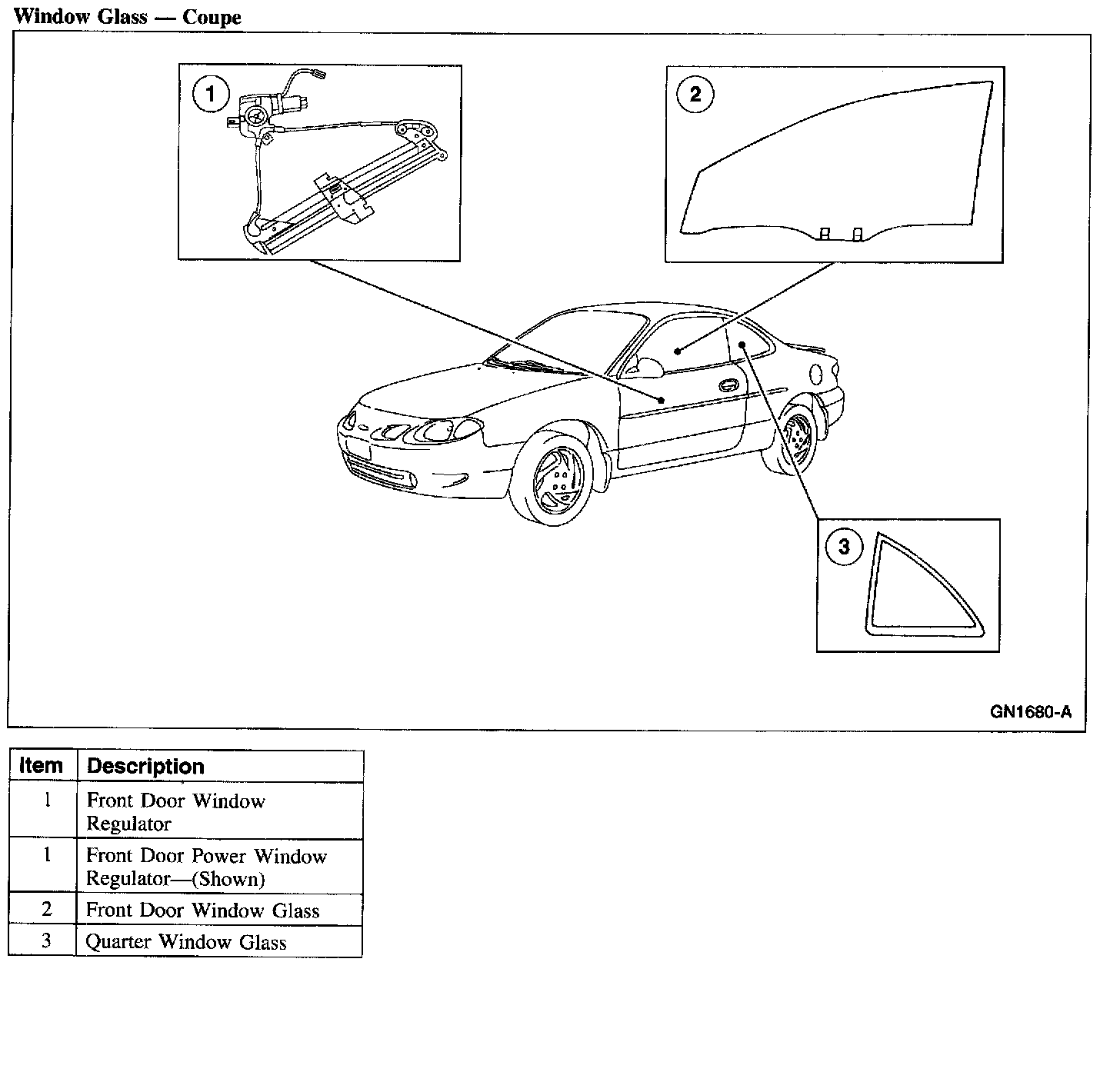

Window Glass:

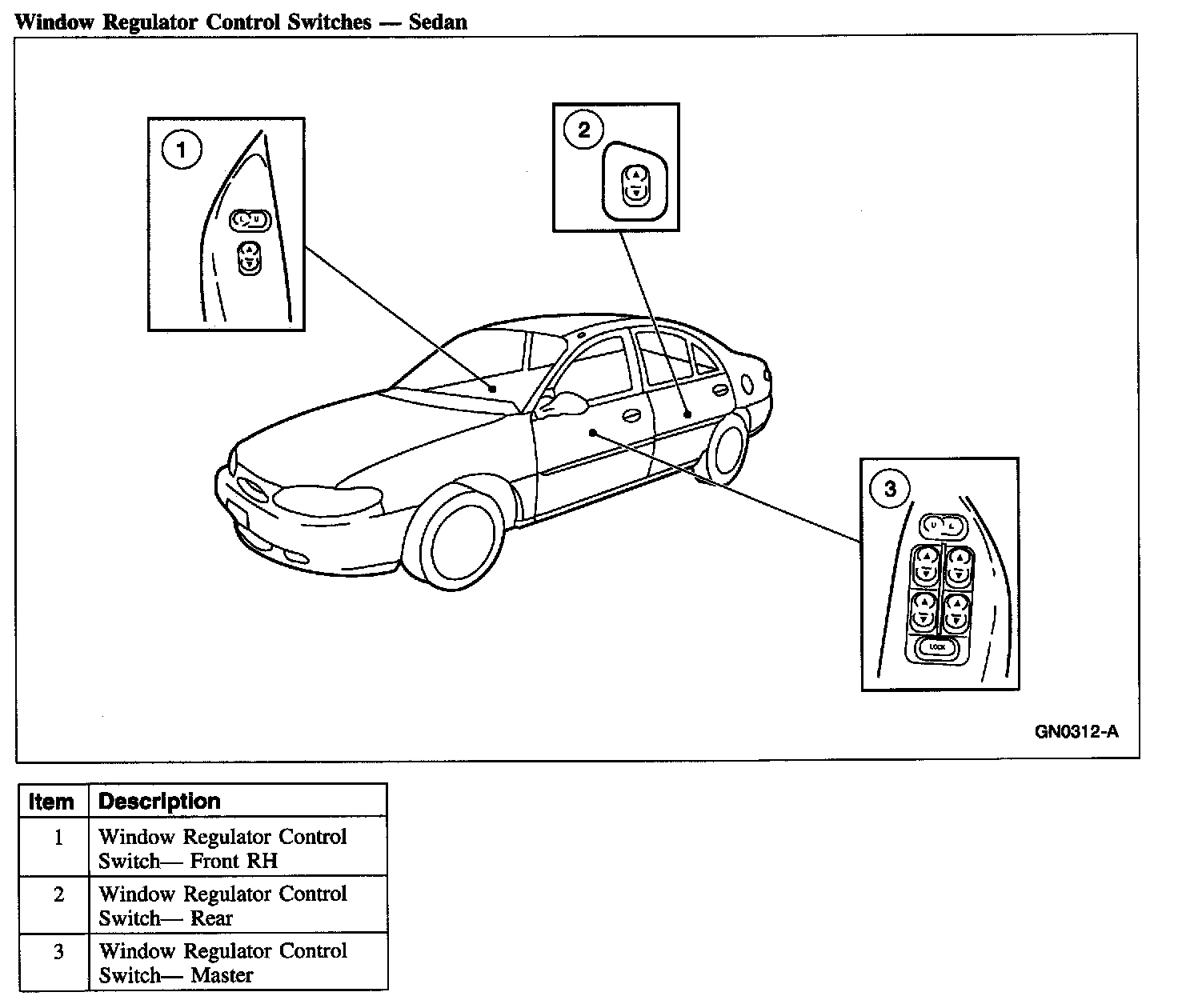

Window Regulator Control Switches:

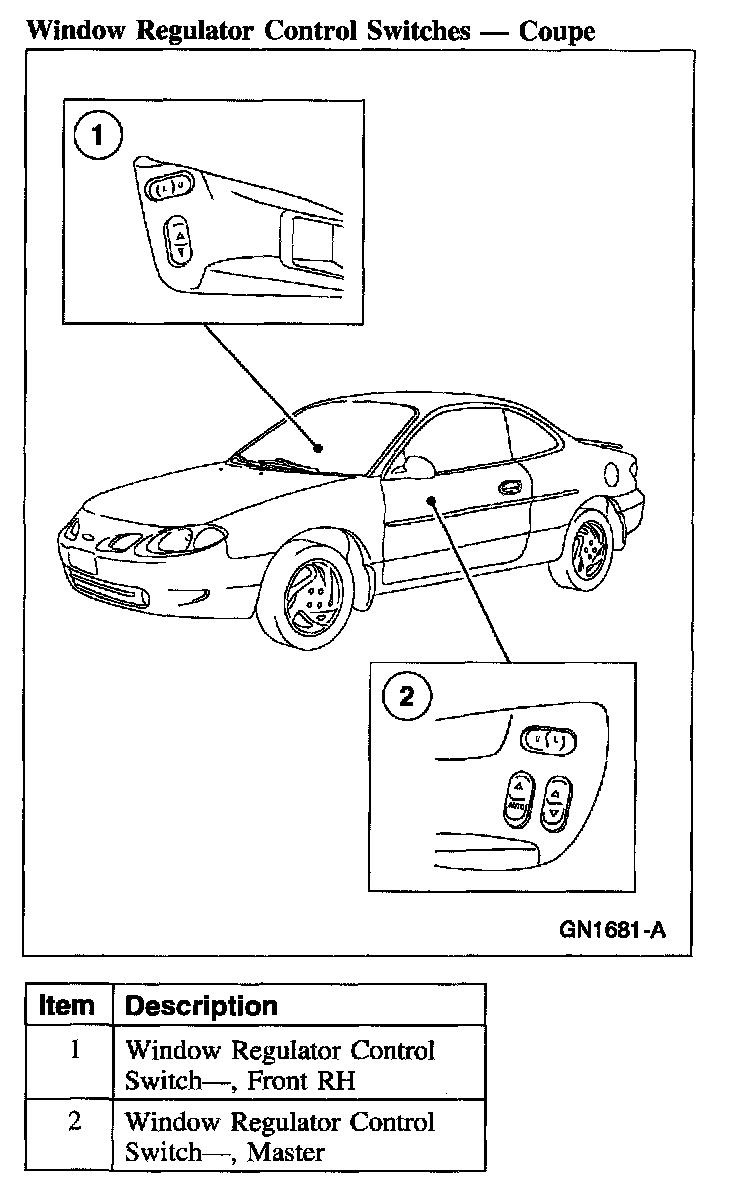

Window Regulator Control Switches:

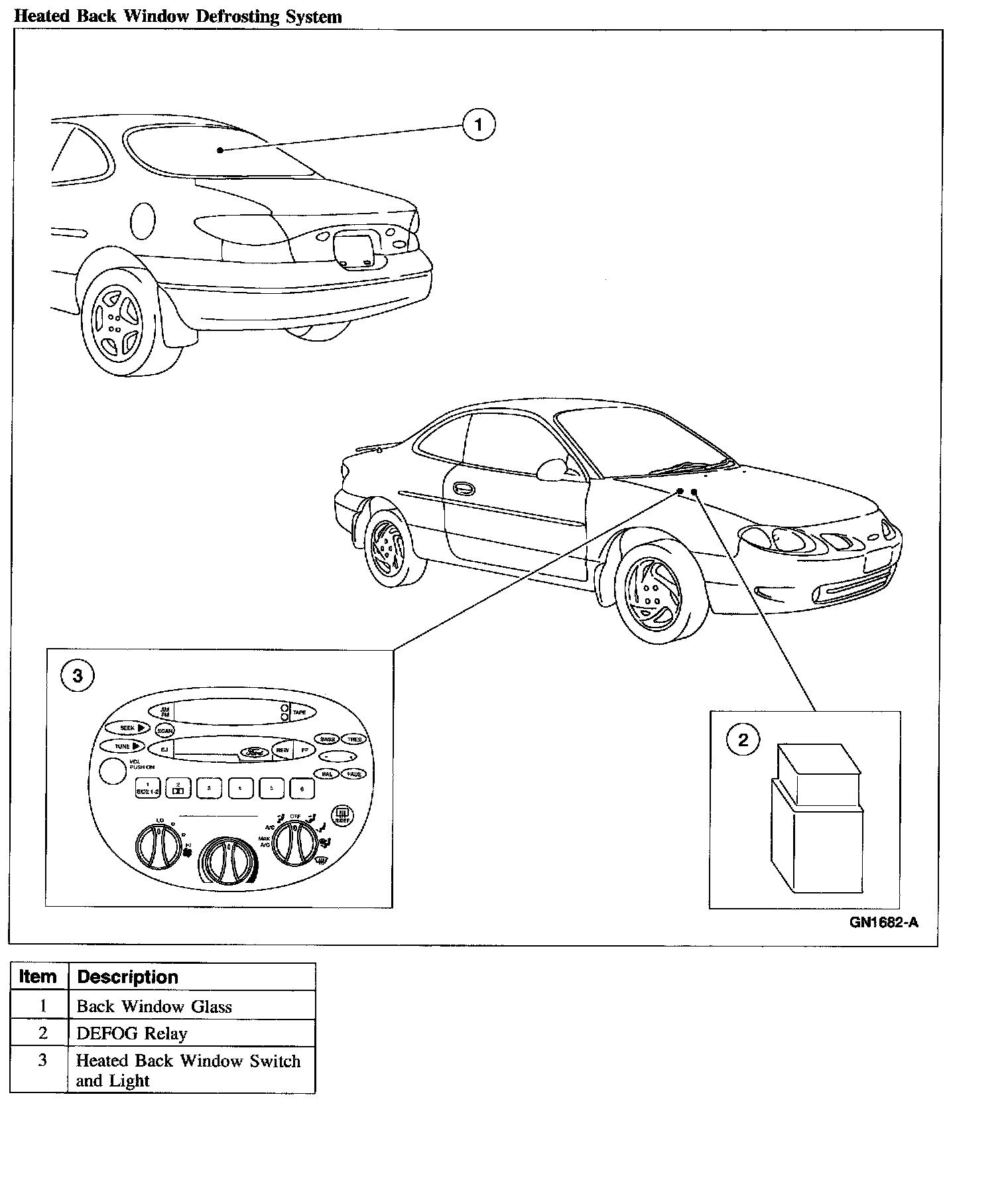

Heated Back Window Defrosting System:
