Engine

Components

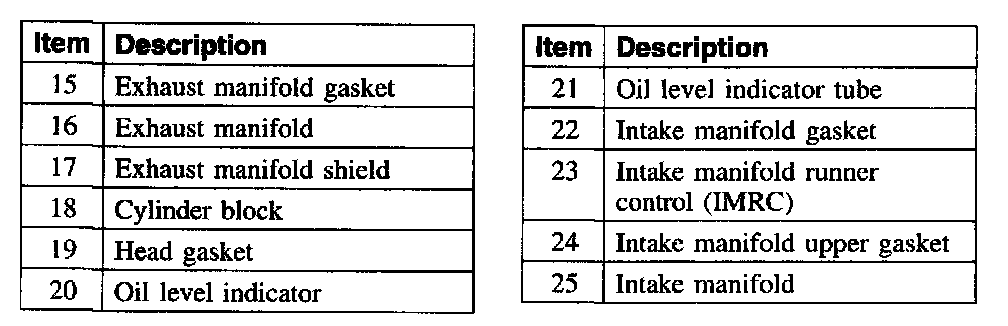

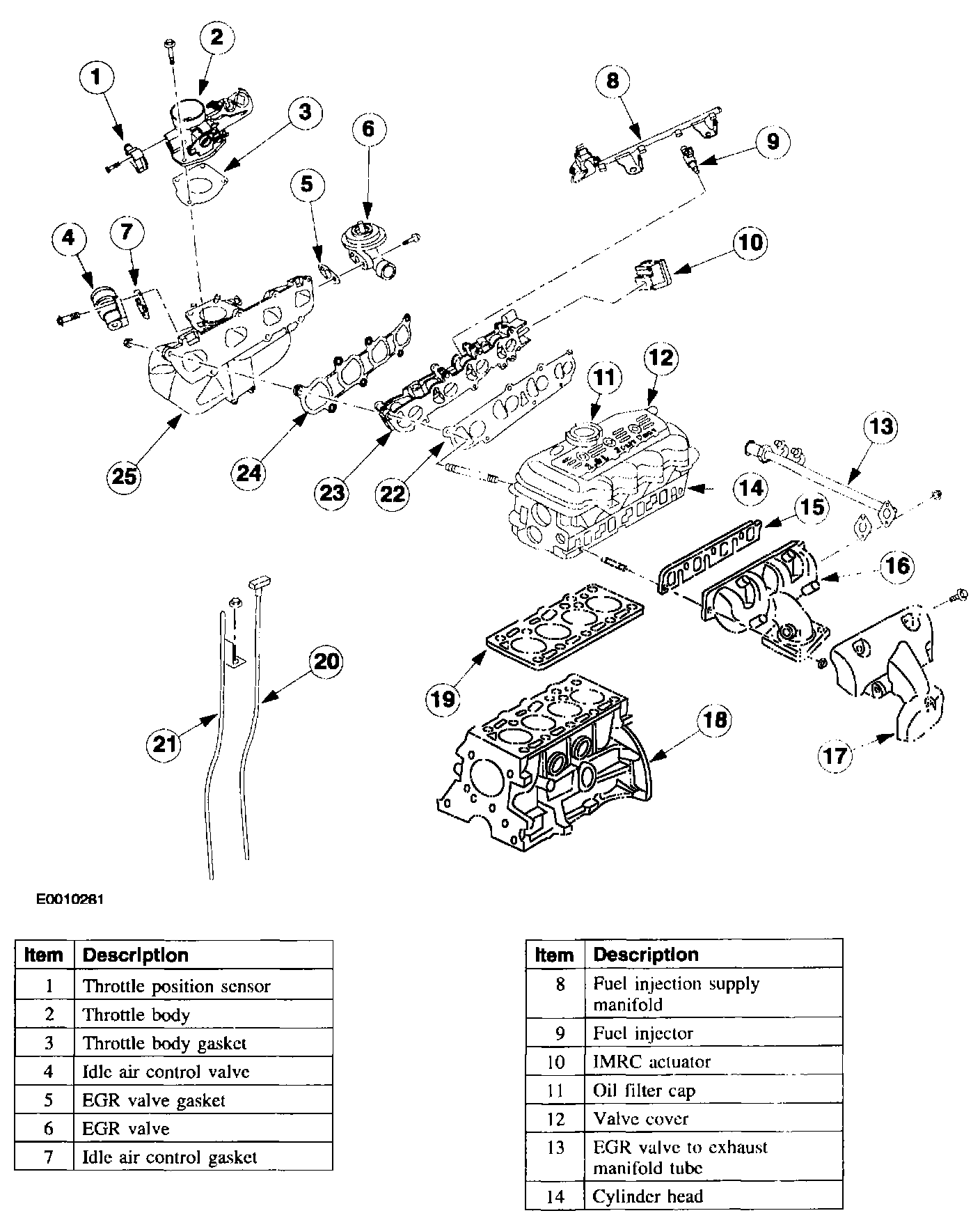

Upper Engine Components

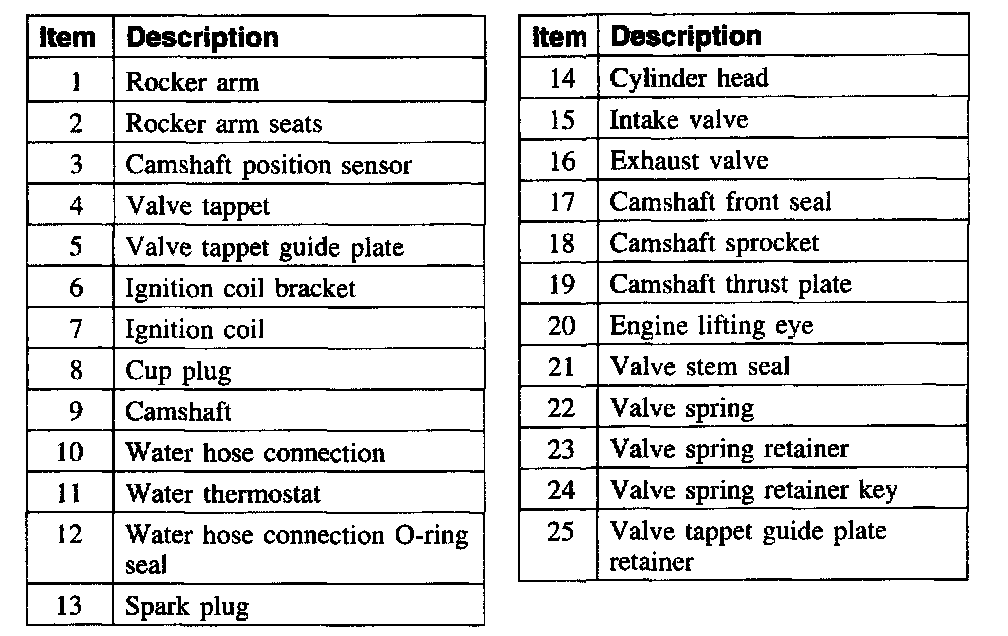

Cylinder Head Components

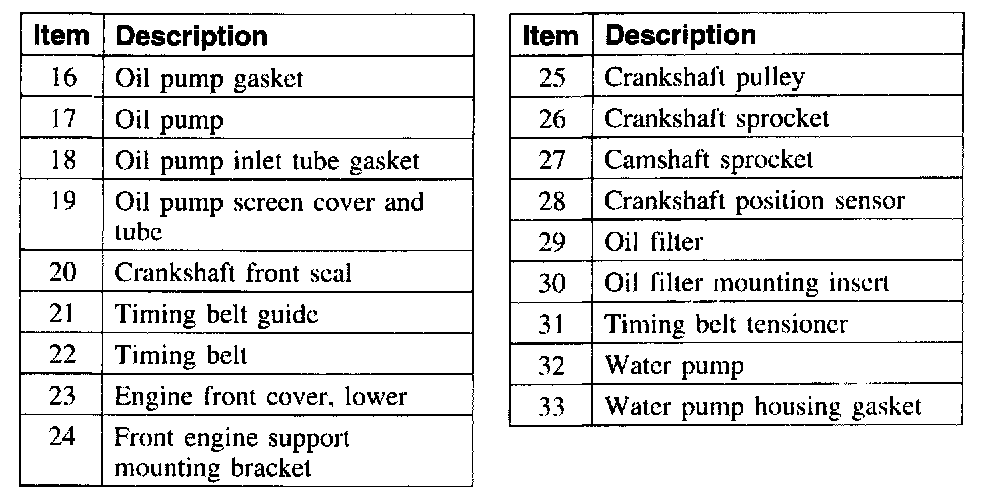

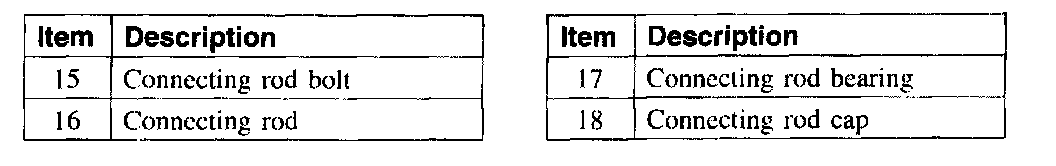

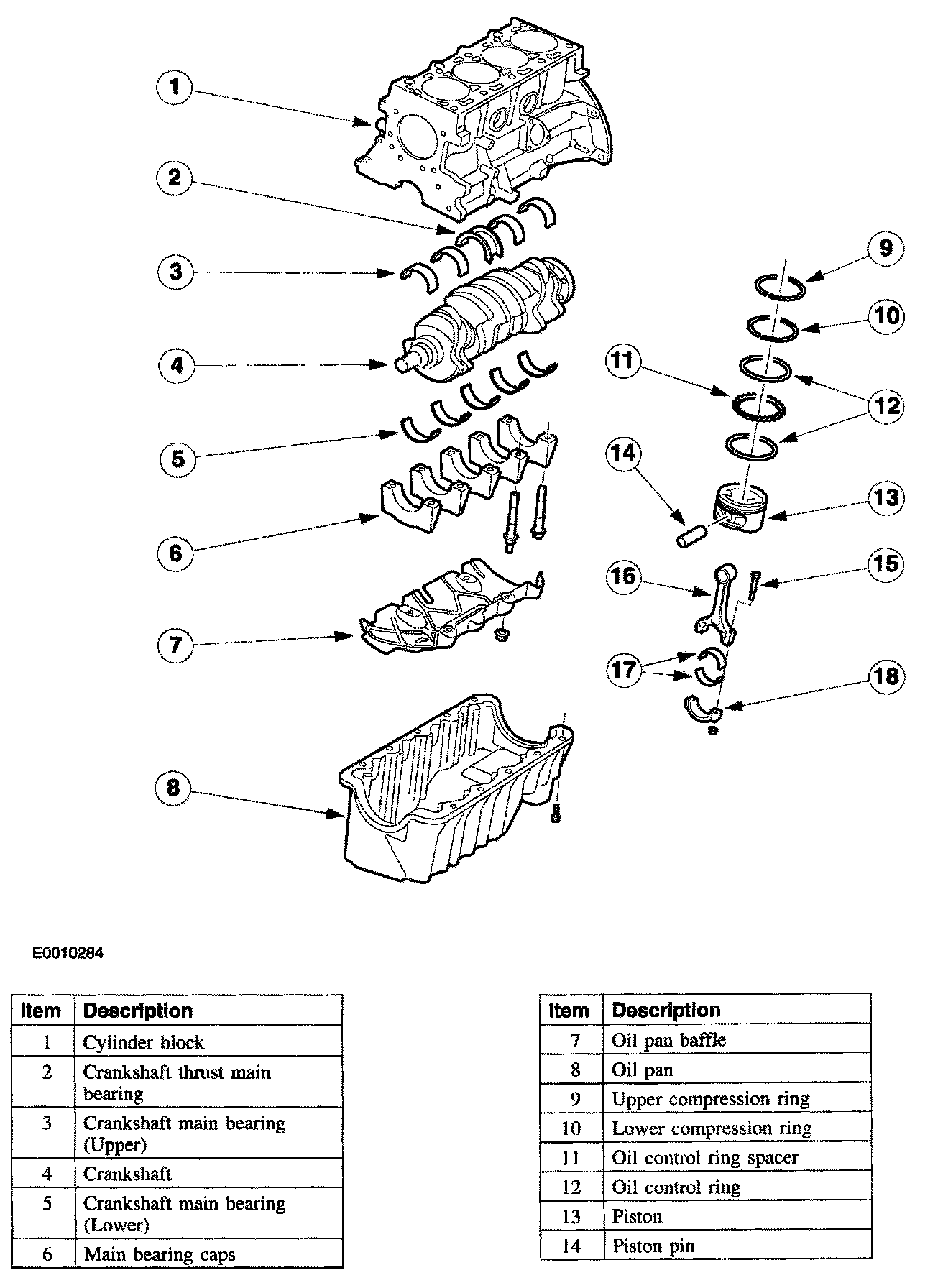

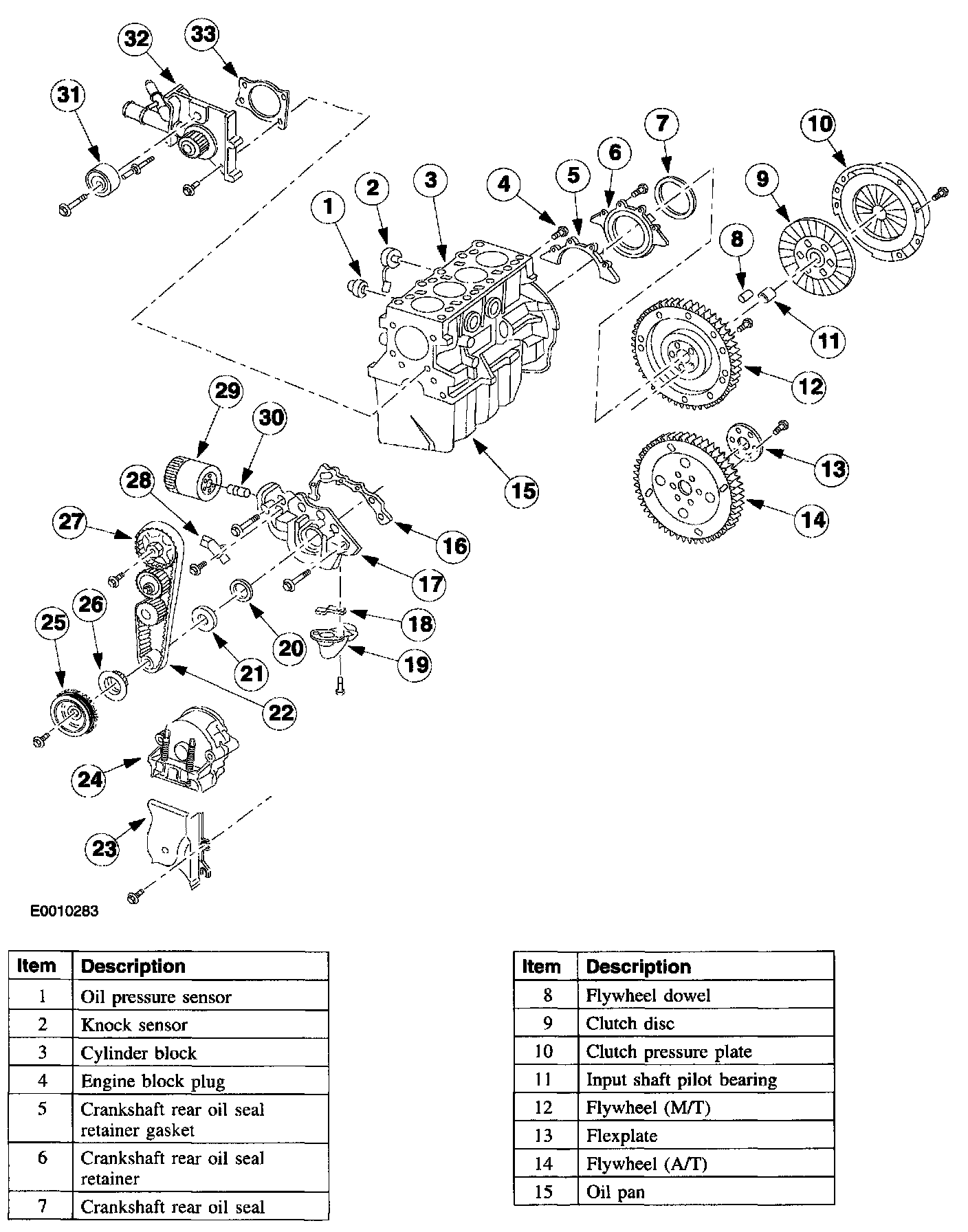

Lower Engine Components








Lower Engine Components
