Bearings, Bushings and Thrust Washers

Bearings, Bushings and Thrust Washers

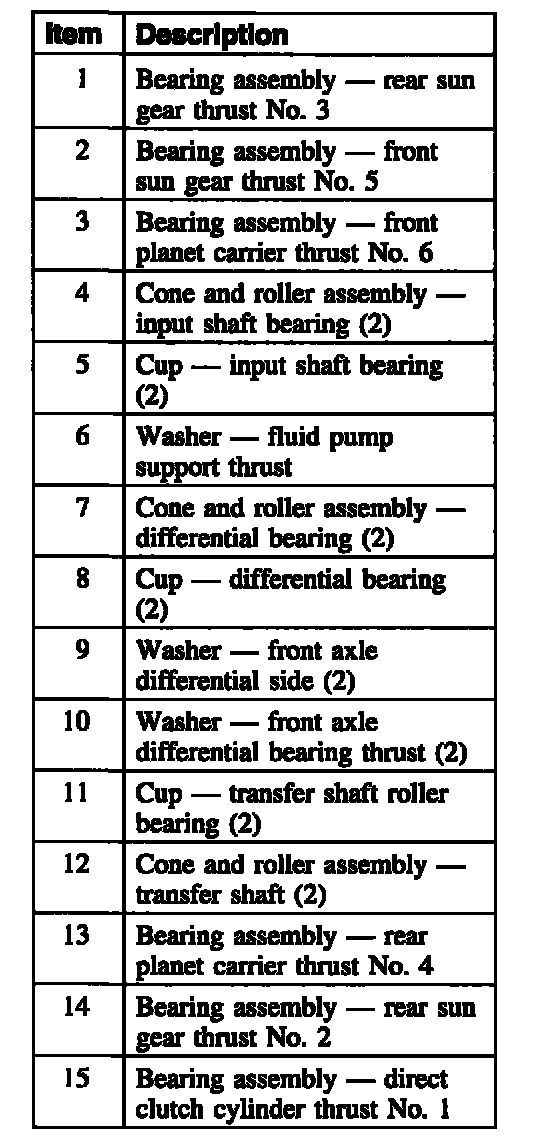

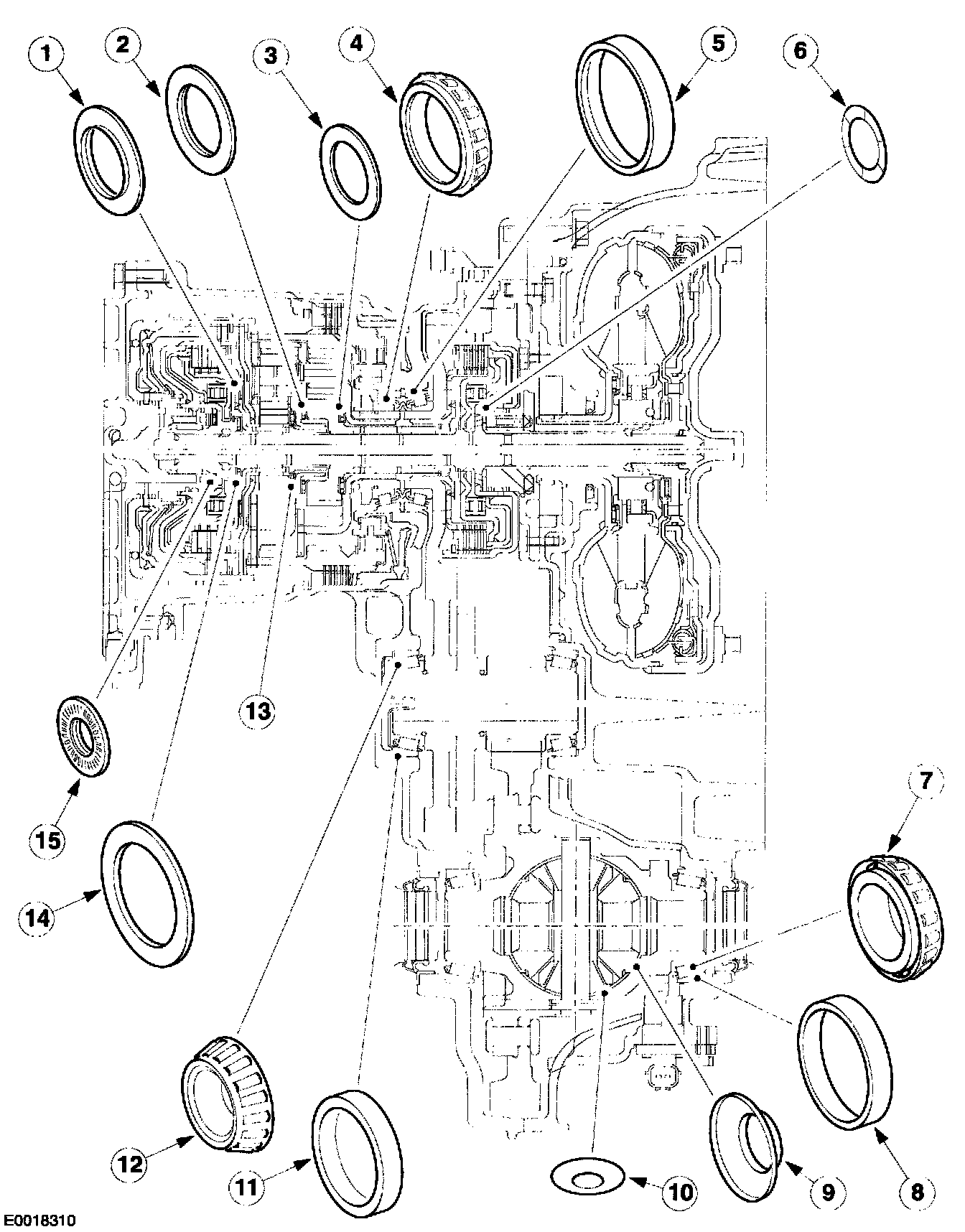

Part 1 Of 2:




Part 2 Of 2:
