Focus L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Seals, Rings and Gaskets
Seals, Rings and Gaskets
Seals, Rings and Gaskets

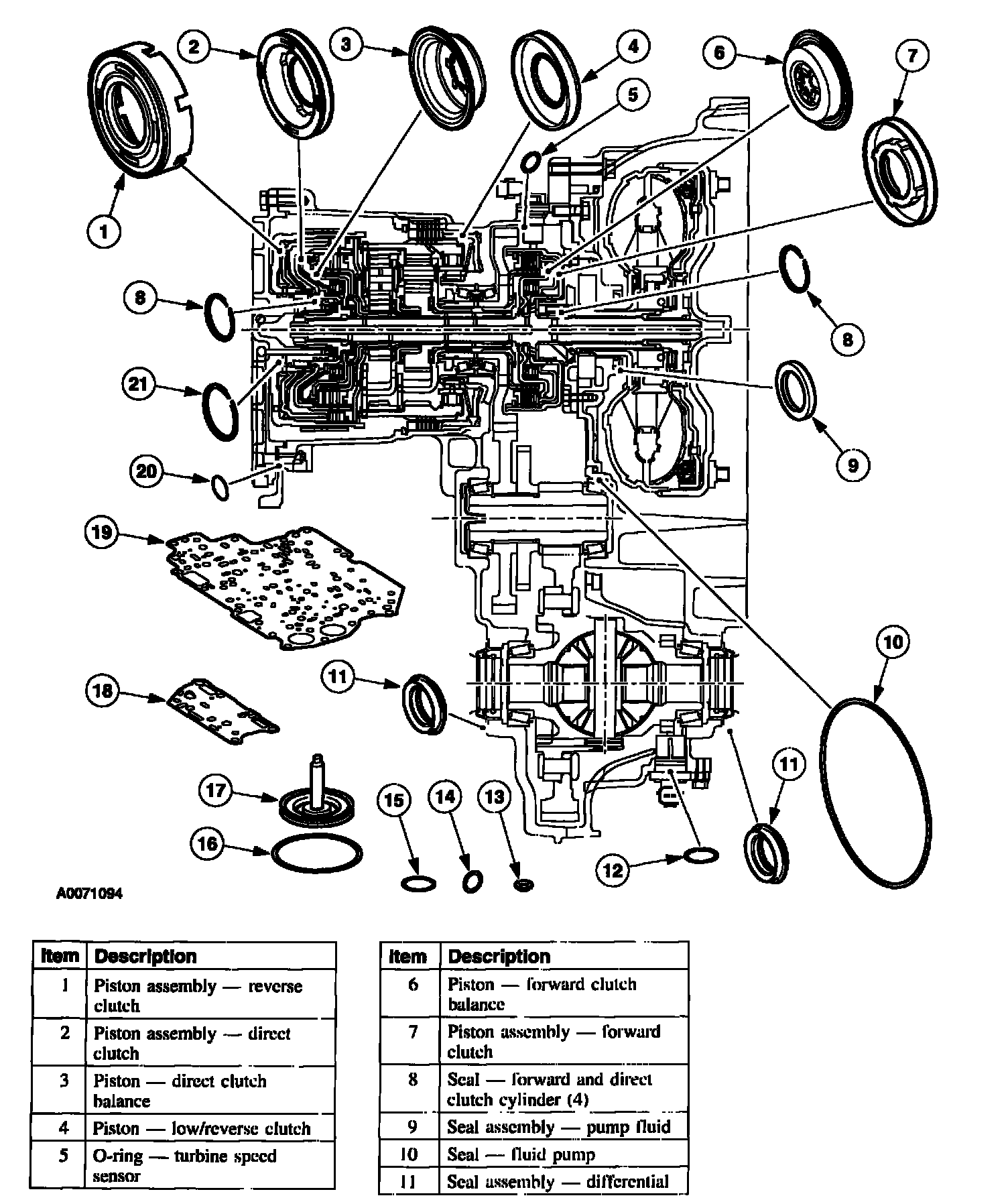

Part 1 Of 2:

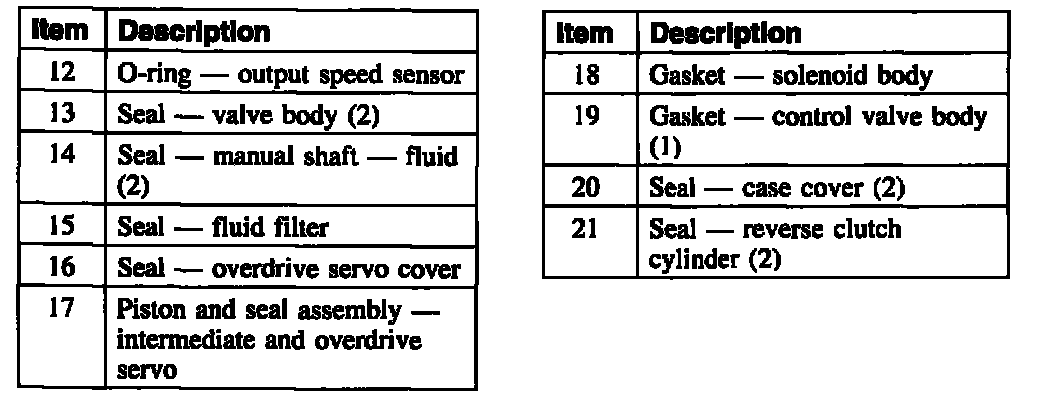

Part 2 Of 2:
