Service Port HVAC: Locations

Alldata Editors Note: Ford does not provide locations for the A/C Service Ports. Alldata users have reported these locations to be correct.

A/C Service Ports

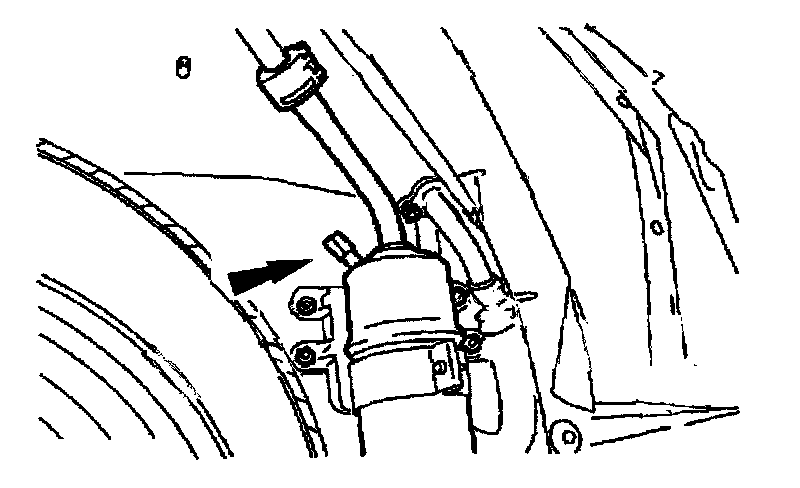

Low Side

Located in passenger side wheel arch.






- Raise the vehicle.

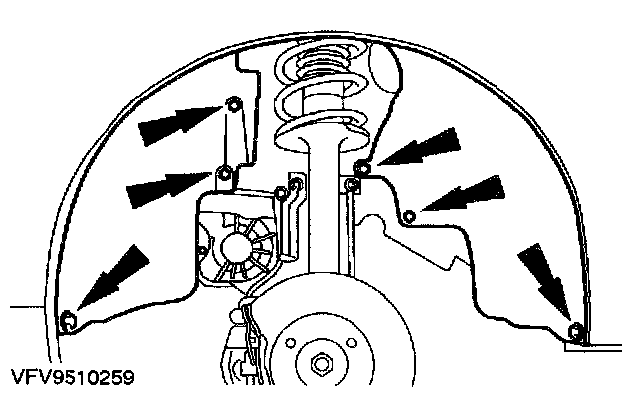

- Detach the wheel arch trim panel on the passenger's side (driver's side shown).
- Remove six bolts.
- Remove the trim panel.

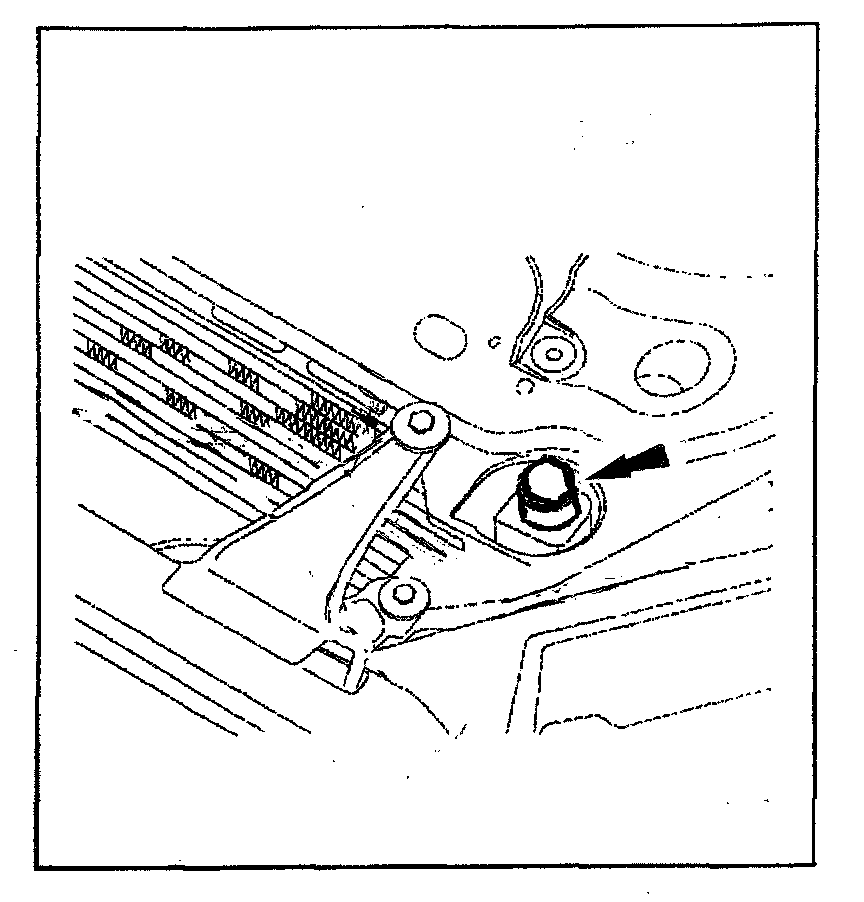

High Side

Located in engine compartment, drivers side radiator support.
