Operation CHARM: Car repair manuals for everyone.
Home >> Ford >> 2003 >> Focus L4-2.3L VIN Z >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Locations

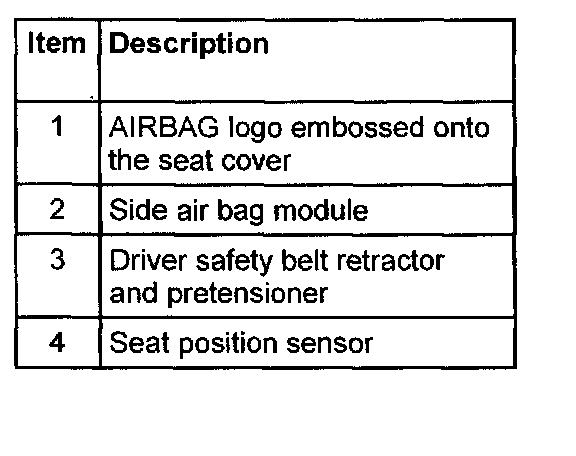

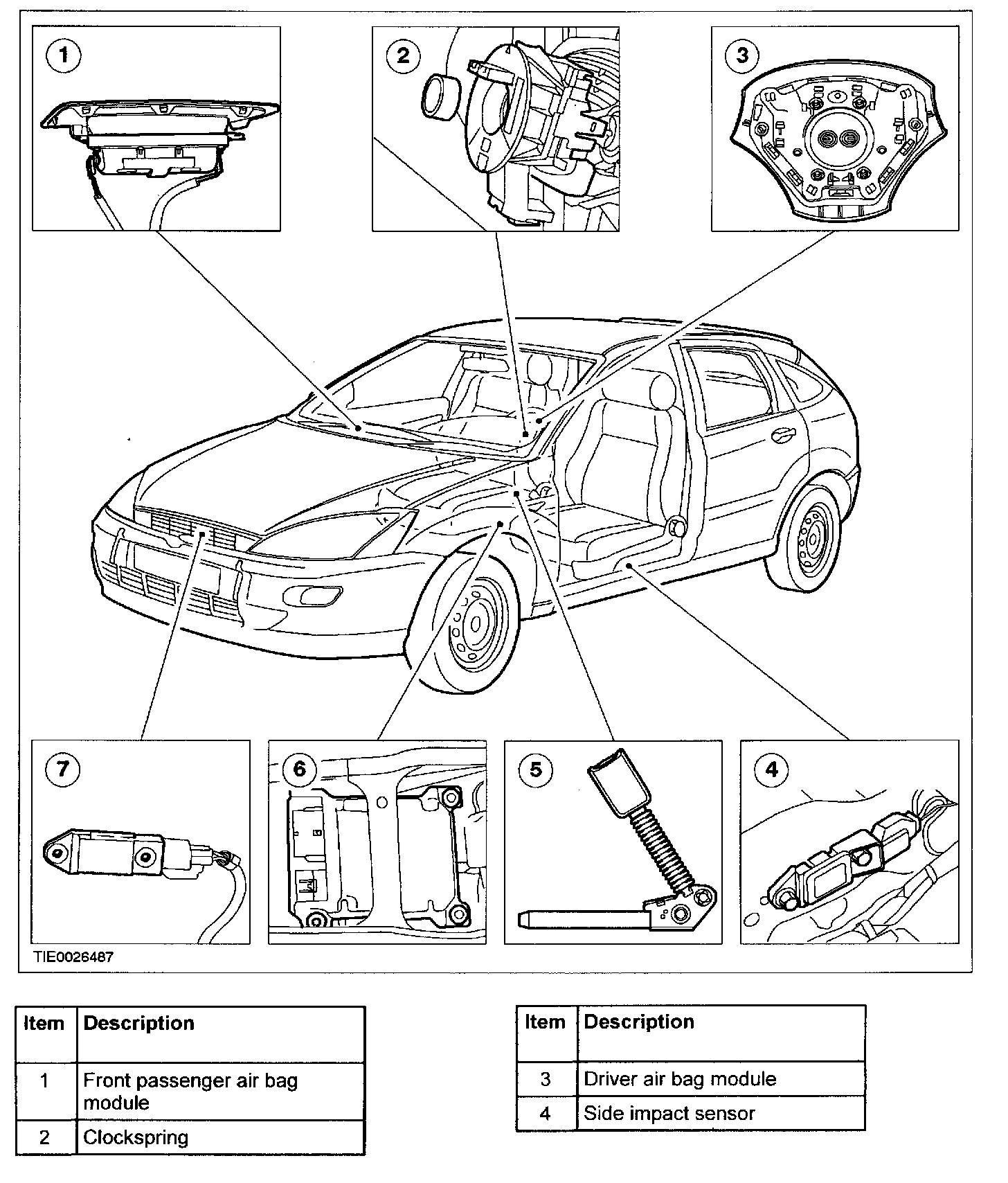

Air Bag Systems: Locations

Part 1:






Part 2:






Part 1:






Part 2:
