Svt

REMOVAL
1. Remove the intake manifold.

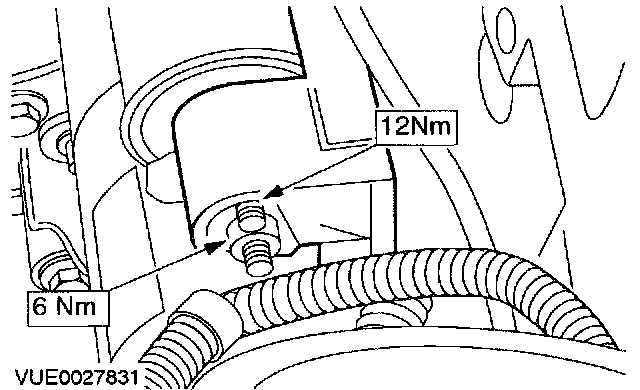

2. Disconnect the starter motor electrical connectors.

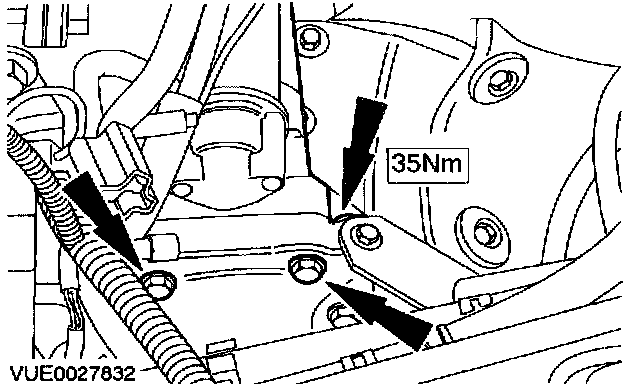

3. Remove the starter motor.

INSTALLATION
1. To install, reverse the removal procedure.
