Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2003
>>
Mustang V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>

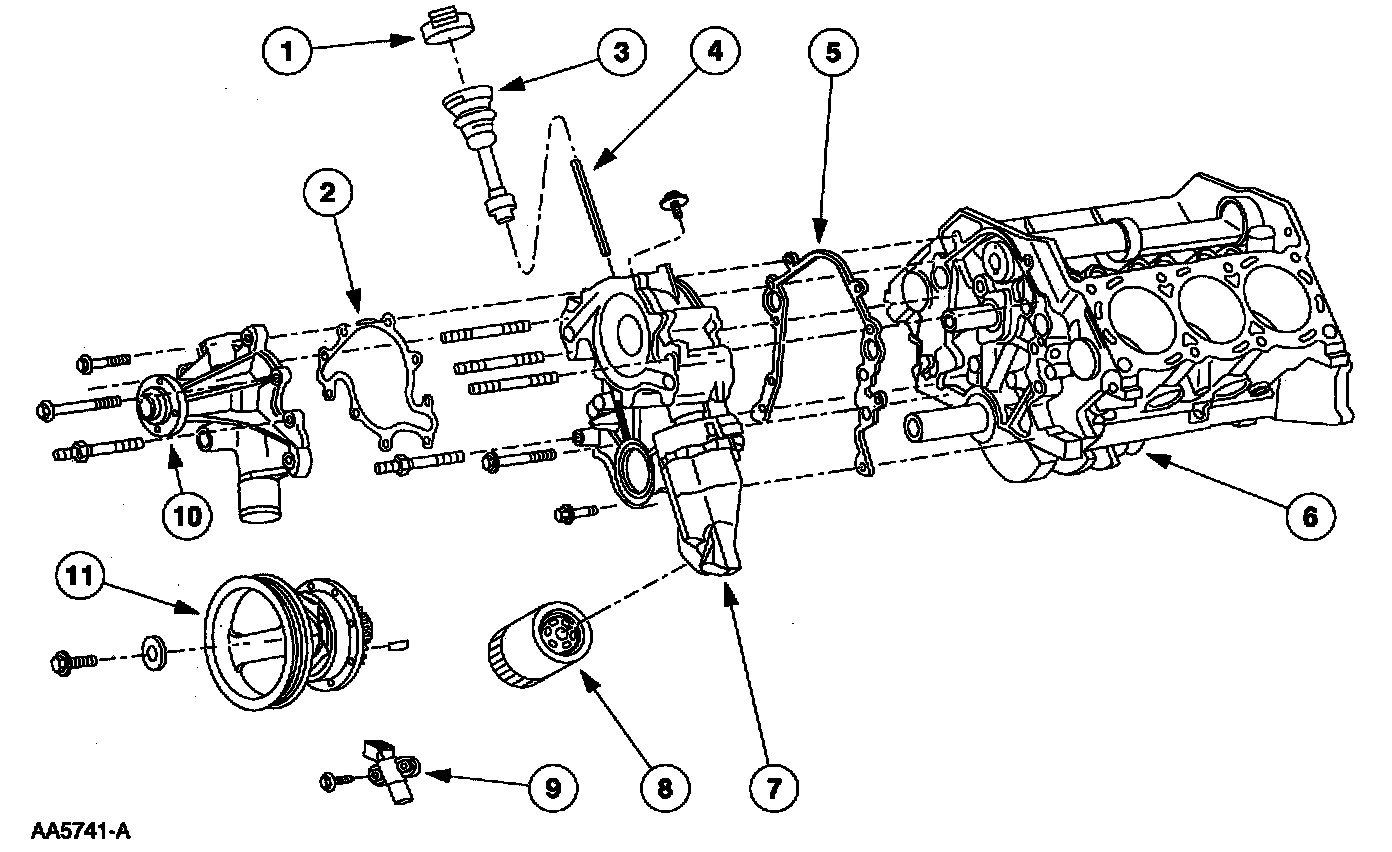

Engine Front Cover Components
Engine Front Cover Components
Engine Front Cover Components

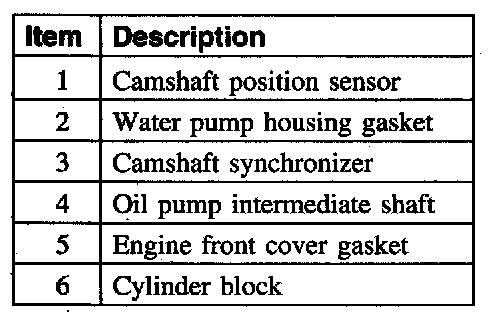

Part 1 Of 3:

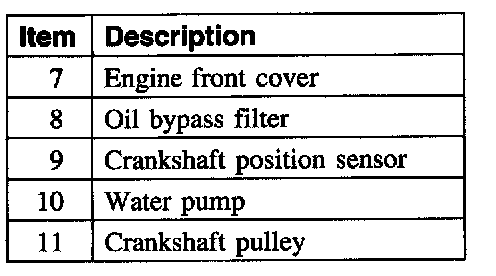

Part 2 Of 3:
Part 3 Of 3:
