Test C
Test C

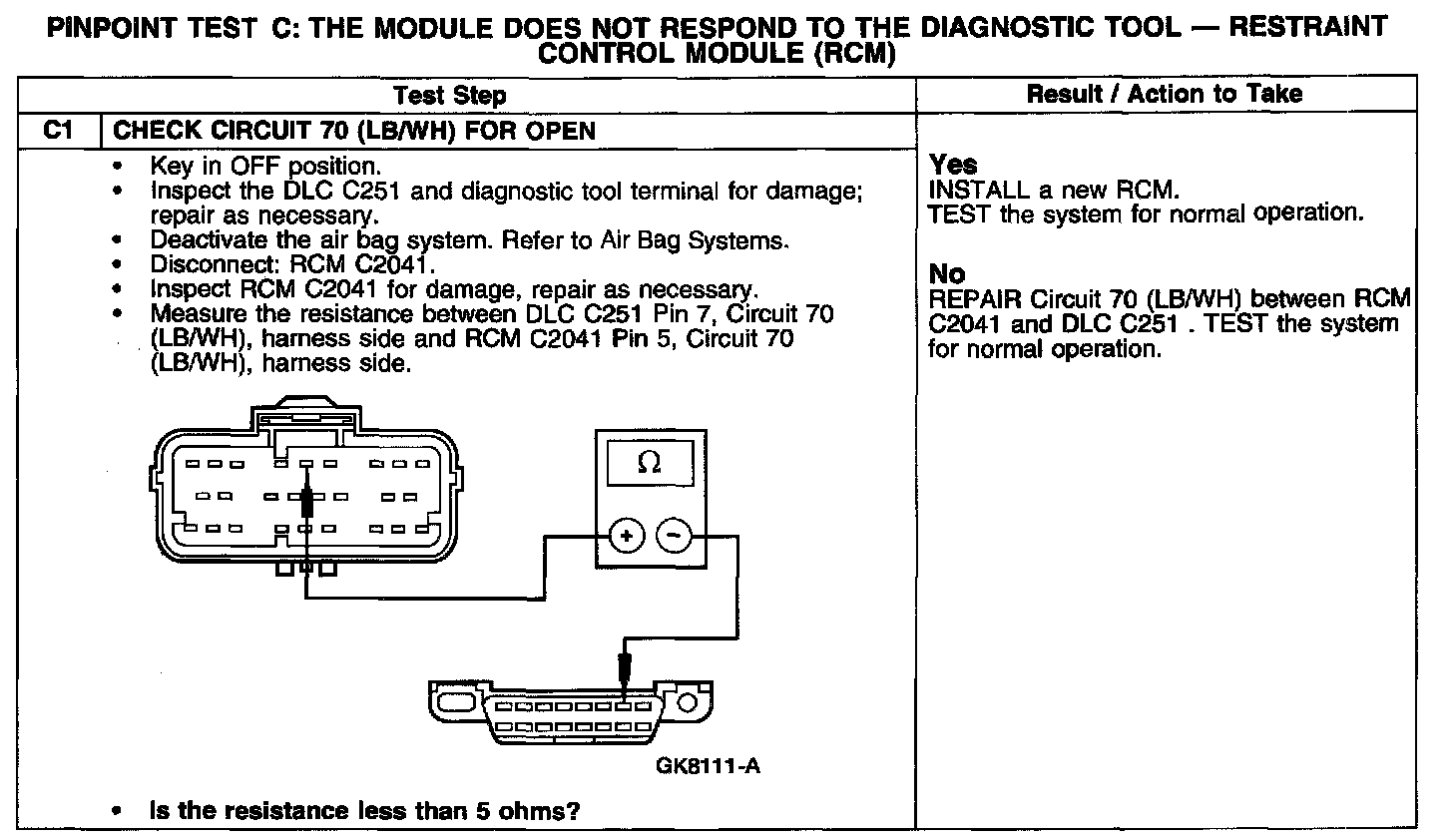

PINPOINT TEST C: THE MODULE DOES NOT RESPOND TO THE DIAGNOSTIC TOOL - RESTRAINT CONTROL MODULE (RCM)
Test C1:
