Home >> Ford >> 2003 >> Mustang V8-4.6L SC VIN Y >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 46

Diagram Set 46

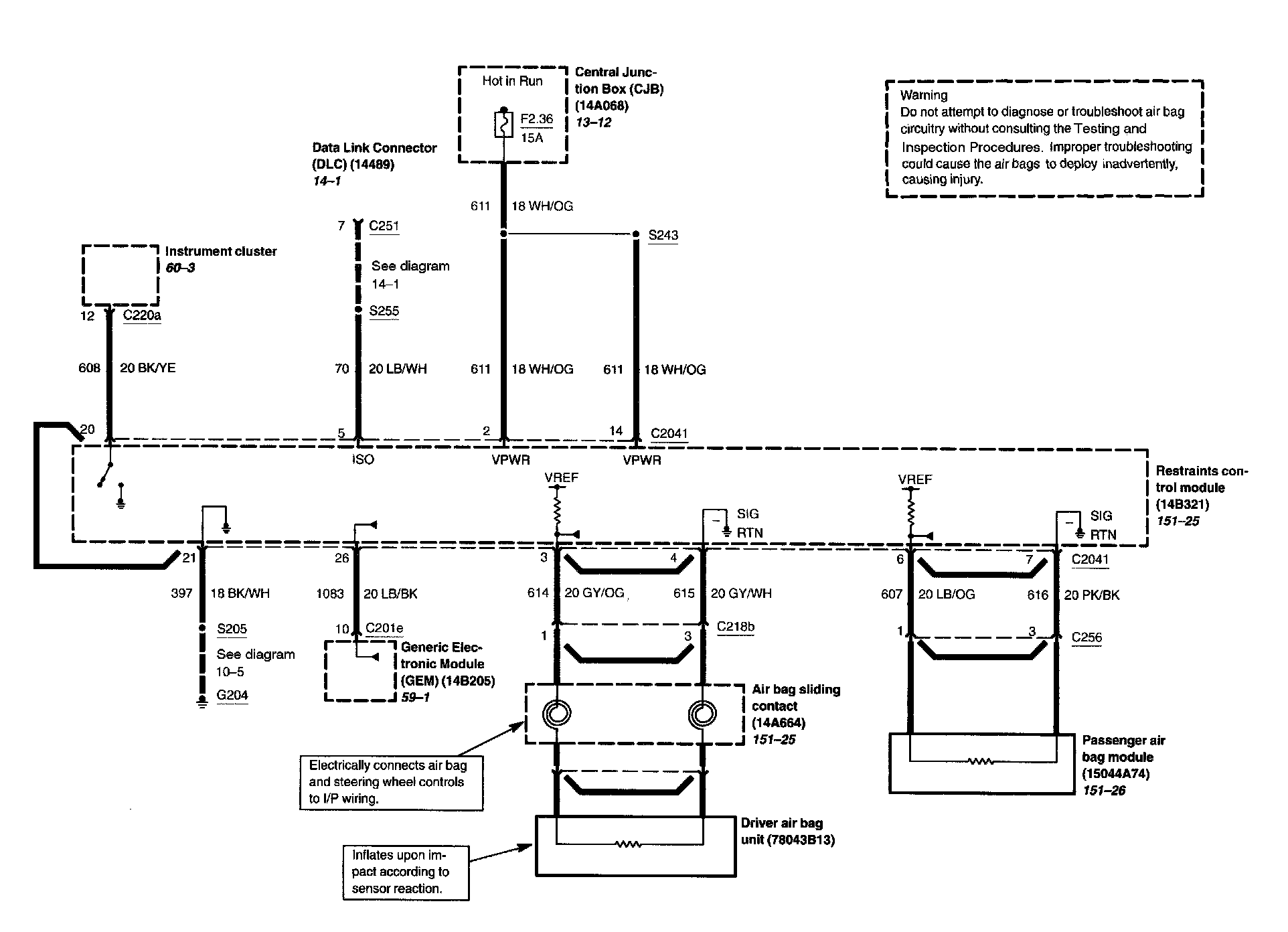

46-1:
