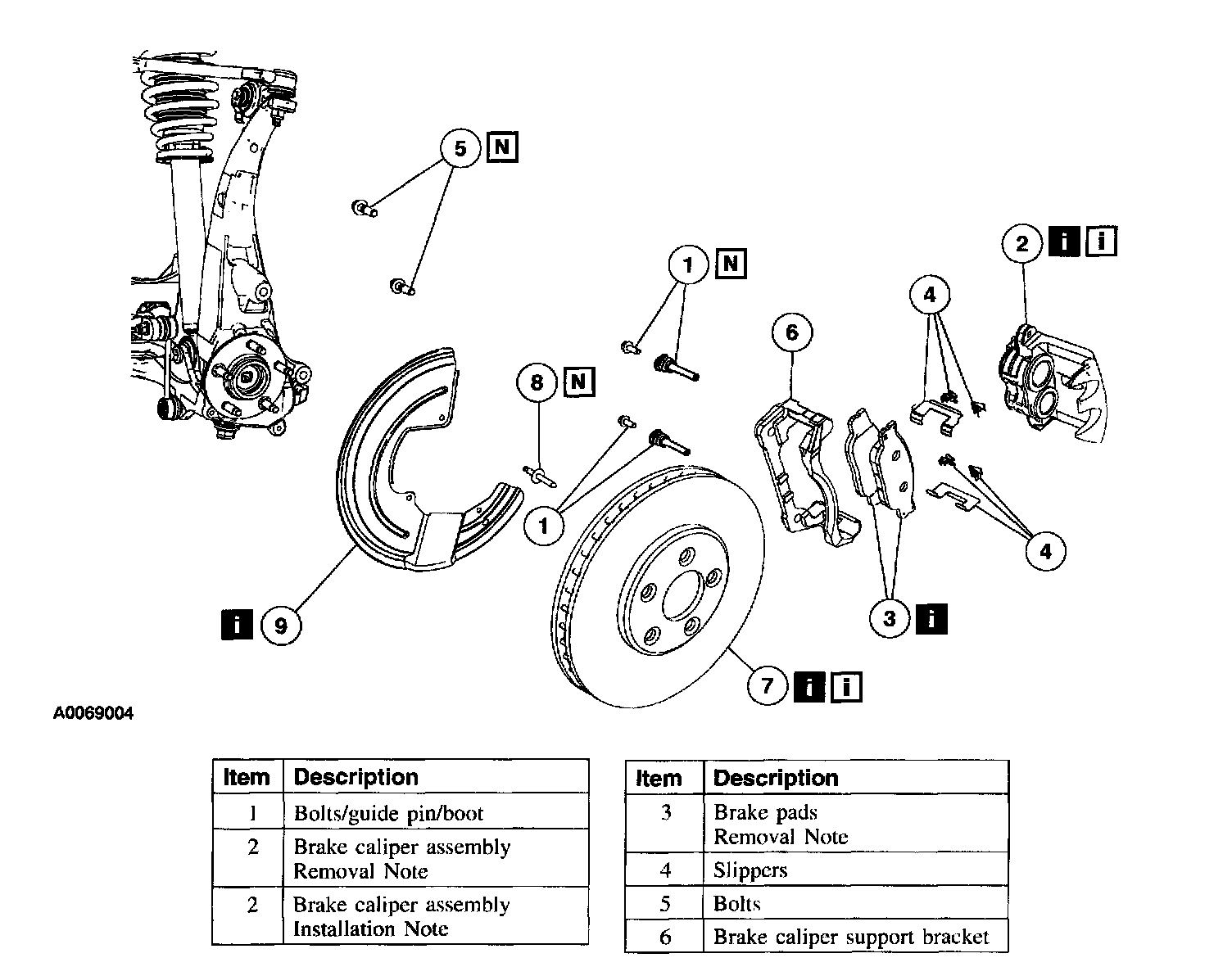

Front Disc BrakePart 1 Of 2:

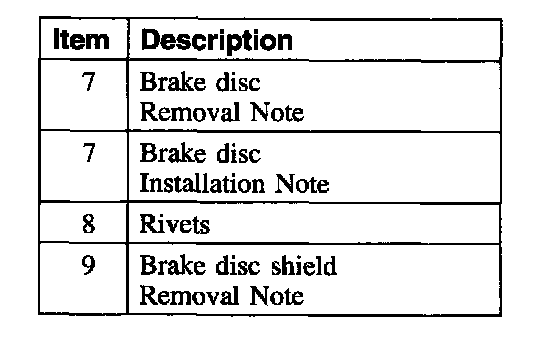

Part 2 Of 2:
1. Remove the components in the order indicated in the illustration and table.
2. To install, reverse the removal procedure.
Item 2: Brake Caliper Assembly Removal Note
1. Remove the caliper flow bolt and the two copper washers. Discard the copper washers.
Item 3: Brake Pads Removal Note
1. Compress the disc brake pistons.
^ Use a wood block or used brake pad to protect pistons and boots.
Item 7: Brake Disc Removal Note
1. If the brake disc will be reused, match-mark the hub and brake disc.
2. CAUTION: If it is necessary to machine the brake disc, only use a hub-mount brake lathe.
Measure the brake disc, and resurface as necessary. Install a new brake disc if beyond specification.
Item 9: Brake Disc Shield Removal Note
1. CAUTION: Use a 5.5 mm (0.22 inch) drill. Do not exceed past a 6.0 mm (0.24 inch) drill.
Drill out the rivets.
Item 7: Brake Disc Installation Note
1. Clean any rust or foreign material from the brake disc and wheel hub.
^ Use a suitable brake parts cleaner to clean the brake disc and hub surfaces.
^ Apply a suitable anti-seize lubricant to the hub flange.
Item 2: Brake Caliper Installation Note
1. Install new copper washers.
