Connector Circuit Reference

Connector Reference and Terminal Readings





Brake Fluid Level Switch-C124

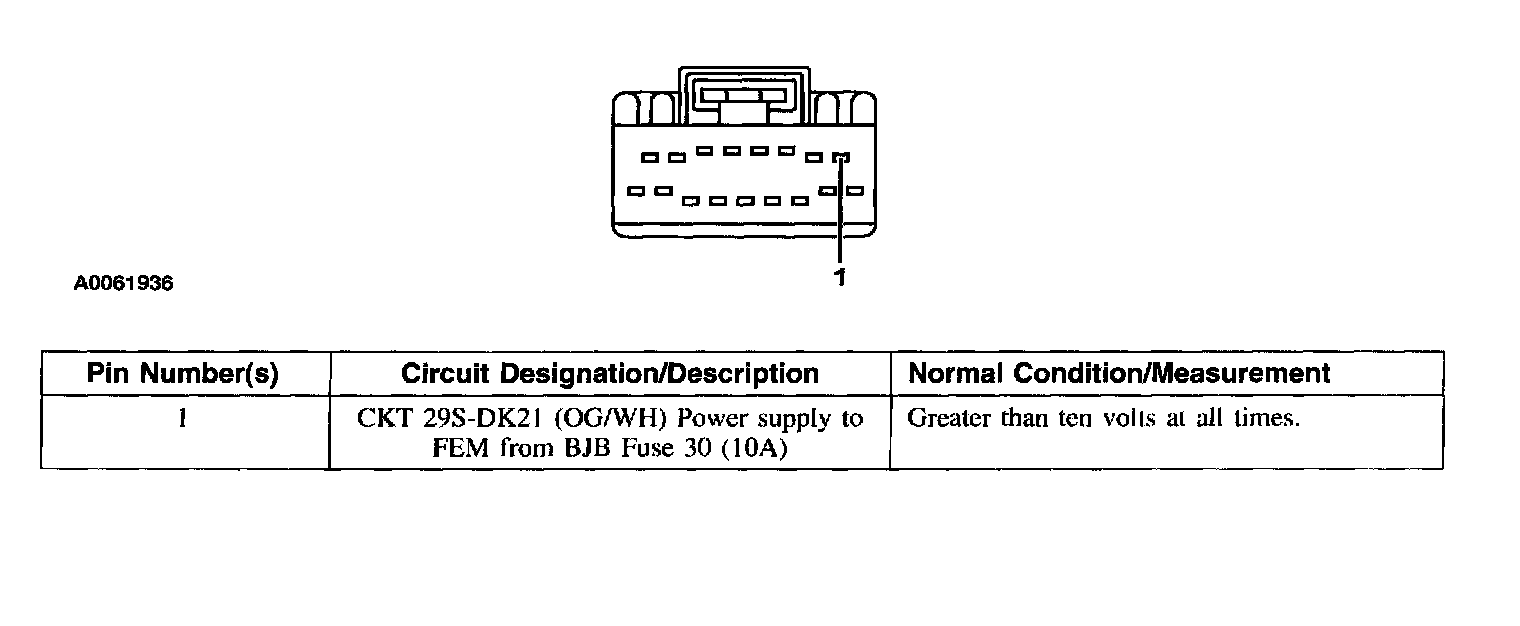

Front Electronic Module (FEM)-C201a

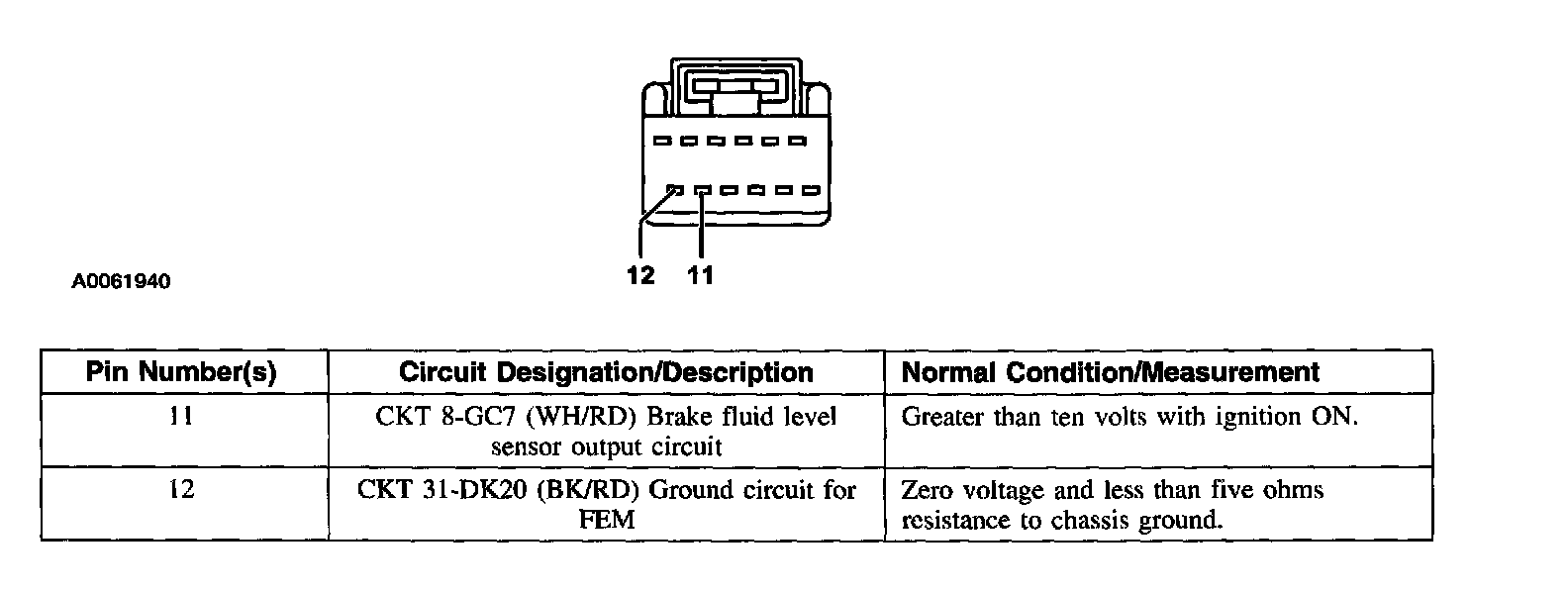

Front Electronic Module (FEM)-C201c
