Control Assembly: Service and Repair

CLIMATE CONTROL ASSEMBLY

REMOVAL

NOTE: If installing a new climate control assembly (DATC module), the new module must be configured for the vehicle.

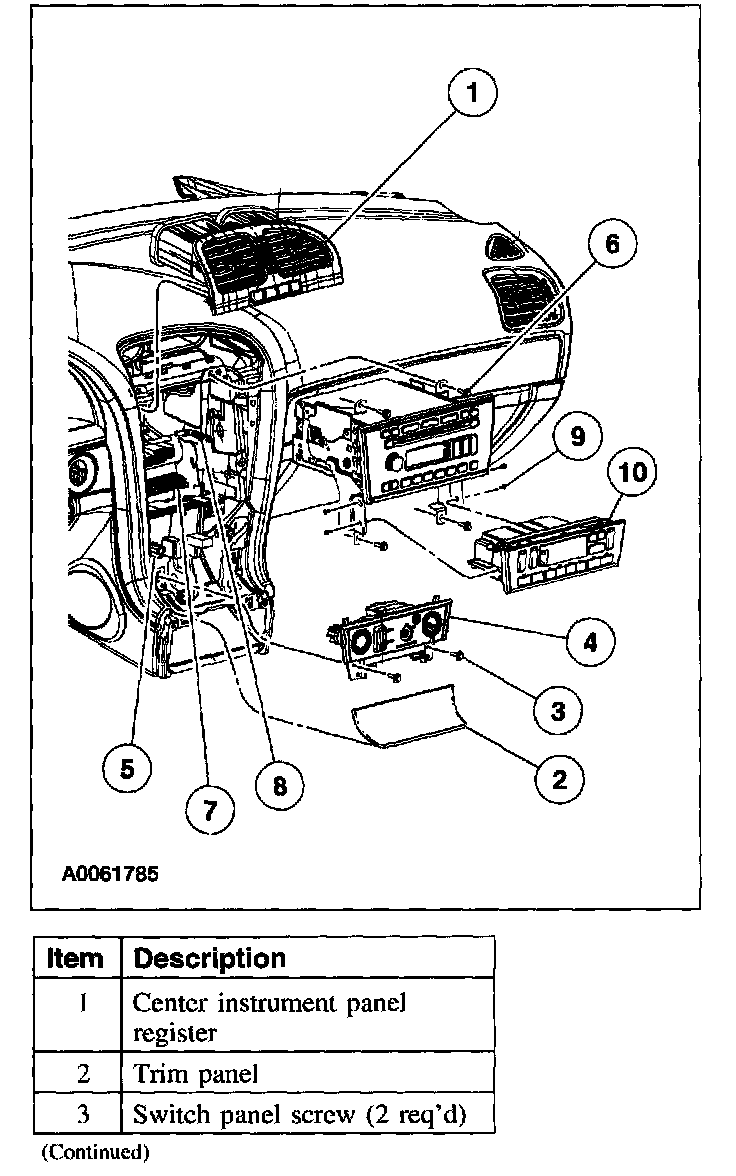

Part 1:

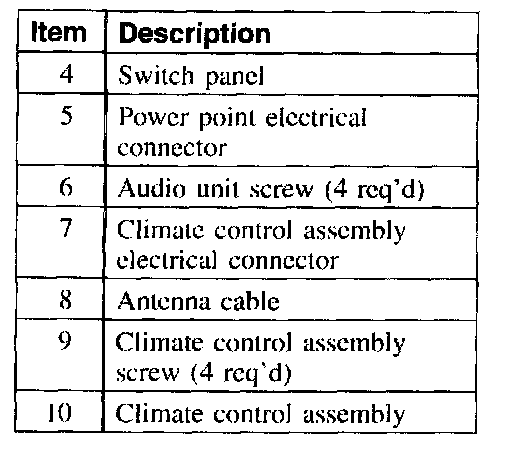

Part 2:

1. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
