Home
>>
Ford
>>
2003
>>
Thunderbird V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
System Precheck
System Precheck

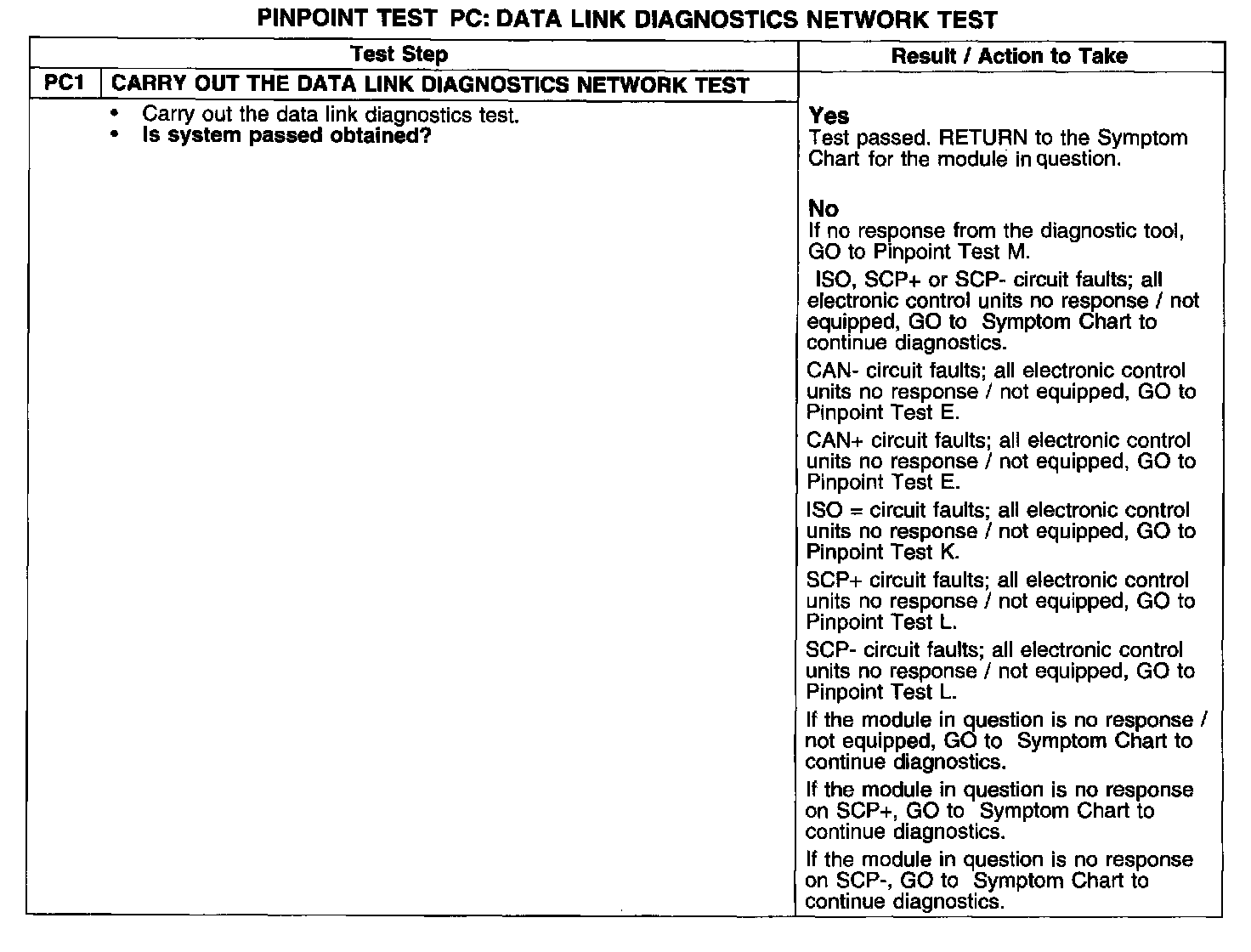

PINPOINT TEST PC: DATA LINK DIAGNOSTICS NETWORK TEST
Test PC1:
