Home >> Ford >> 2003 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Band/Clutch Application Charts

Band/Clutch Application Charts

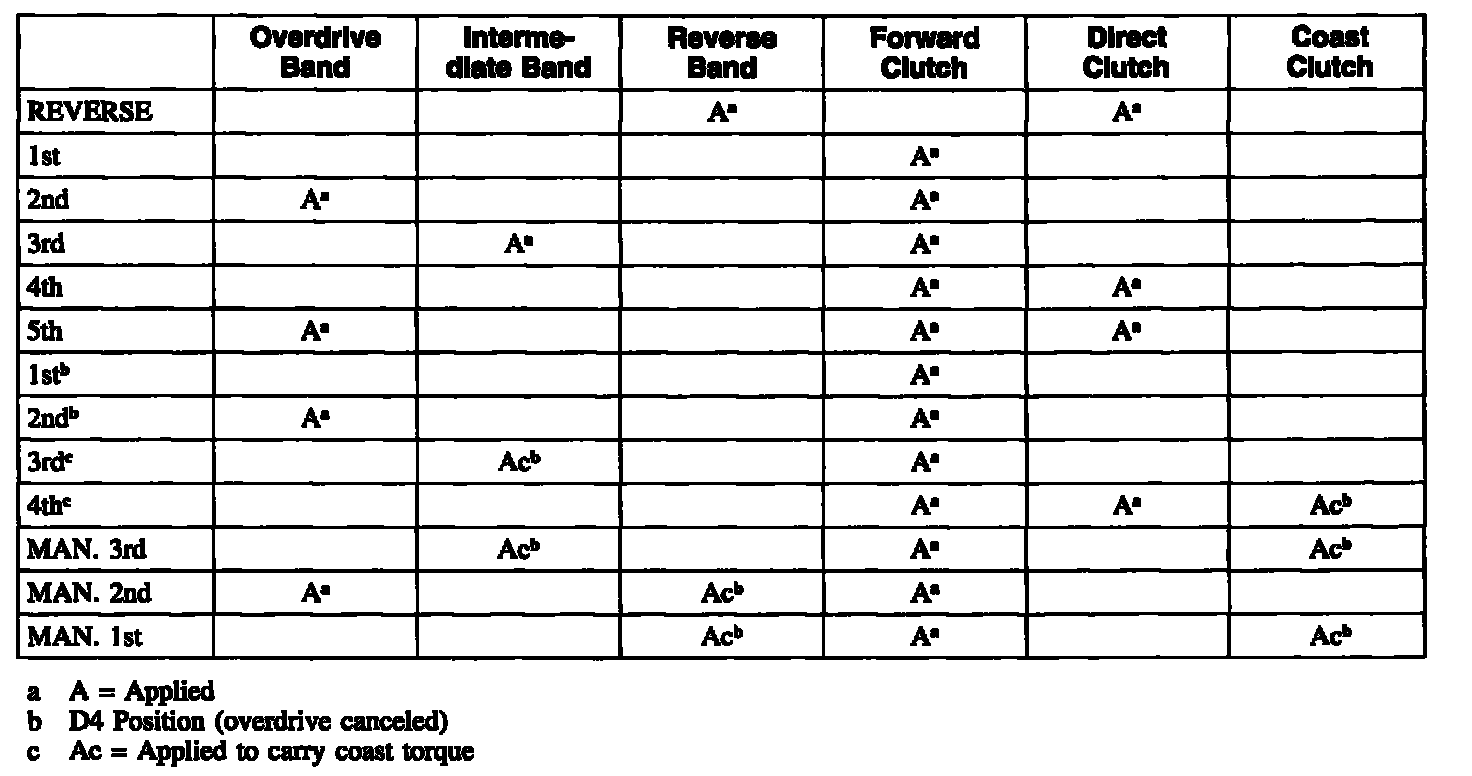

Band/Clutch Application Chart A

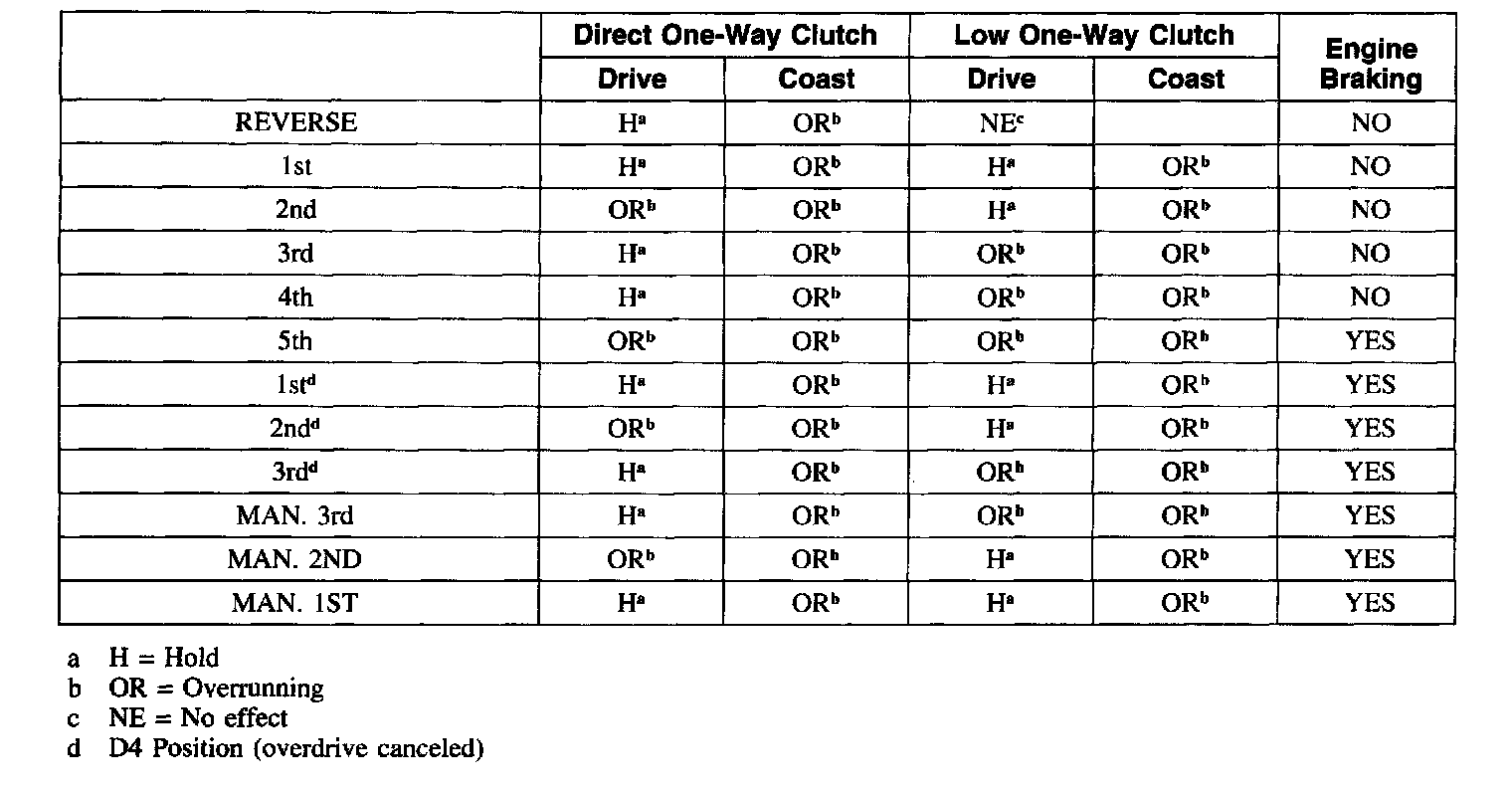

Band/Clutch Application Chart B
