Crown Victoria V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Suspension Control ( Automatic - Electronic )
>>
Suspension Control Module
Suspension Control Module

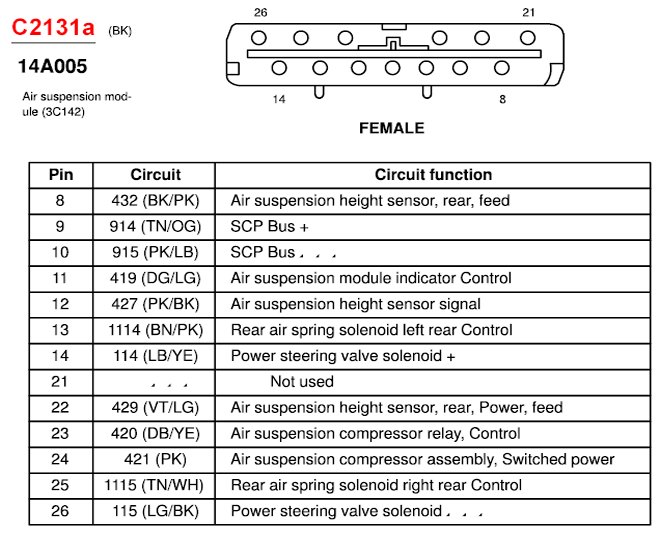

C2131a:

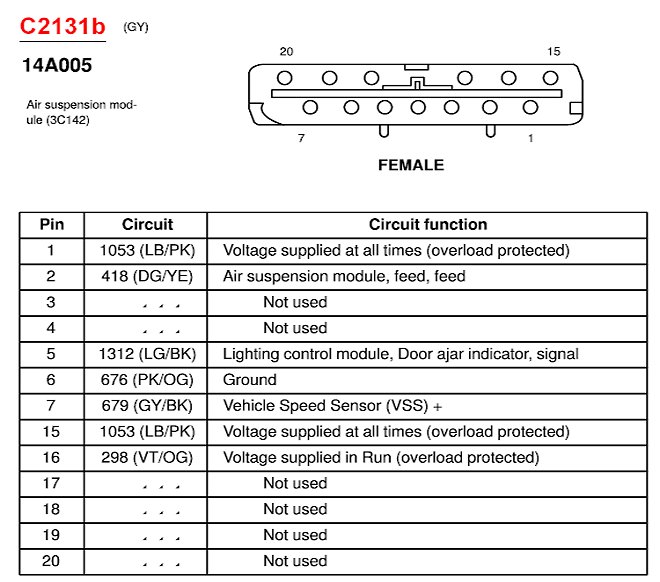

C2131b:
