Home >> Ford >> 2004 >> Focus L4-2.0L SOHC VIN P >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> General Specifications >> Cylinder Head and Valve Train

Cylinder Head and Valve Train

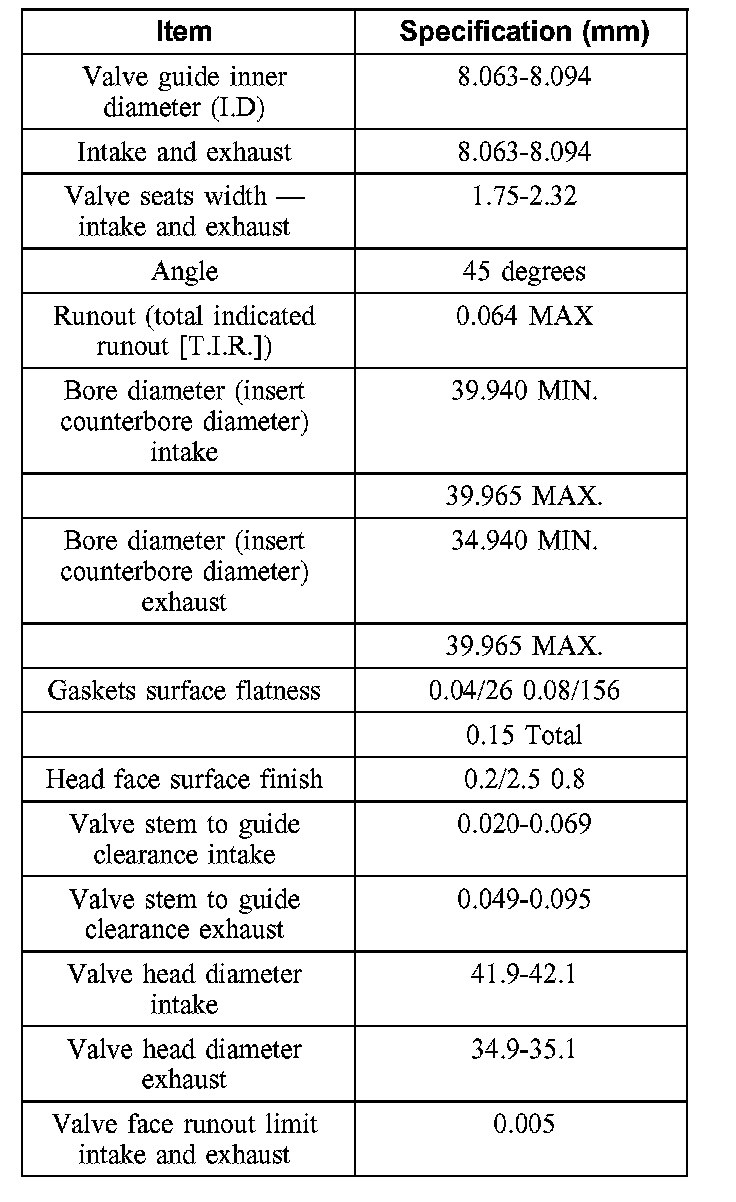

Cylinder Head and Valve Train:

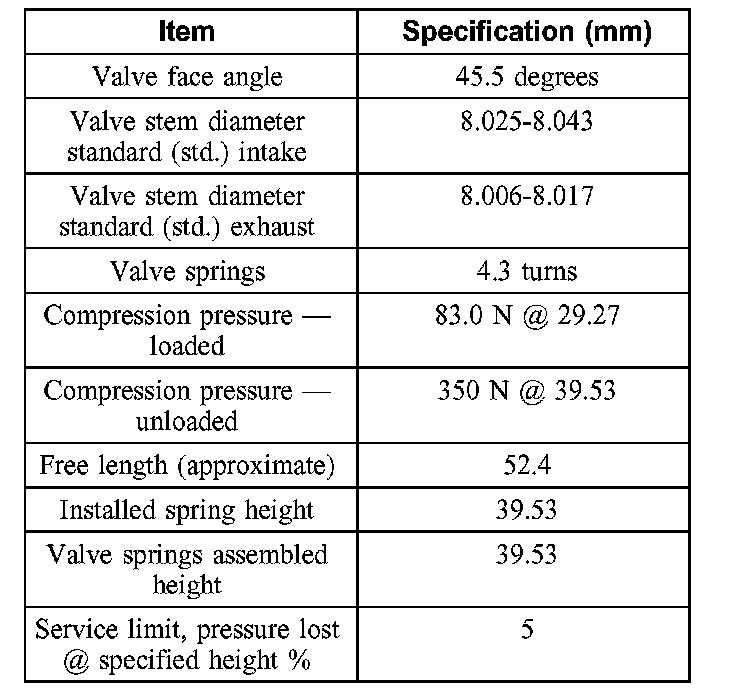

Cylinder Head and Valve Train (continued):
