Air Diverter Valve: Service and Repair

SECONDARY AIR INJECTION (AIR) VALVE

REMOVAL







1. Disconnect the secondary air injection (AIR) inlet tube from the valve.

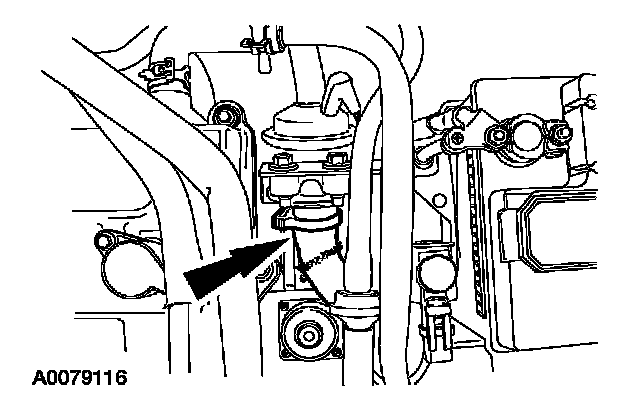

2. Disconnect the AIR outlet tube from the valve.

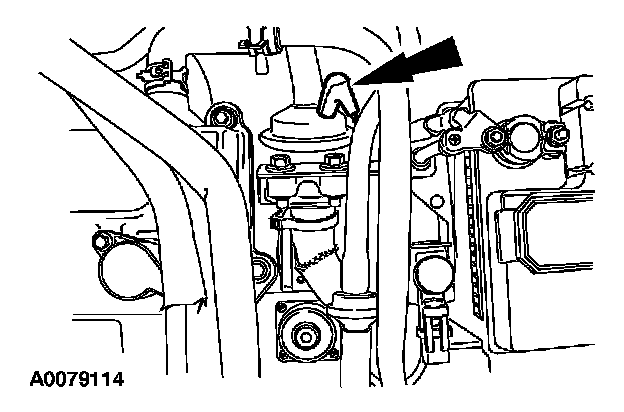

3. Disconnect the vacuum line from the AIR valve.

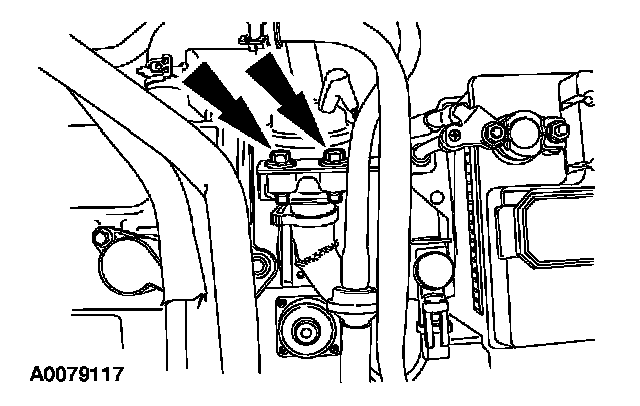

4. Remove the two mounting screws and the valve.

INSTALLATION
1. To install, reverse the removal procedure.
