Intake Manifold

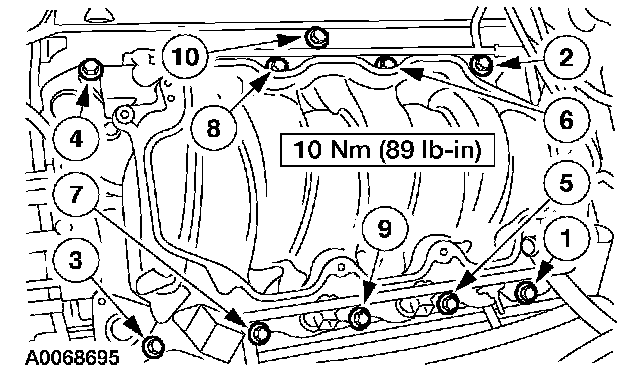

Lower Intake Manifold bolts 10 Nm (89 in.lbs.)

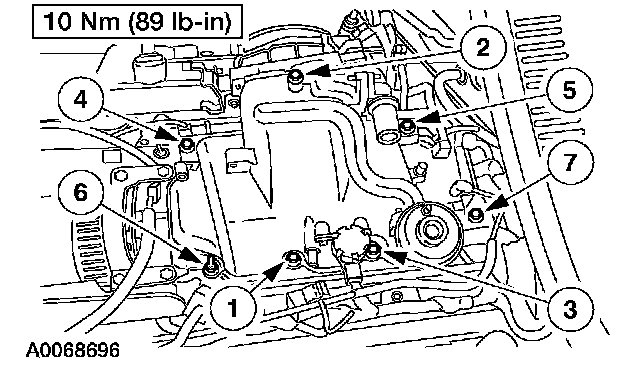

Upper Intake Manifold bolts 10 Nm (89 in.lbs.)
