Air Register: Service and Repair

DRIVER SIDE REGISTER

REMOVAL
1. Remove the instrument cluster finish panel.







2. Remove the driver side register.

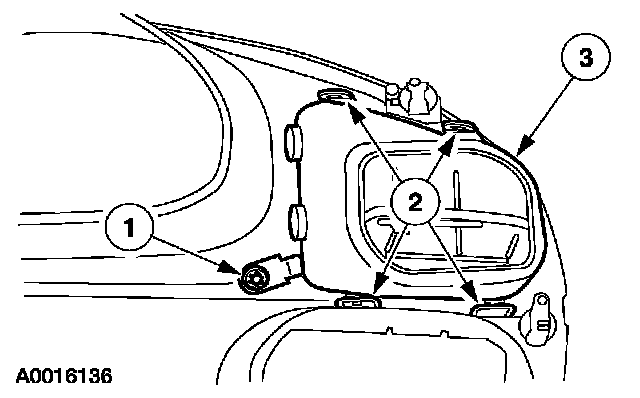

1 Remove the screw.
2 Disengage the tabs.
3 Remove the driver side register.

INSTALLATION
1. To install, reverse the removal procedure.


CENTER REGISTERS

REMOVAL

NOTE: The following procedure is for removal and installation of the center register LH or RH vanes/barrel assembly only. The center register housing is supplied only with the instrument cluster finish panel as an assembly.







1. NOTE: Use a shop cloth or equivalent to prevent damage to the instrument cluster finish panel when removing the vanes/barrel assembly.

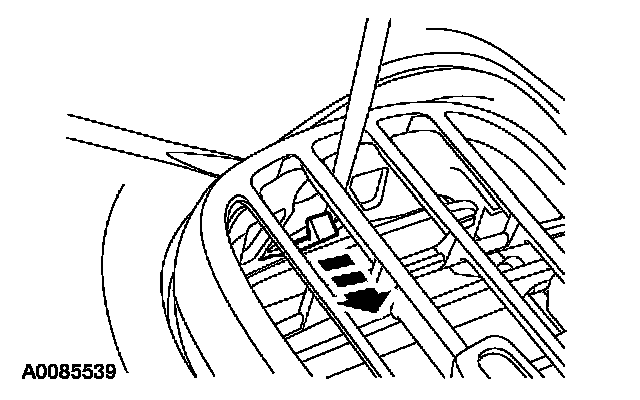

Gently pry inward to disengage the retaining tab and pry the vanes/barrel assembly out using a small screwdriver or equivalent.

INSTALLATION
1. Carefully push the vanes/barrel assembly into the center register housing until it clips into place.
2. Operate the vanes/barrel assembly in all directions to verify correct installation.

PASSENGER SIDE REGISTER

REMOVAL

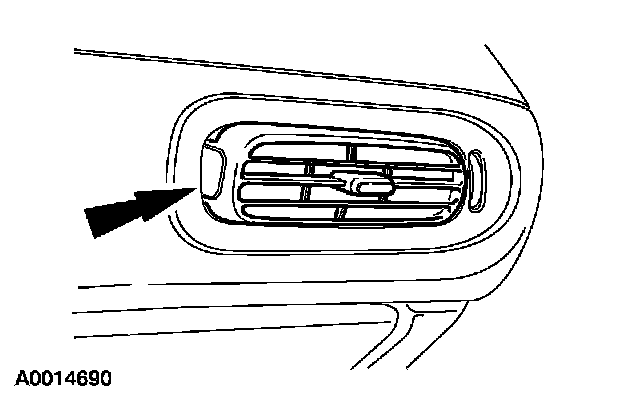

1. Carefully pry out the left side of the register barrel. Remove the register barrel.

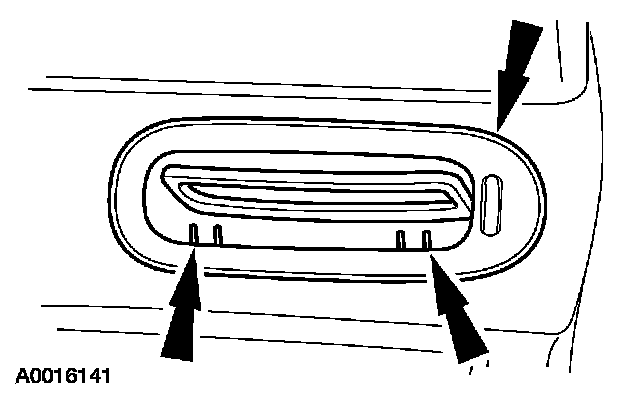

2. Disengage the four tabs. Remove the register housing.

INSTALLATION
1. To install, reverse the removal procedure.
