Air Register: Service and Repair

DRIVER SIDE REGISTER

Removal and Installation

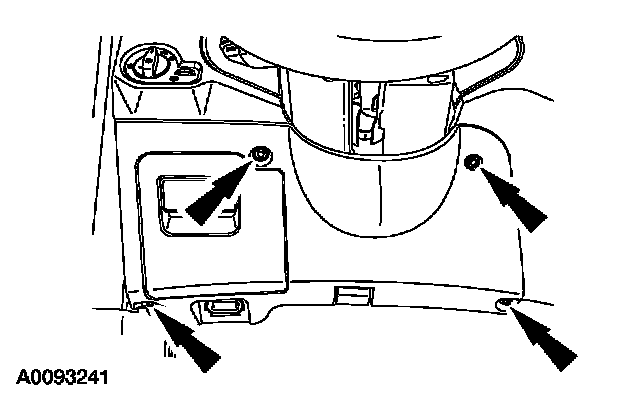

1. Remove the four bolts and position aside the lower steering column cover.

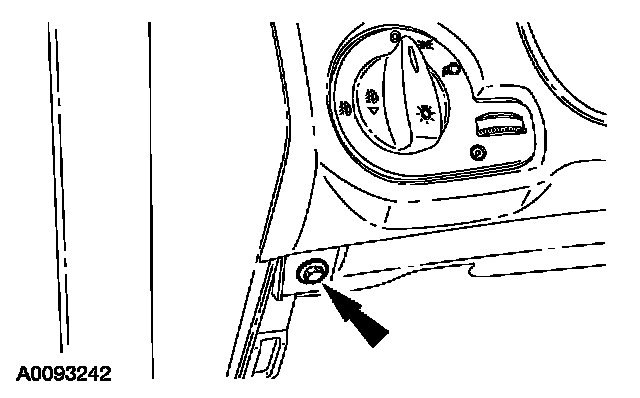

2. Remove the screw and position aside the instrument cluster finish panel.

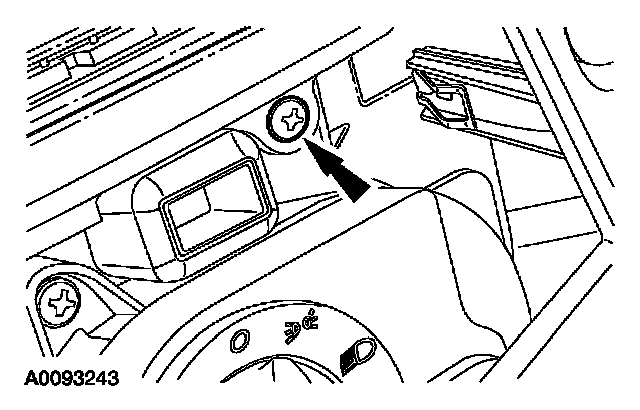

3. Remove the screw and the driver side register.
4. To install, reverse the removal procedure
