Home >> Ford >> 2005 >> Mustang V6-4.0L VIN N >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Cluster >> Connector Circuit Reference >> Remote Fuel Sender

Remote Fuel Sender

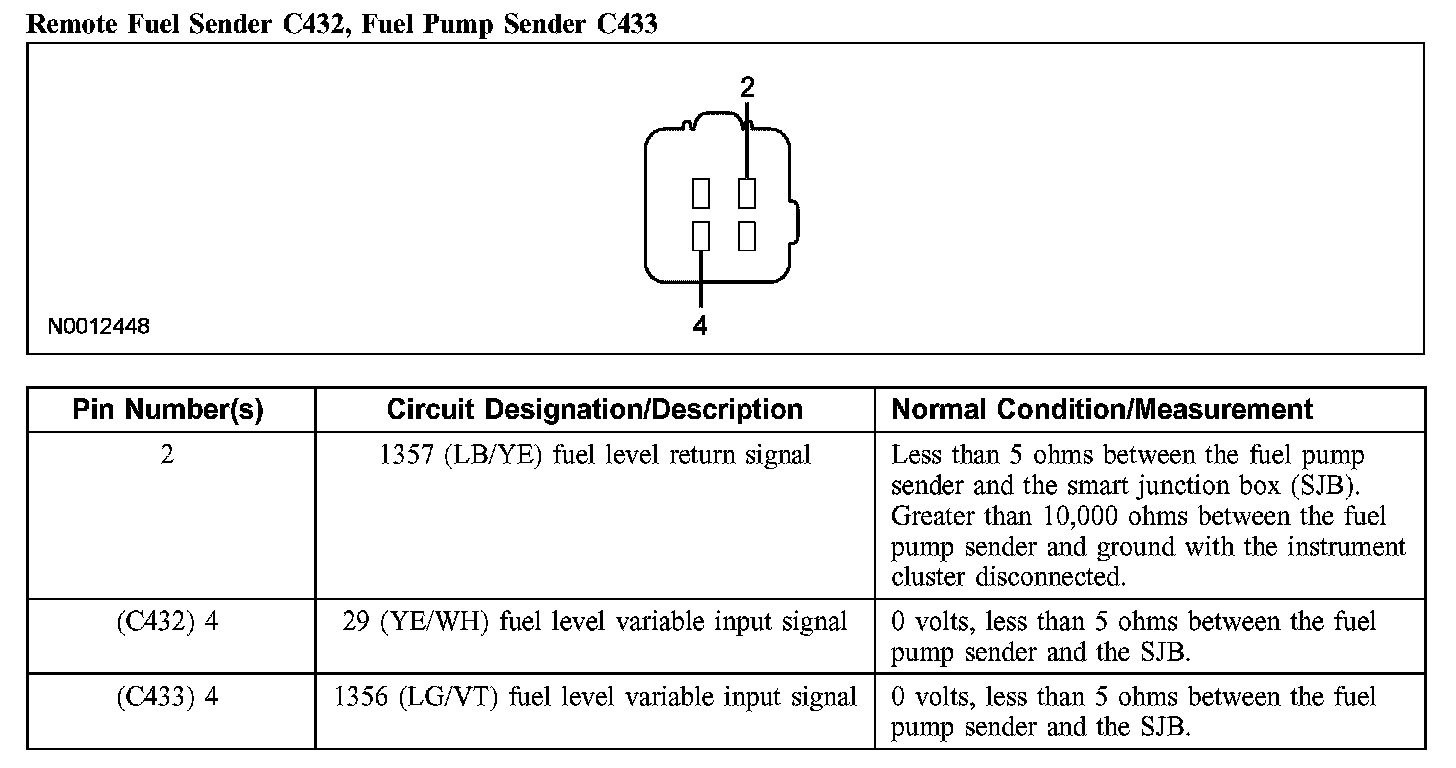

Remote Fuel Sender C432, Fuel Pump Sender C433:
