Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2005
>>
Mustang V8-4.6L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>

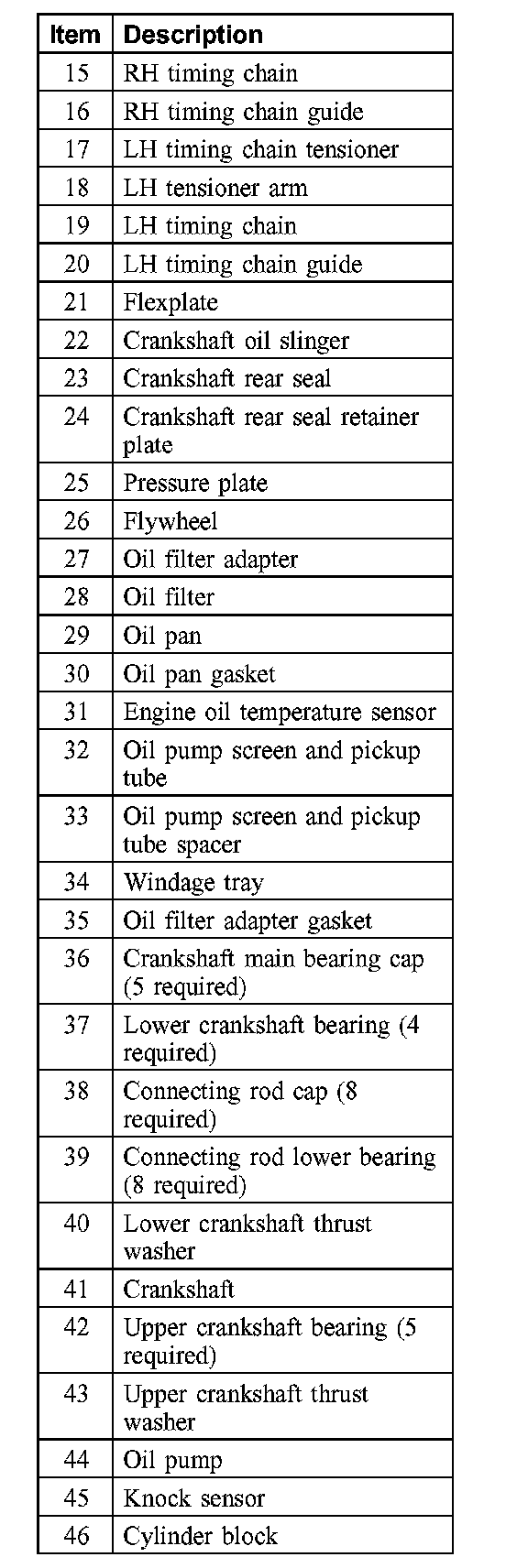

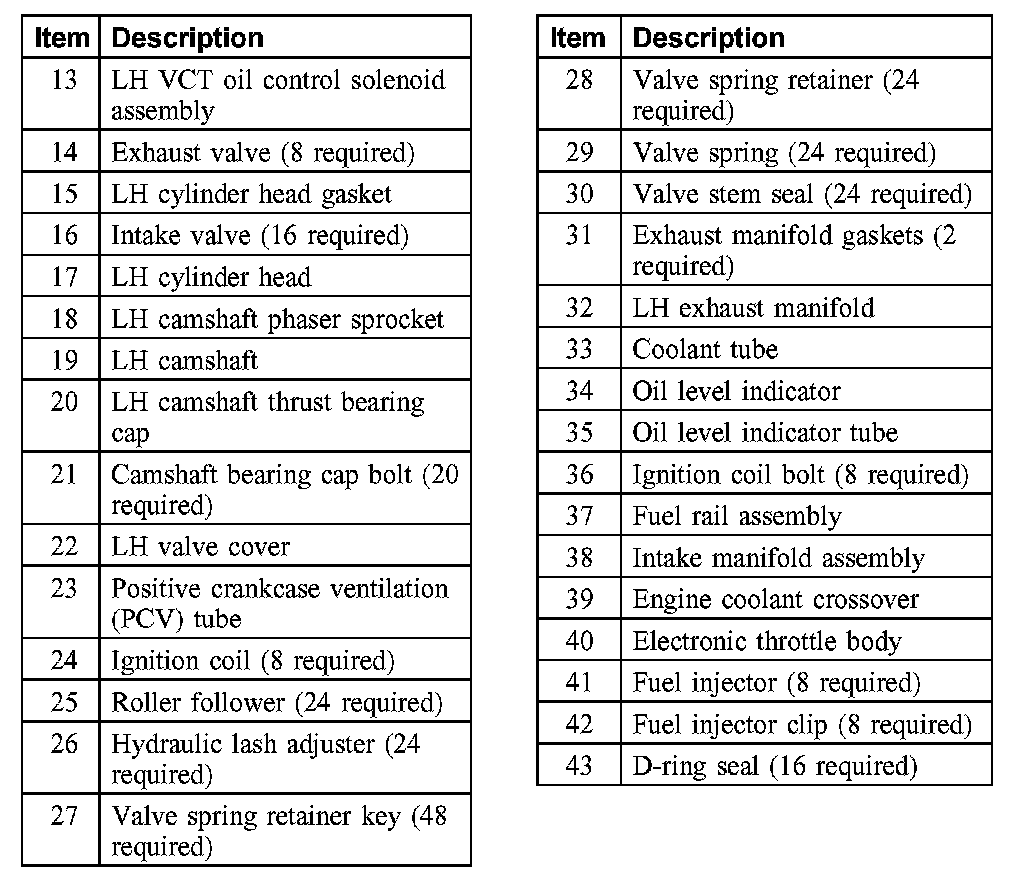

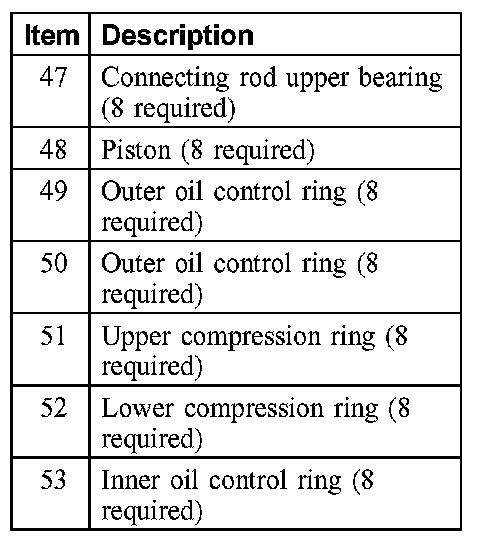

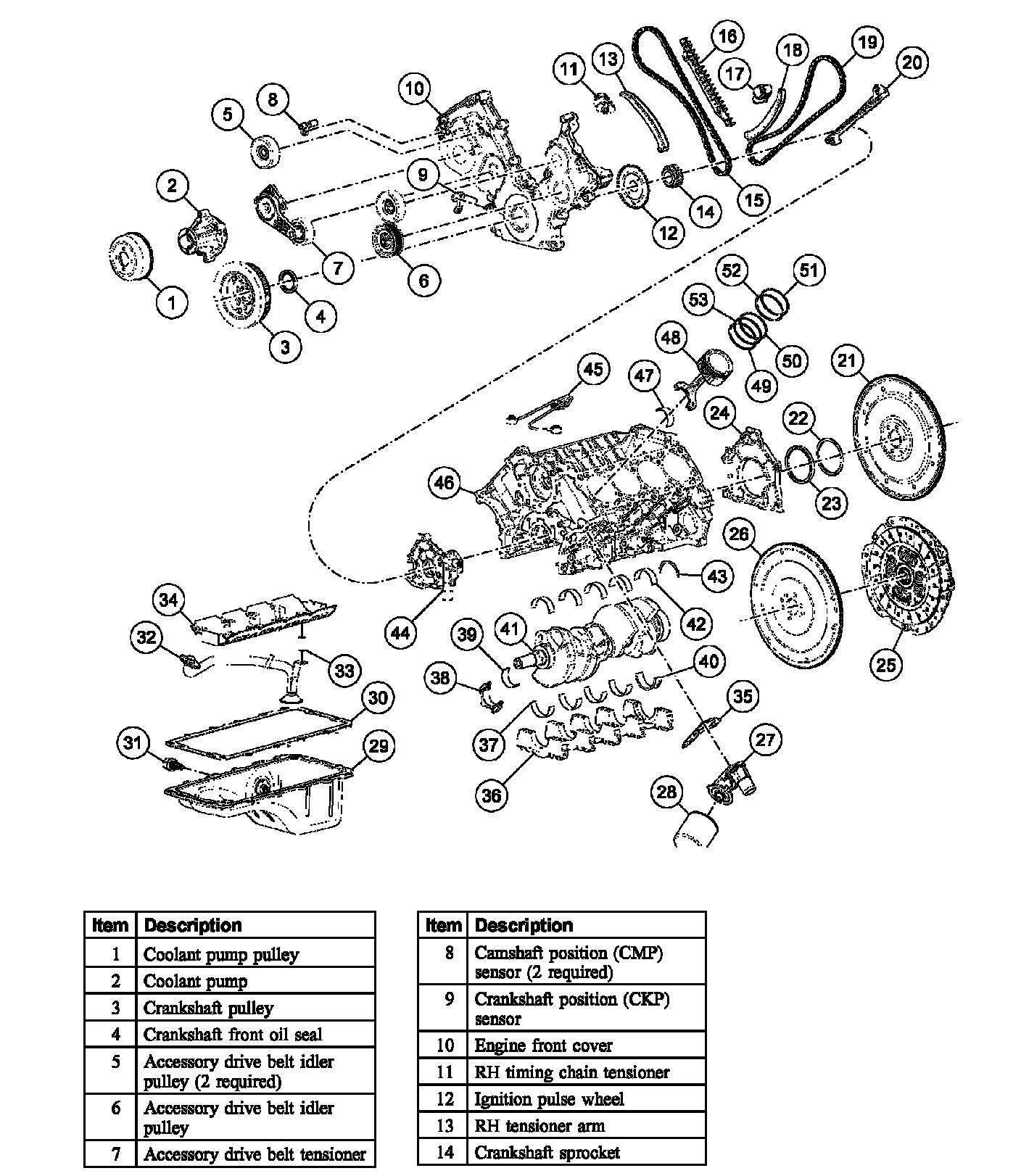

Exploded Views
>>
Engine
>>
System Diagram
>>
Engine Component View
Engine Component View
Engine Component View
Engine Upper End
Engine Lower end
