A/C Dual Function Pressure Switch C1078
A/C Dual Function Pressure Switch C1078

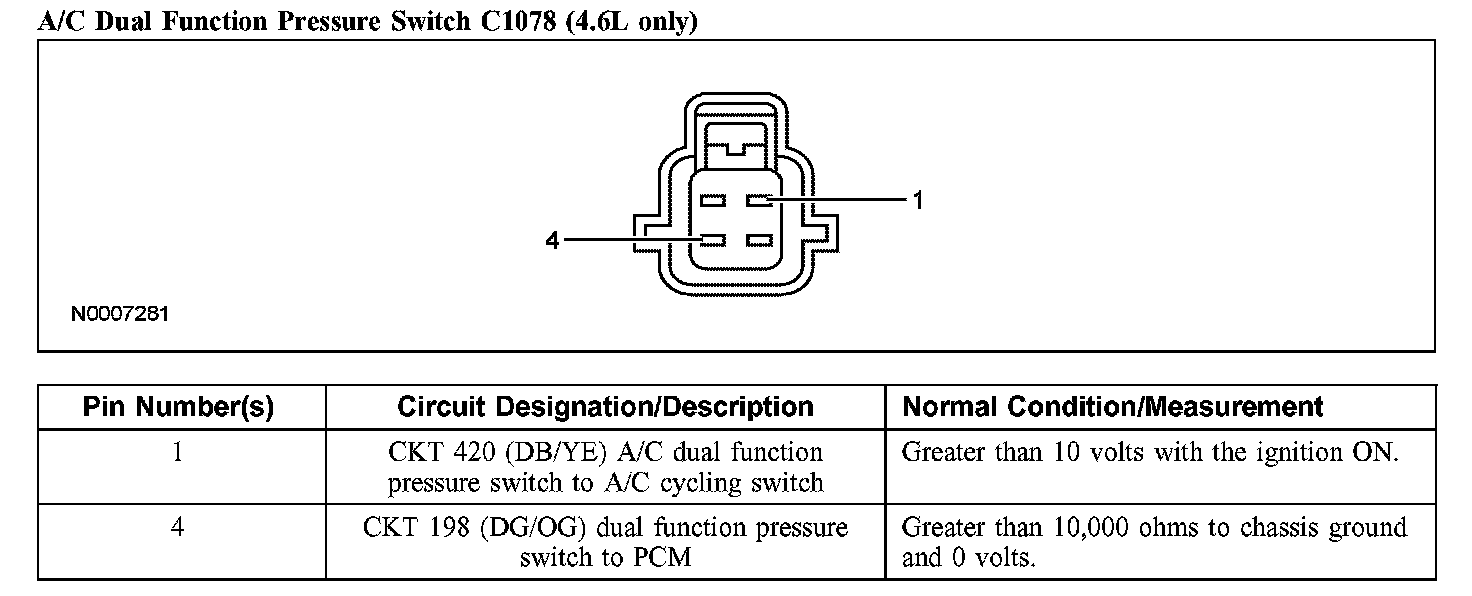

A/C Dual Function Pressure Switch C1078 (4.6L Only):
