Passenger Door Lock Control Switch C605

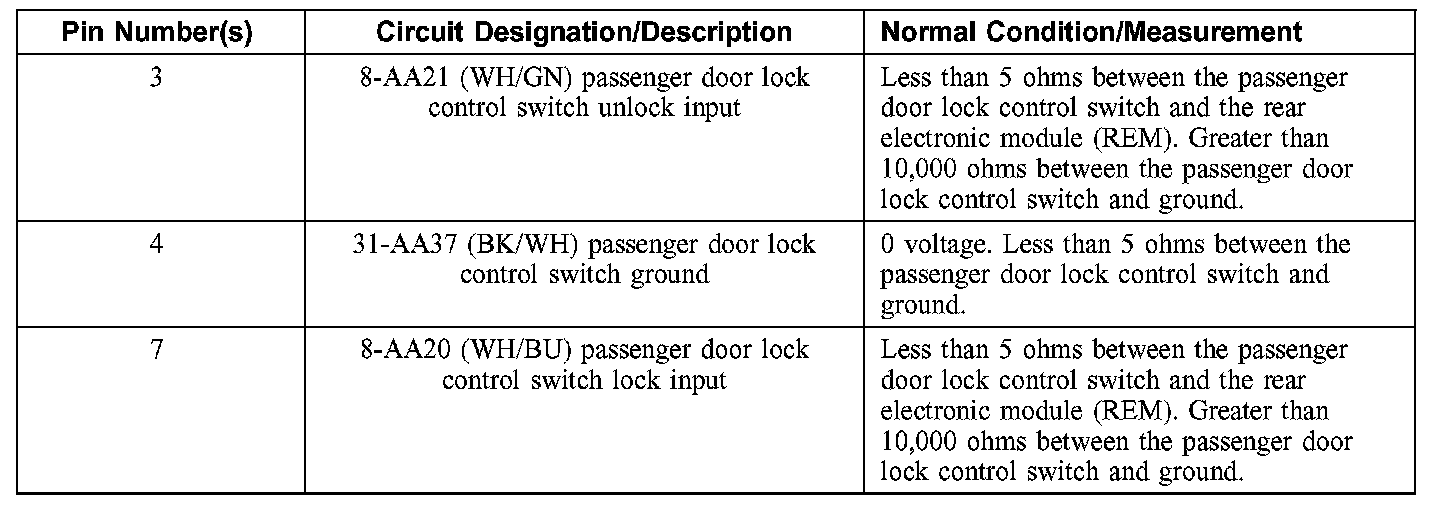

Passenger Door Lock Control Switch C605 (Part 1):

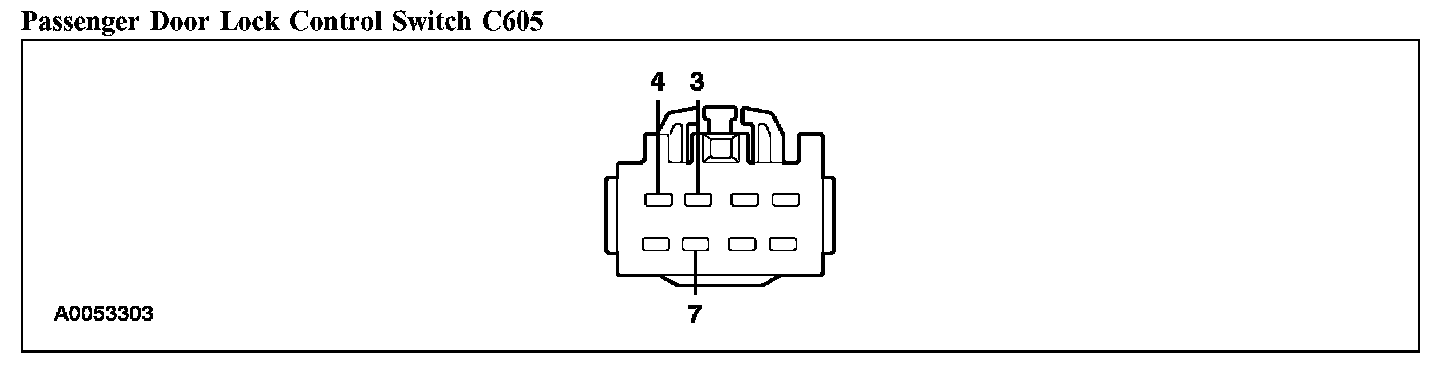

Passenger Door Lock Control Switch C605 (Part 2):
