Thunderbird V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Flex Plate
Flex Plate

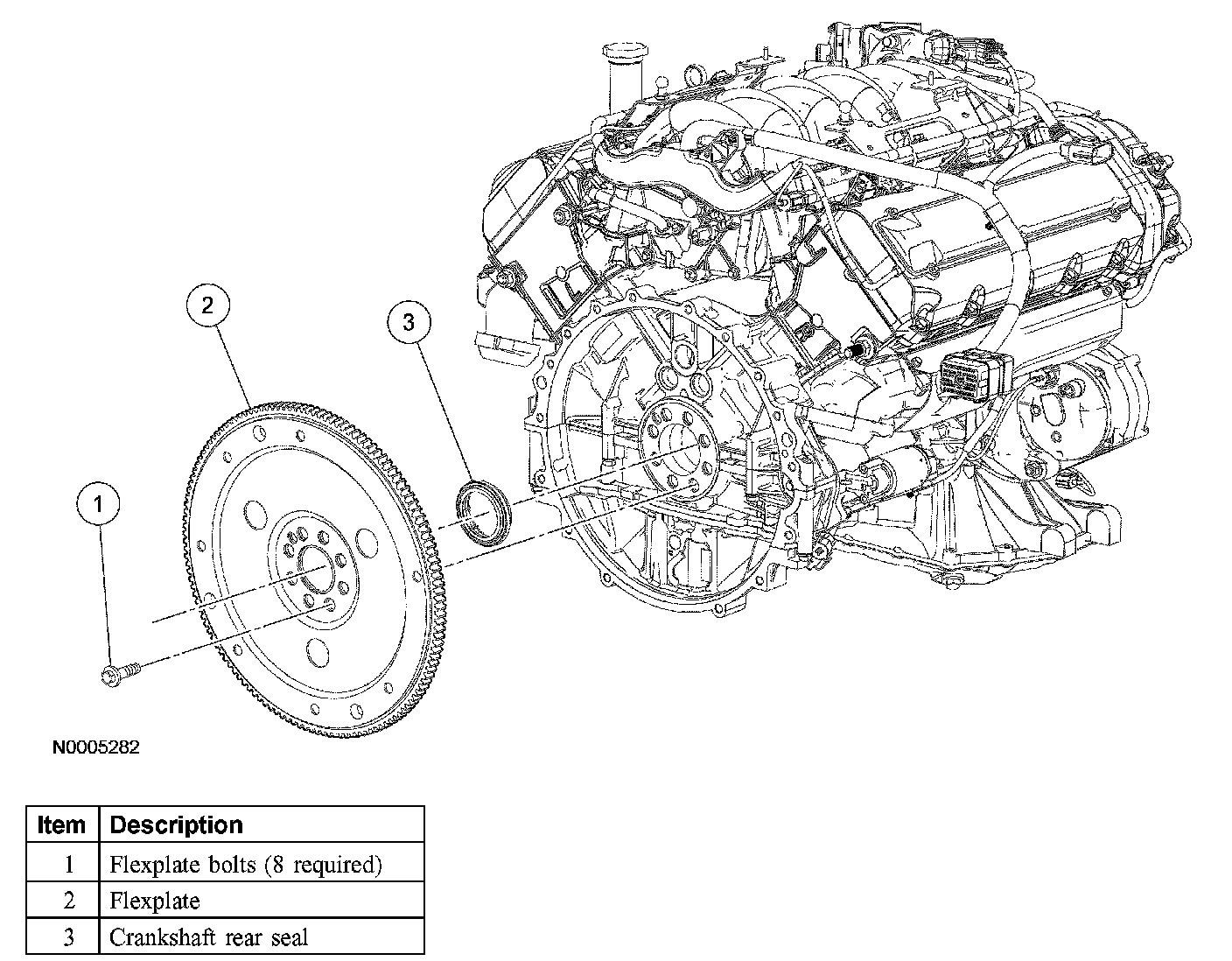

Lower End Components - Exploded View, Flexplate and Crankshaft Rear Oil Seal
