Oil Temperature Sensor For ECM
>>
Locations
Oil Temperature Sensor For ECM: Locations

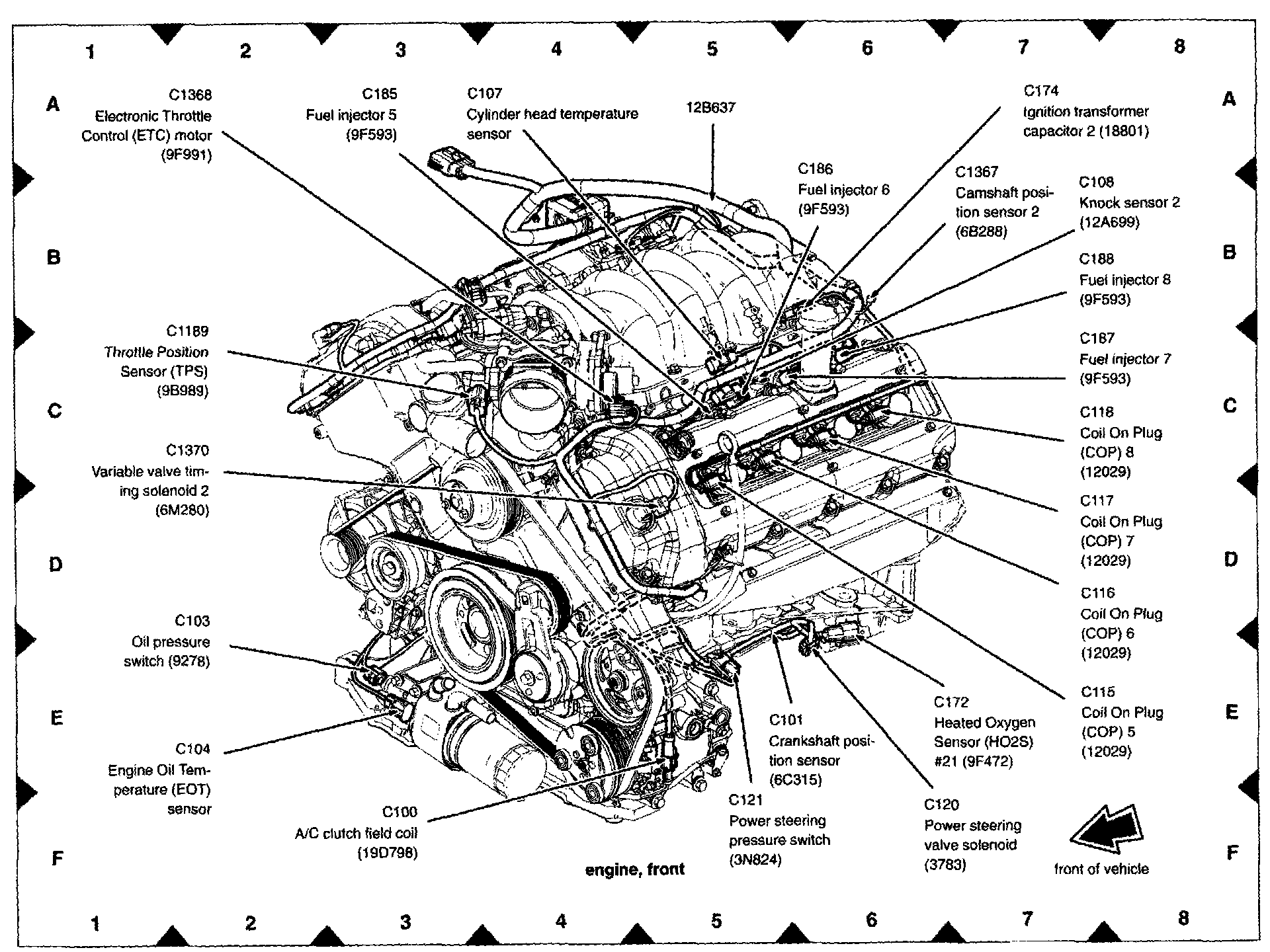

View 151-12 (Engine, Front):
